Tire Pressure Monitoring System

DTC 44 TRANSMITTER 4 FUNCTION CODE ABNORMAL

DTC DETECTING CONDITION:
Unexpected function codes received from each transmitter.


TROUBLE SYMPTOM:
Tire pressure warning light blinks 25 times and then illuminates.

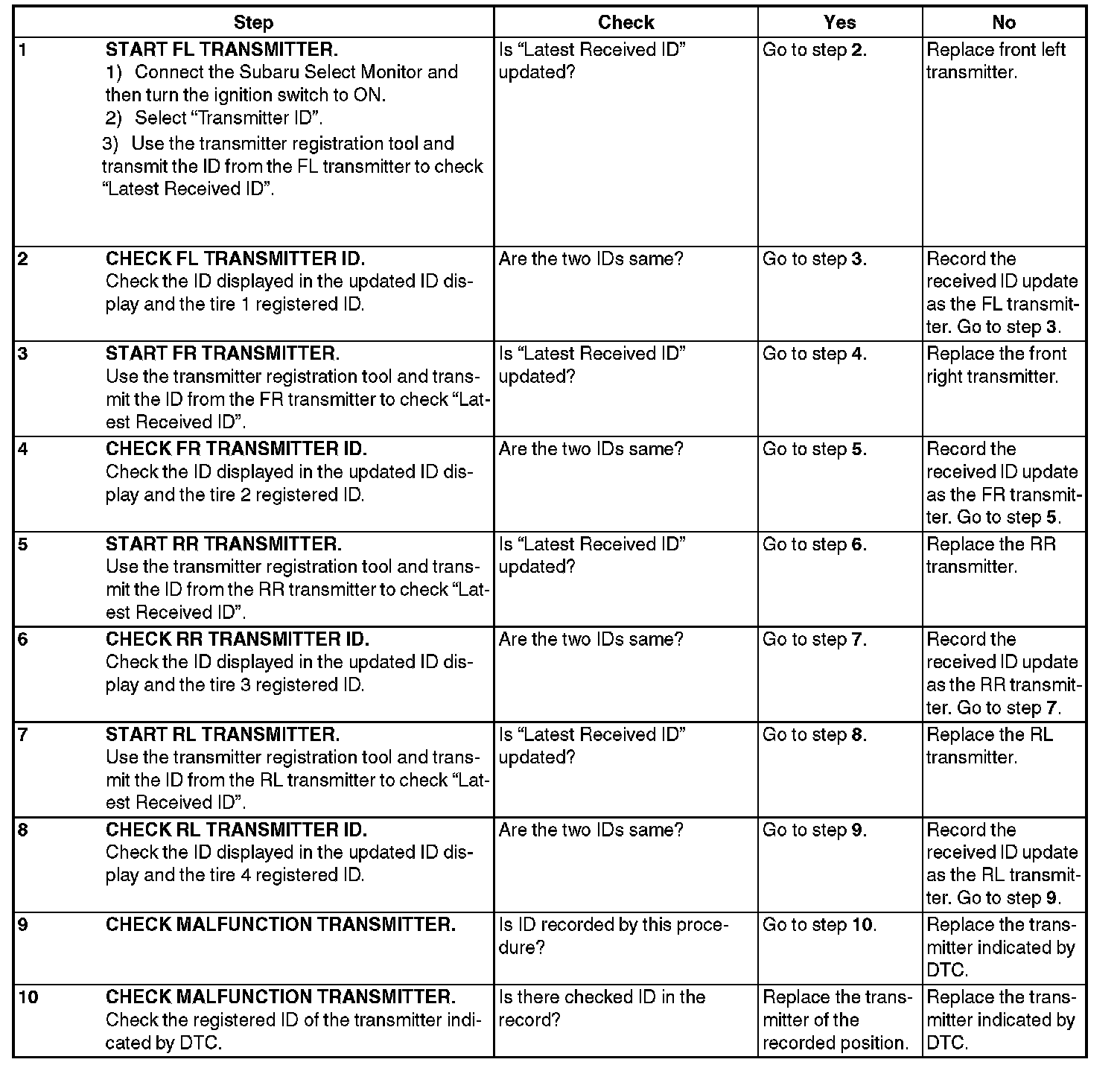

Step 1-10:
