Tire Pressure Monitoring System

DTC 34 TRANSMITTER 4 PRESSURE DATA ABNORMAL

DTC DETECTING CONDITION:
- When comparing the data from each transmitter to the previous data, the change is large.
- The pressure exceeds what the transmitter can measure. (Excessive pressure)

TROUBLE SYMPTOM:
Tire pressure warning light blinks 25 times and then illuminates.

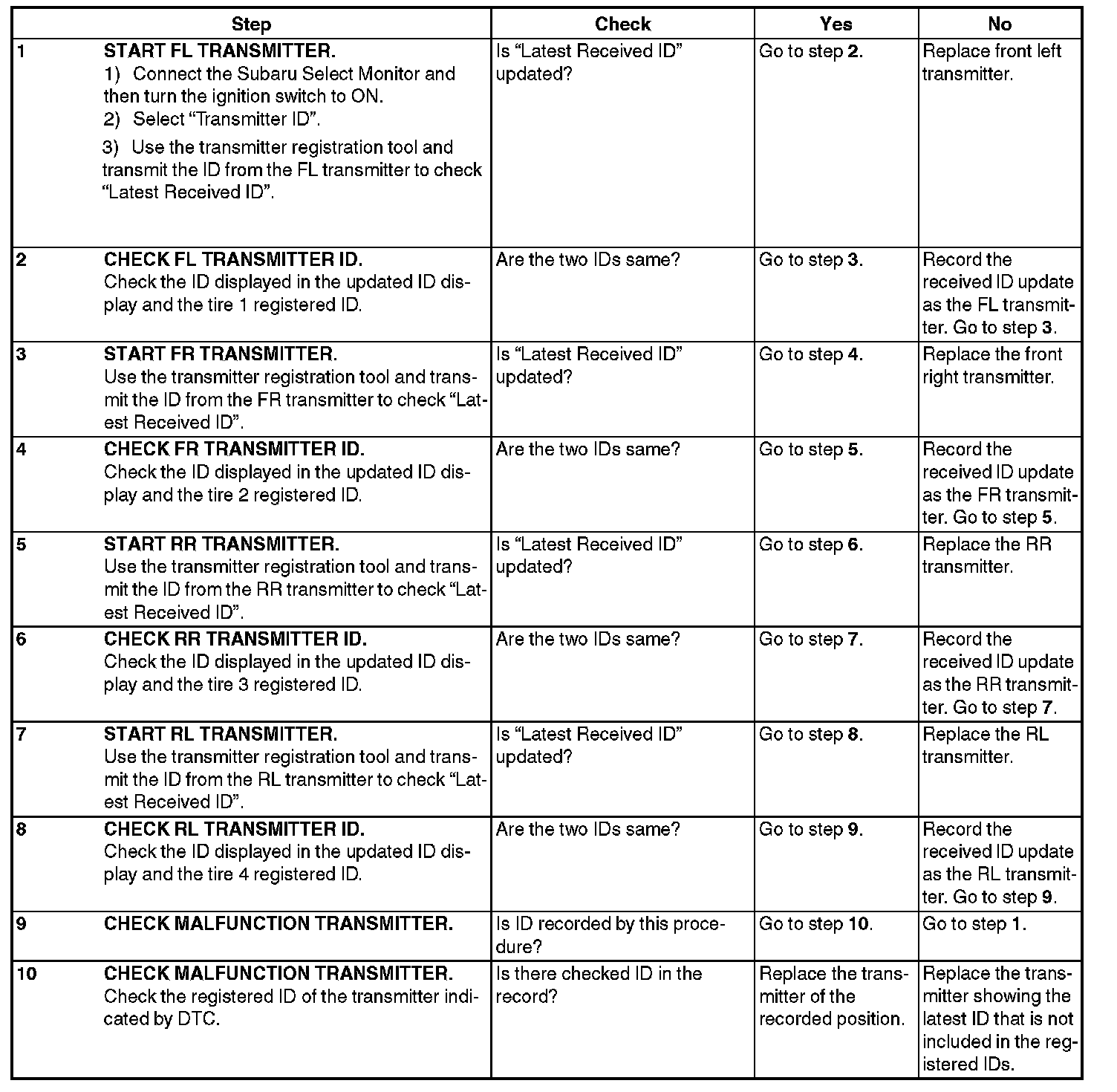

Step 1-10:

CAUTION: When driving vehicle to perform driving test, there should be always 2 persons (driver and checker) to check.
