C0119

DTC C0119 G SENSOR OUTPUT VOLTAGE MALFUNCTION

DTC DETECTING CONDITION:
Defective G sensor

TROUBLE SYMPTOM:
ABS does not operate.

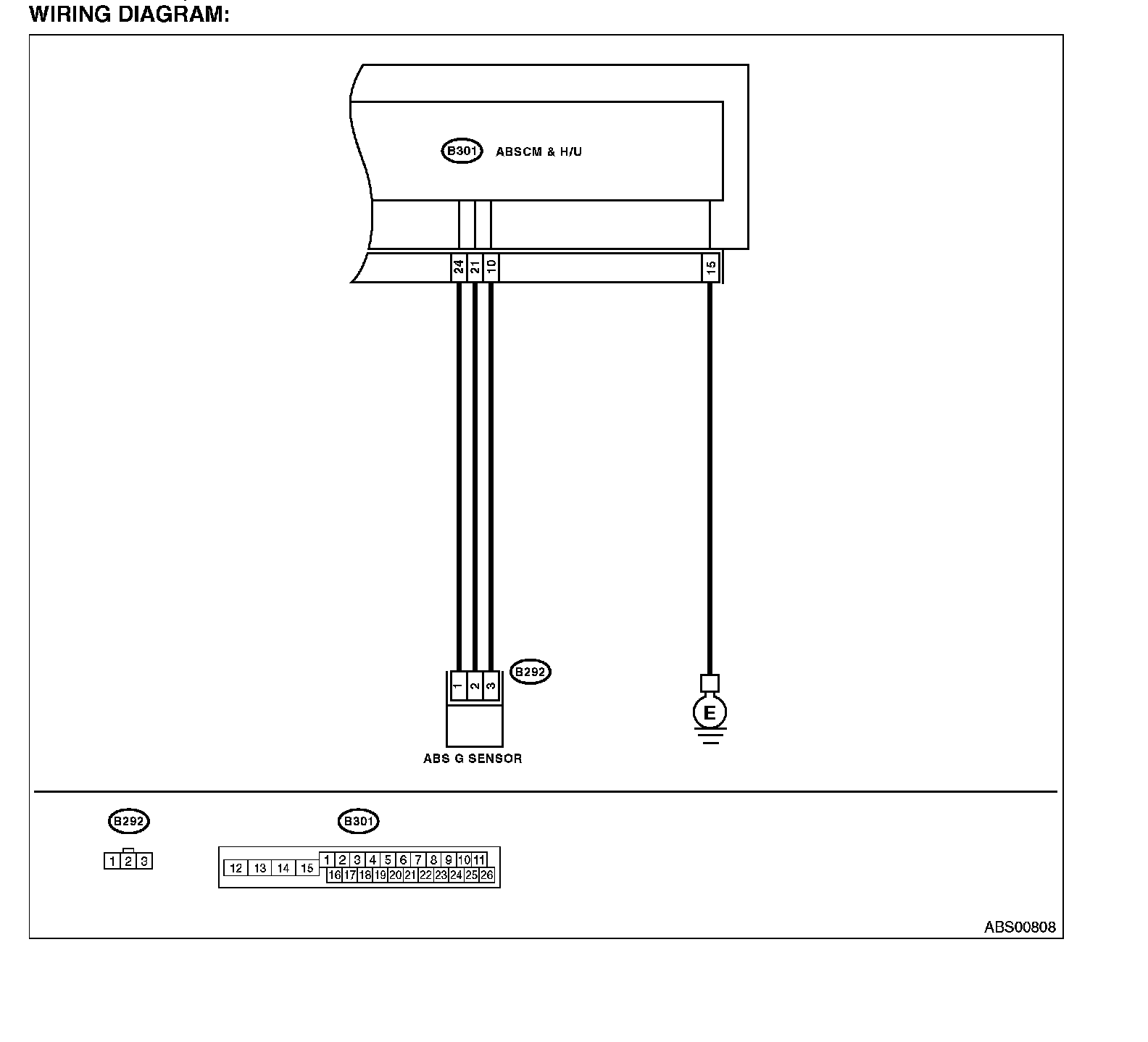

WIRING DIAGRAM:

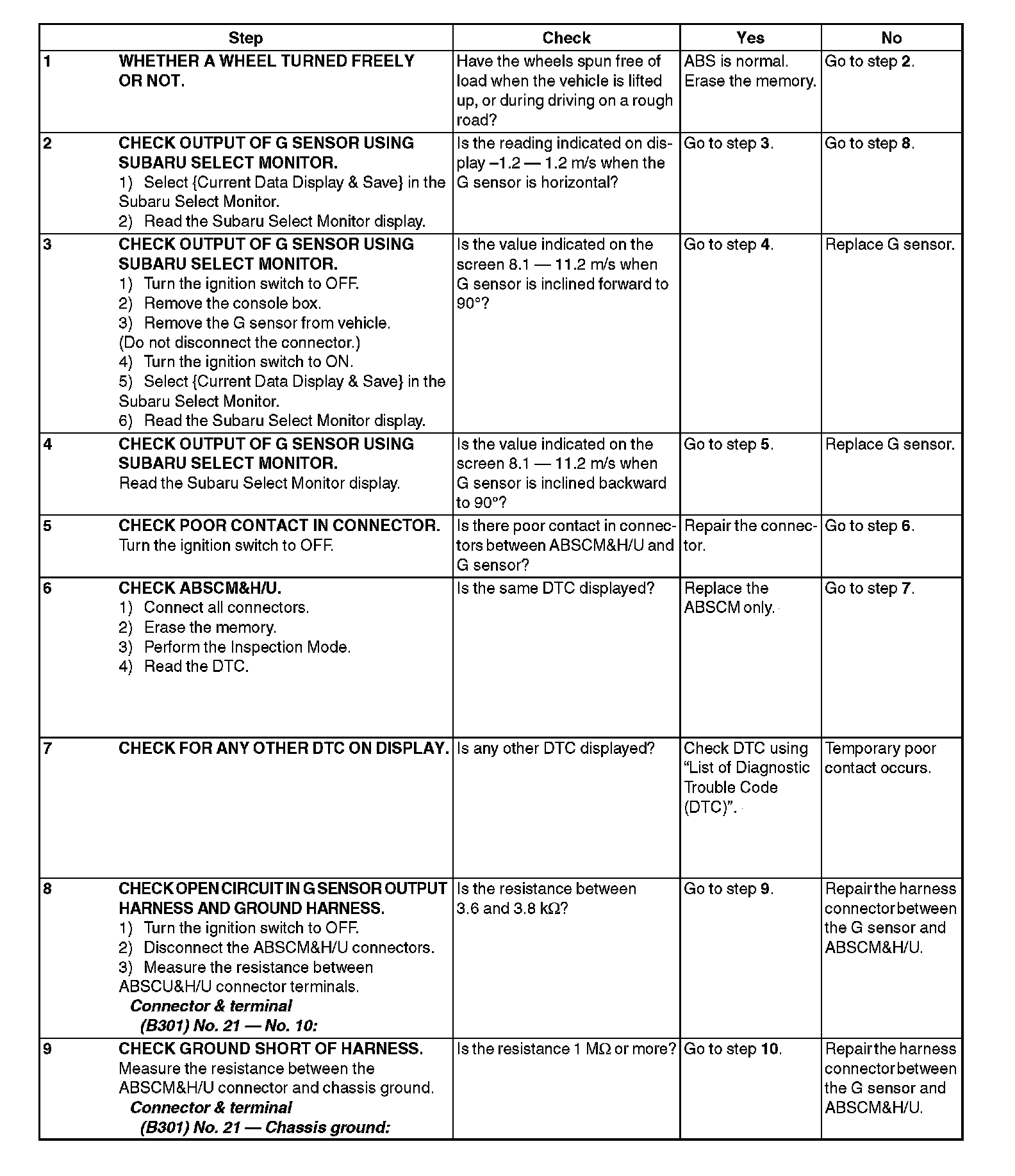

Step 1-Step 9:

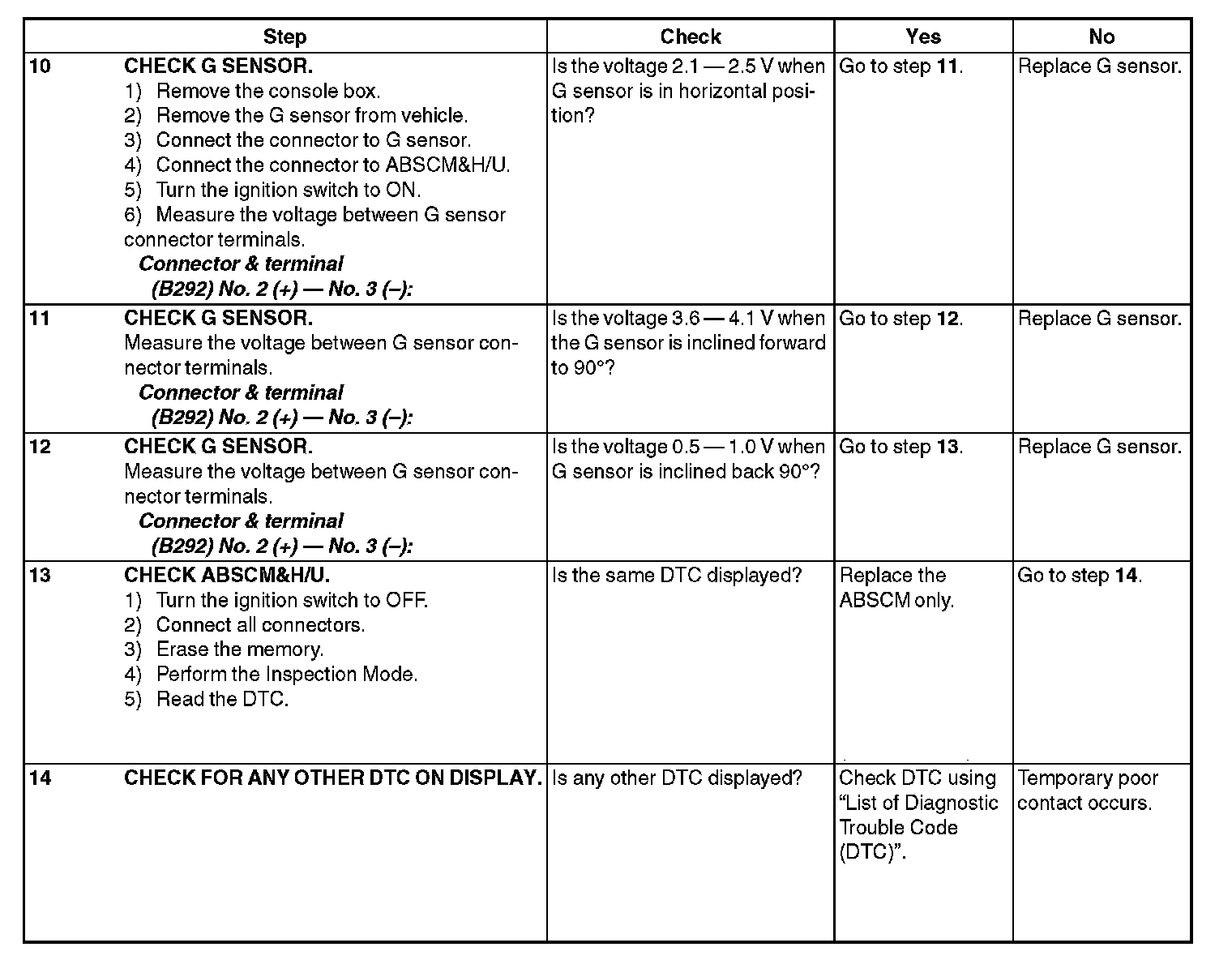

Step 10-Step 14:
