C0116

DTC C0116 FAULTY STOPLIGHT SWITCH

DTC DETECTING CONDITION:
Defective stop light switch

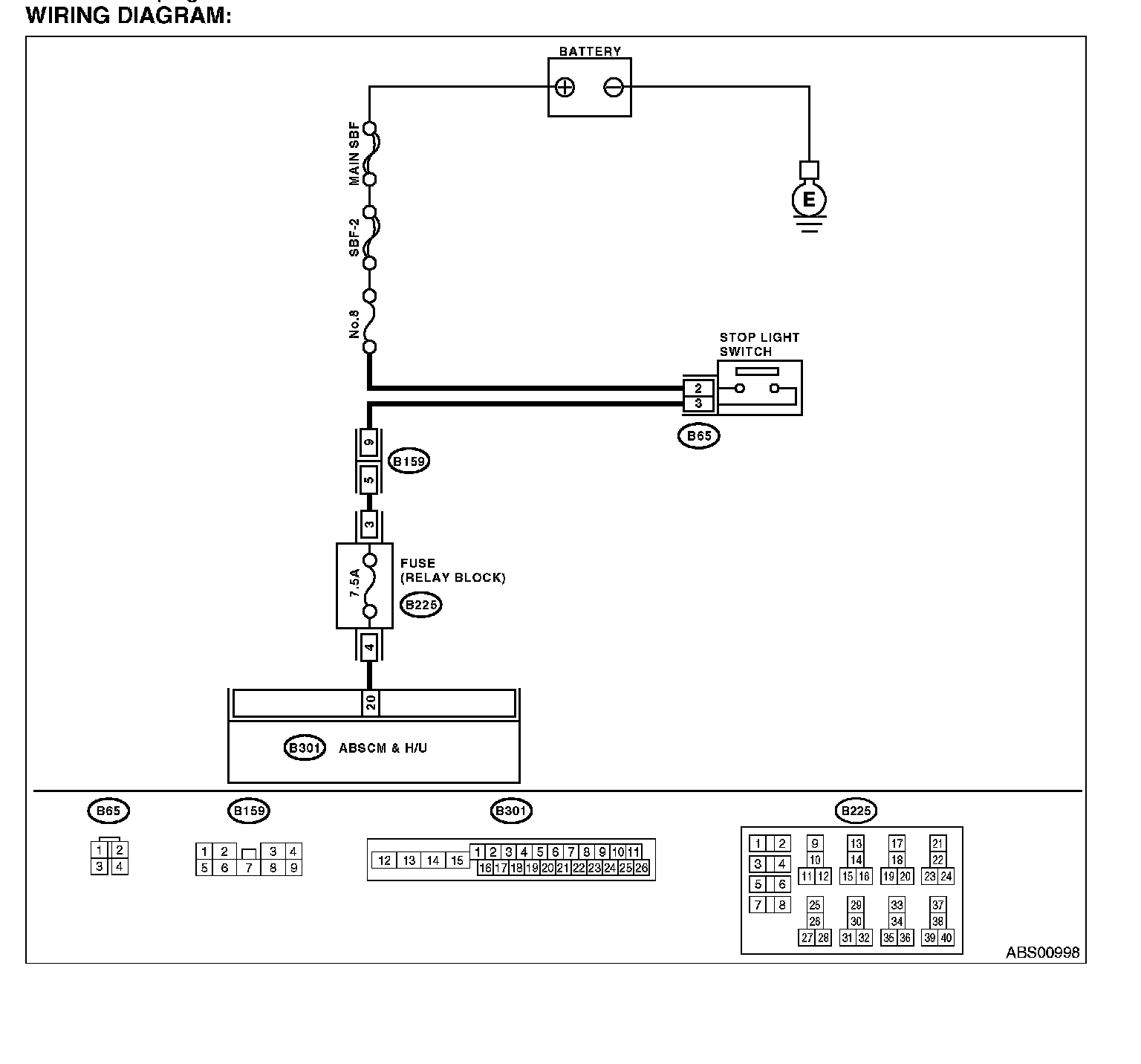

WIRING DIAGRAM:

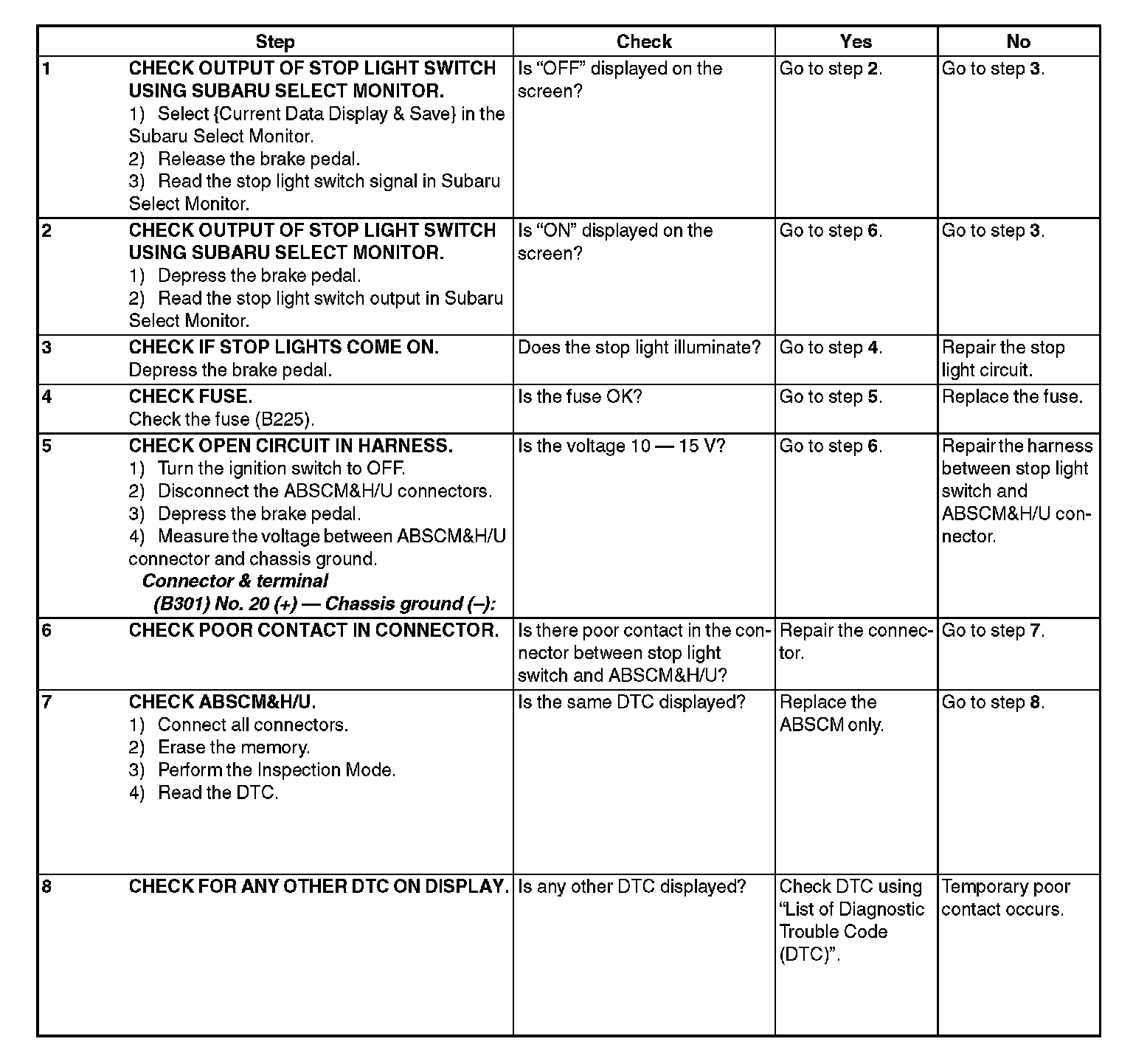

Step 1-Step 8:
