C0115

DTC C0115 ABS WHEEL SPEED SENSOR SIGNAL MALFUNCTION IN ONE OF FOUR WHEELS

DTC DETECTING CONDITION:
^ Defective ABS wheel speed sensor signal (noise, abnormal signal, etc.)
^ Defective magnetic encoder
^ When a wheel is turned freely for a long time

TROUBLE SYMPTOM:
^ ABS does not operate.
^ EBD does not operate.

NOTE: Brake warning light illuminates as well as the ABS warning light.

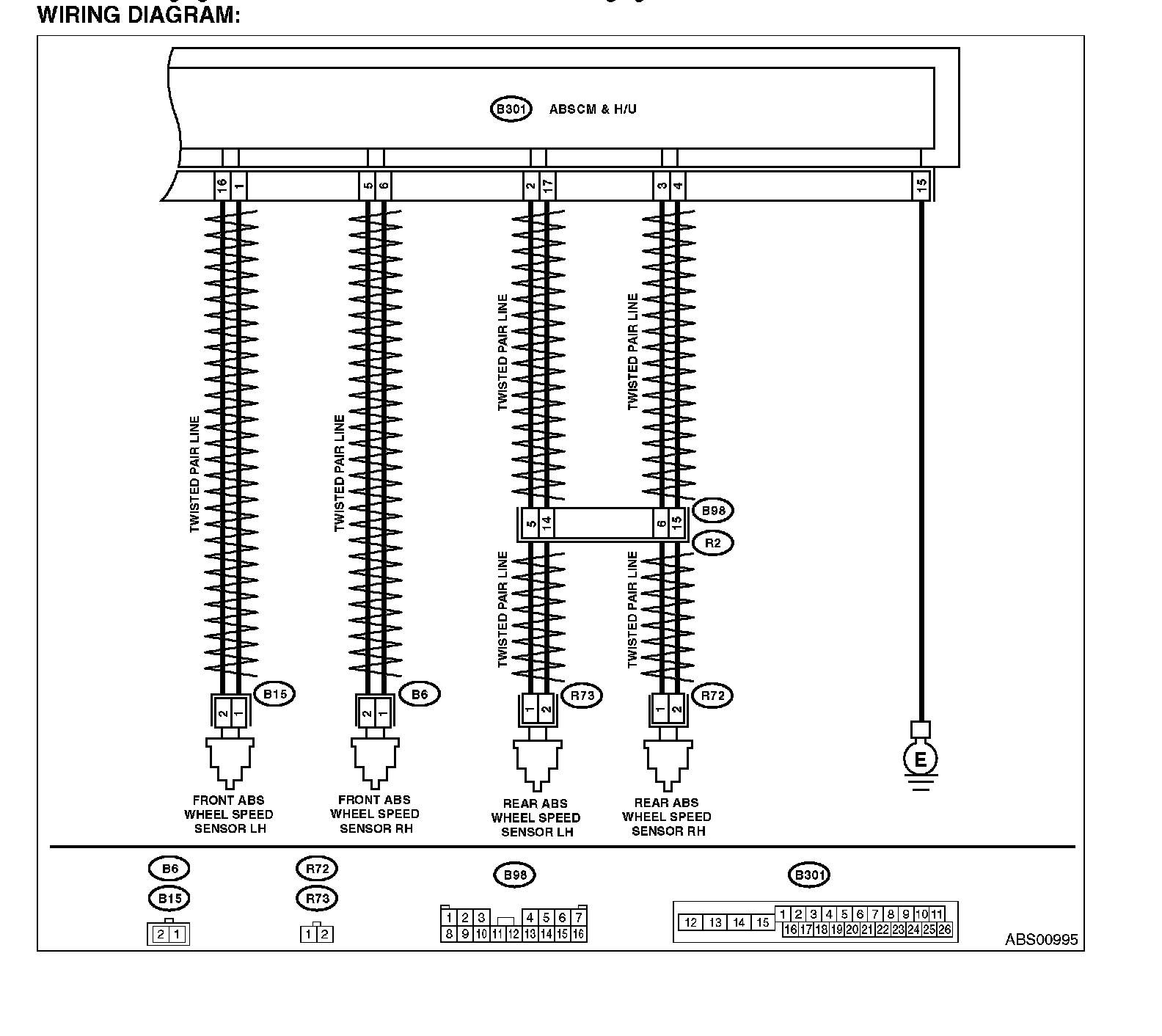

WIRING DIAGRAM:

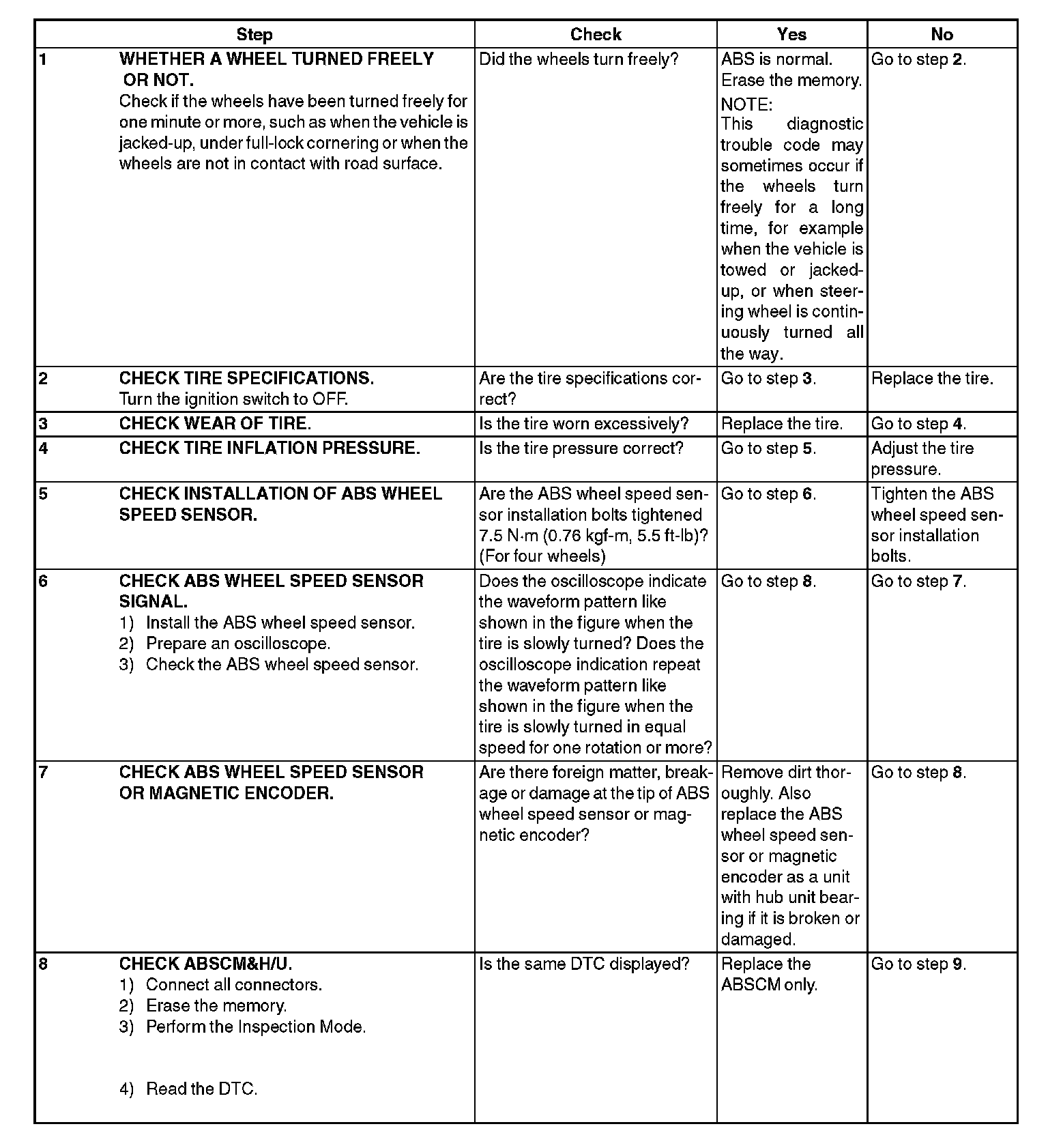

Step 1-Step 8:

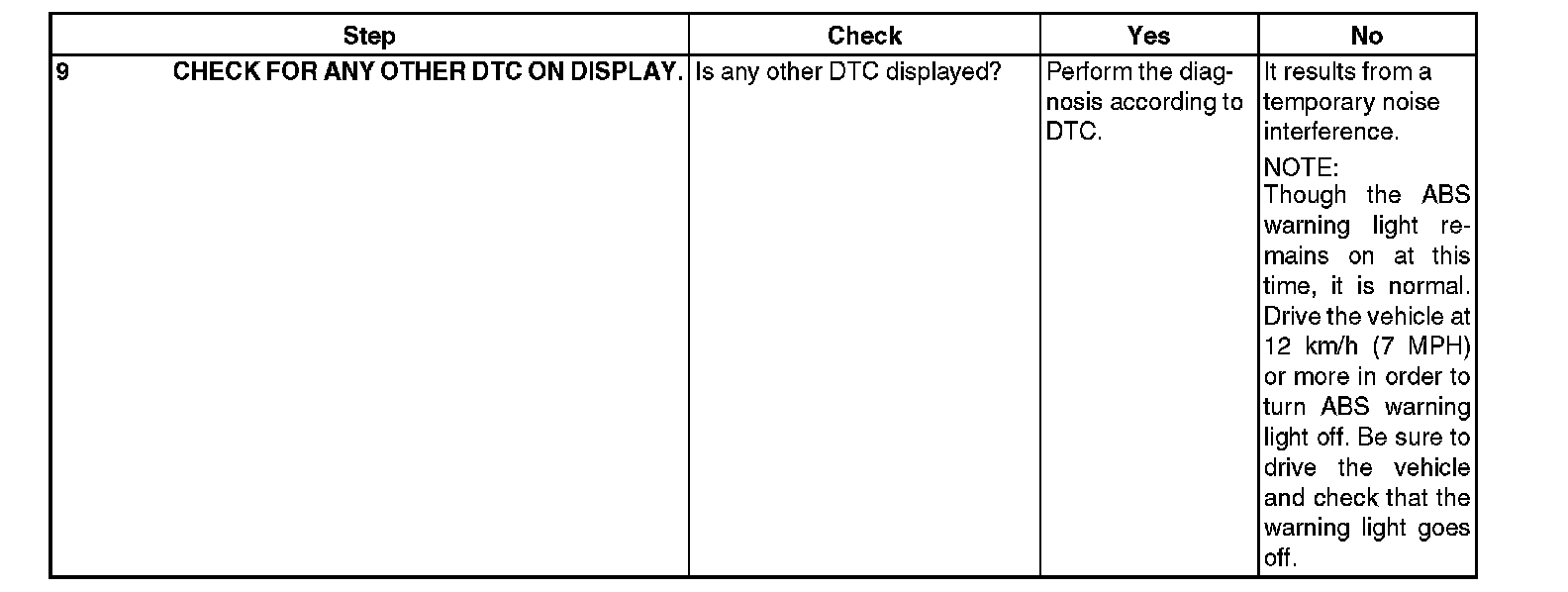

Step 9:
