C0114

DTC C0114 VALVE RELAY MALFUNCTION

DTC DETECTING CONDITION:
Defective valve relay

TROUBLE SYMPTOM:
^ ABS does not operate.
^ EBD does not operate depending on the trouble contents.

NOTE: Brake warning light illuminates as well as ABS warning light when EBD does not operate.

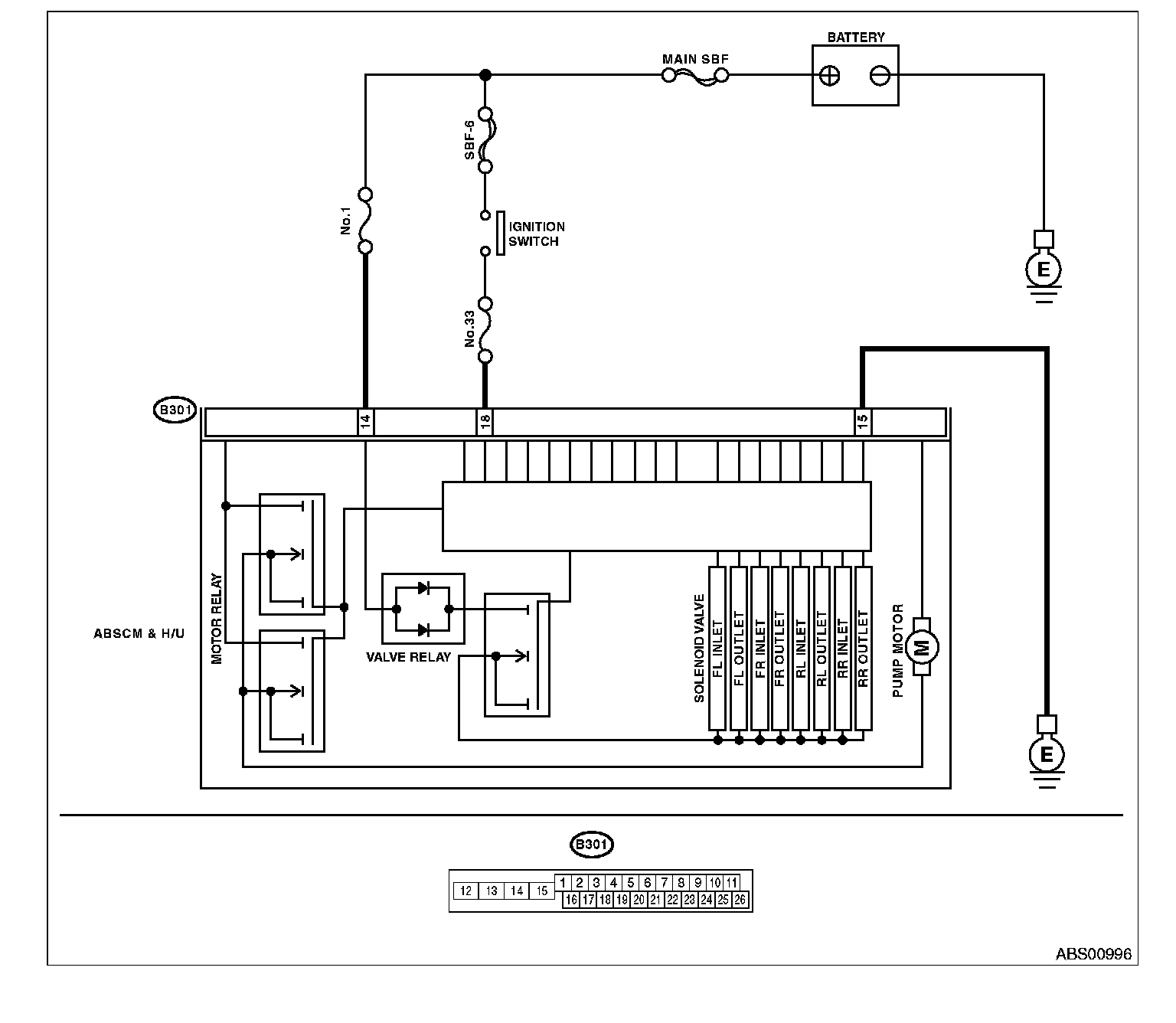

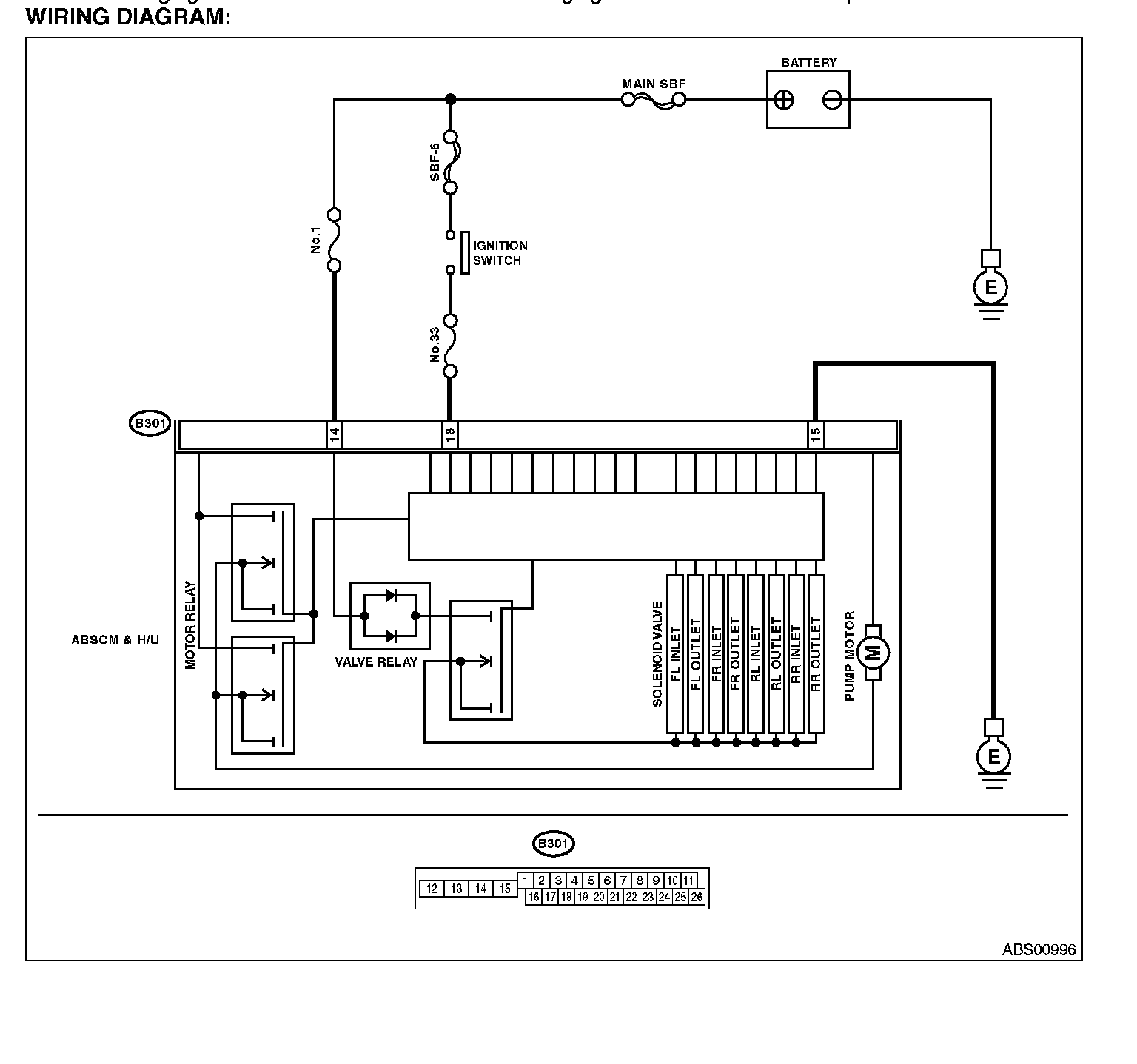

WIRING DIAGRAM:

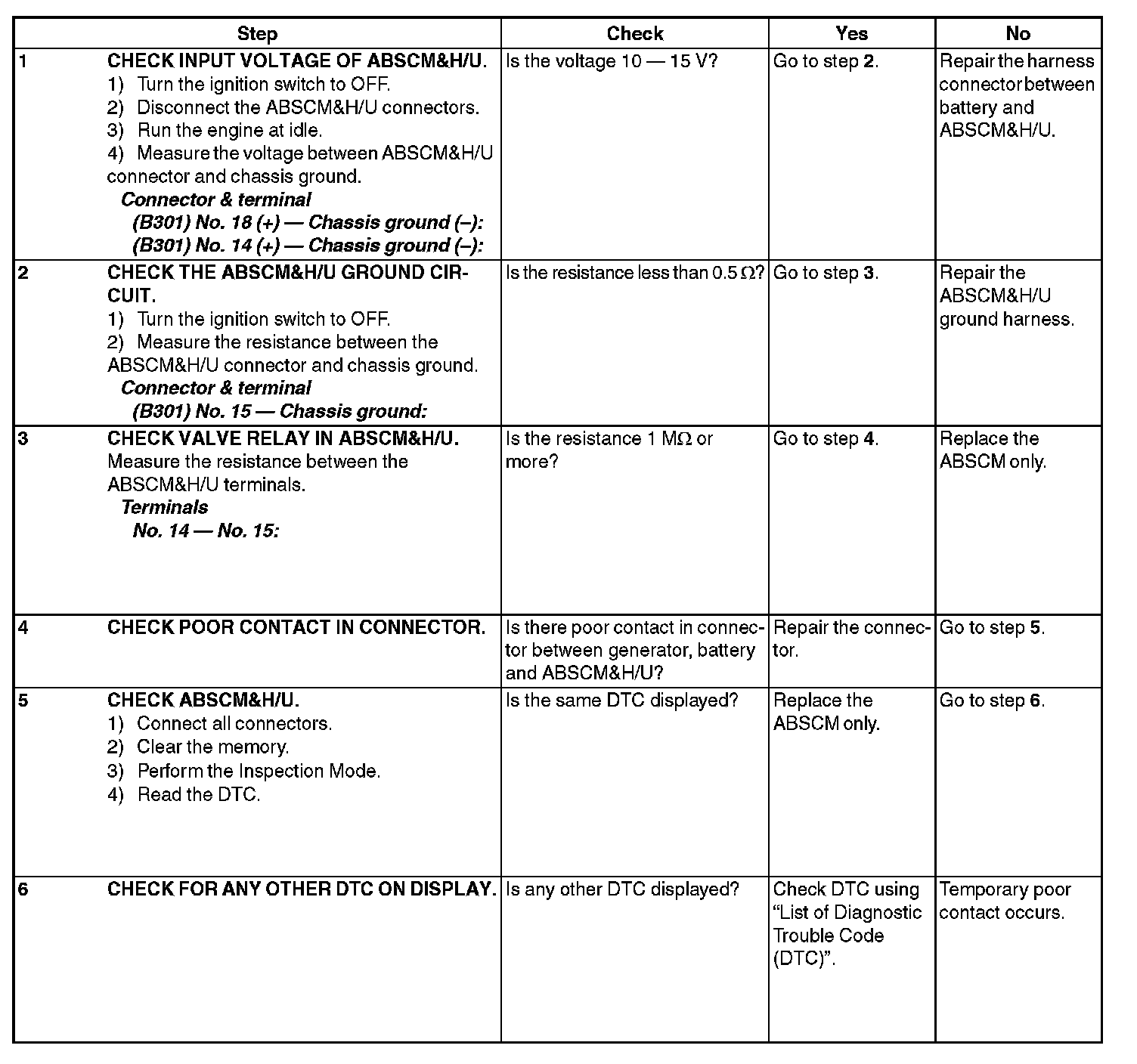

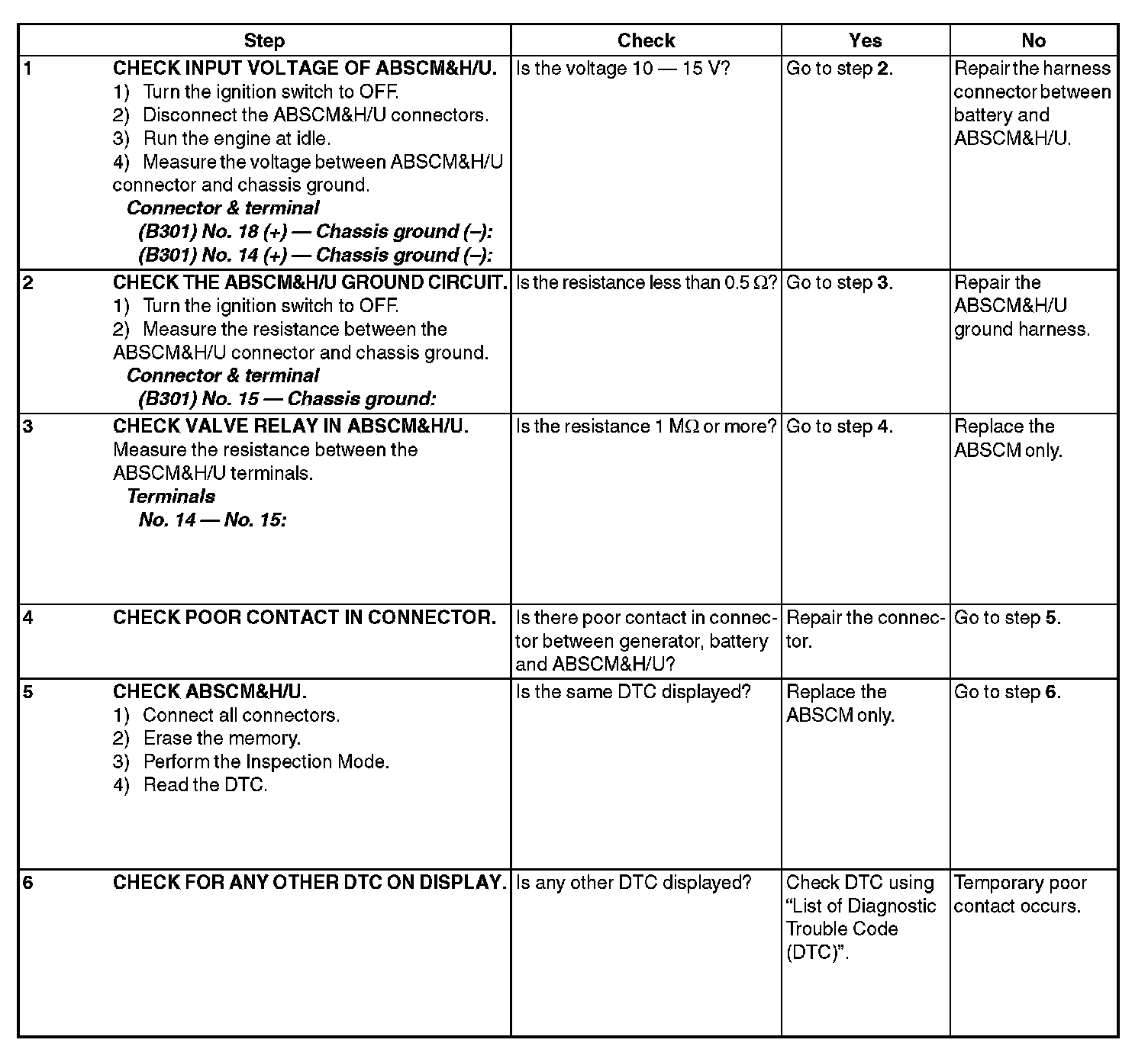

Step 1-Step 6:
