C0104

DTC C0104 ABS WHEEL SPEED SENSOR MALFUNCTION FL SENSOR (BROKEN WIRE, INPUT VOLTAGE TOO HIGH)

DTC DETECTING CONDITION:
^ Defective ABS wheel speed sensor (broken wire, input voltage too high)
^ Defective harness connector

TROUBLE SYMPTOM:
ABS does not operate.

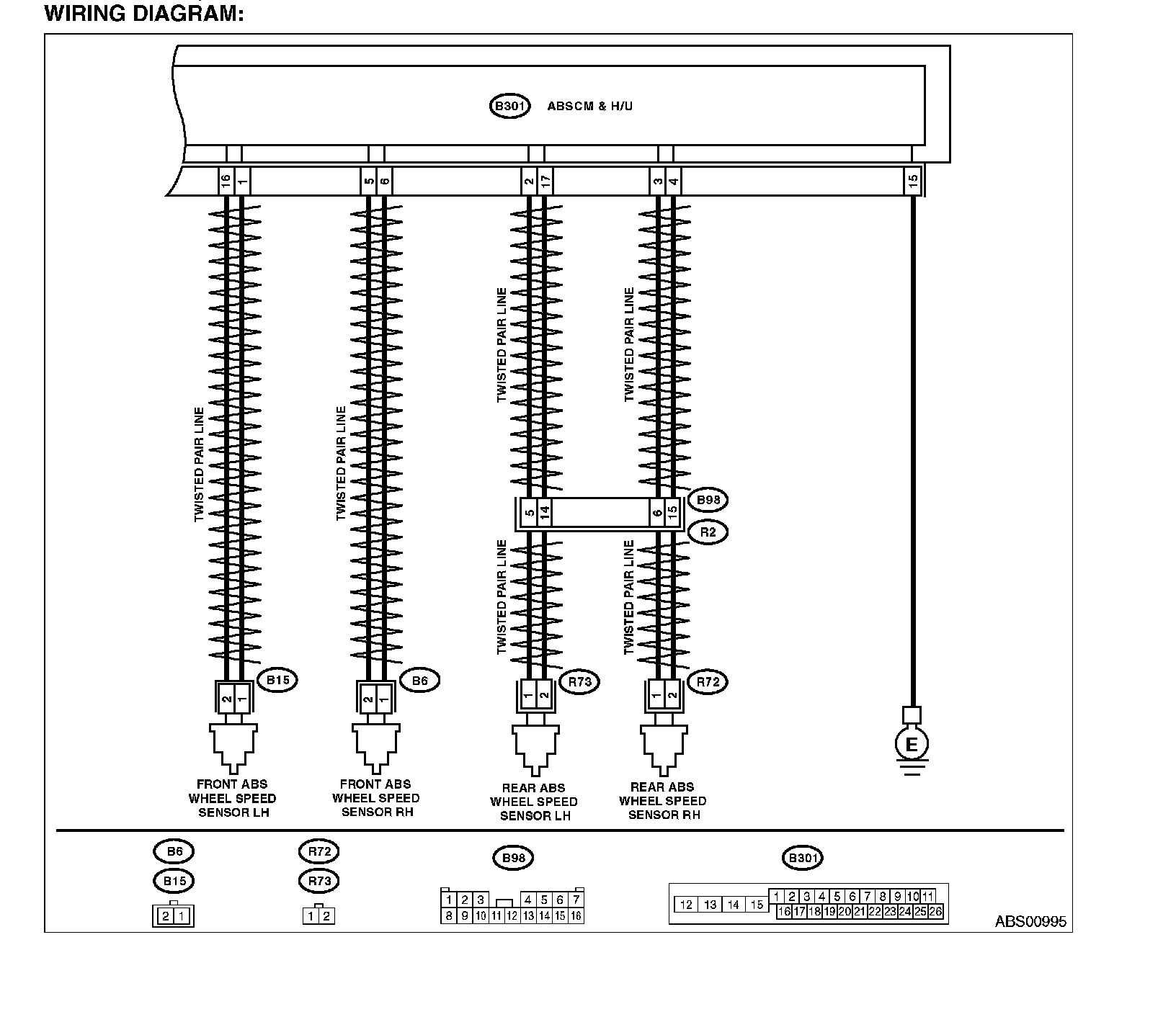

WIRING DIAGRAM:

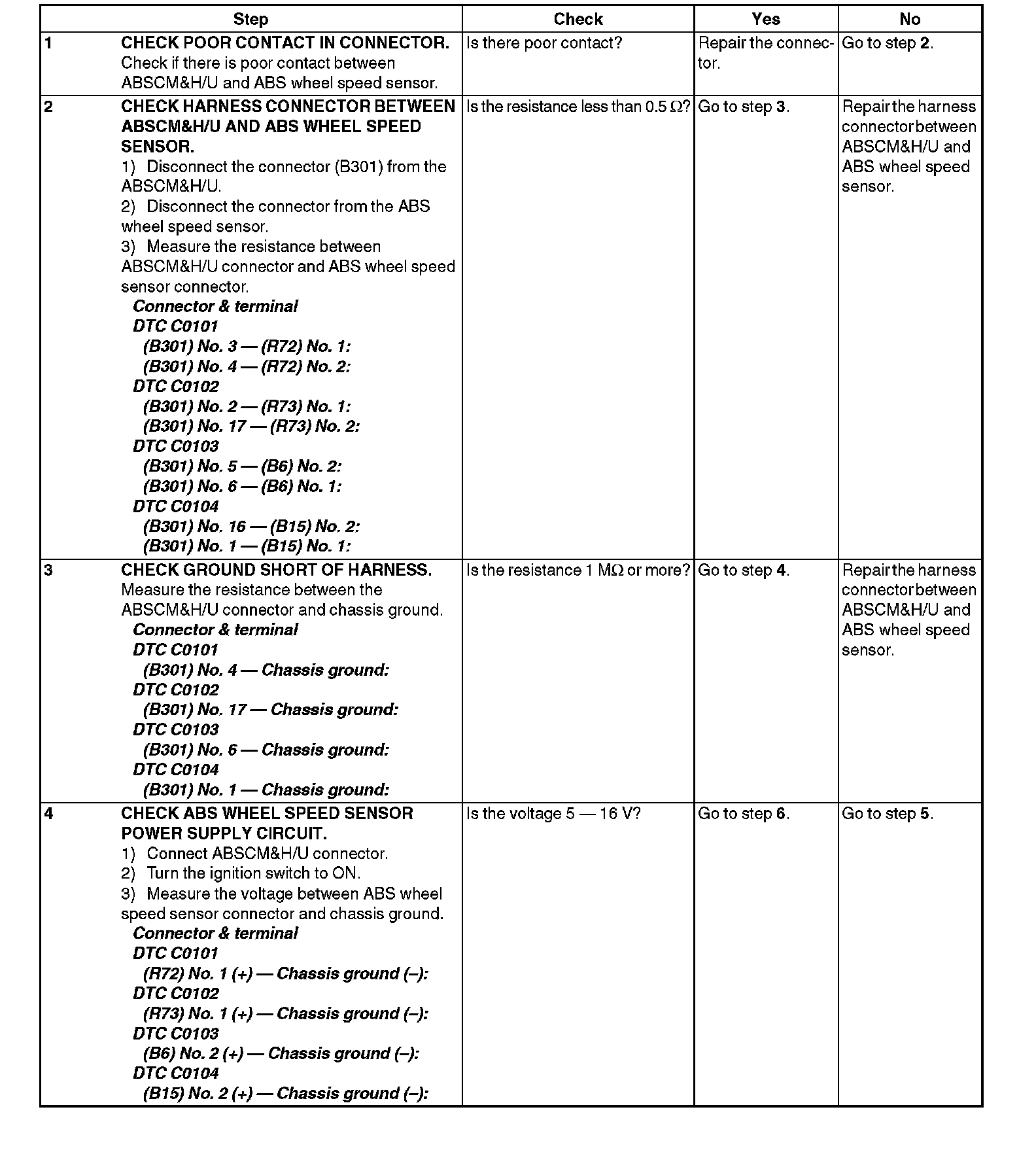

Step 1-Step 4:

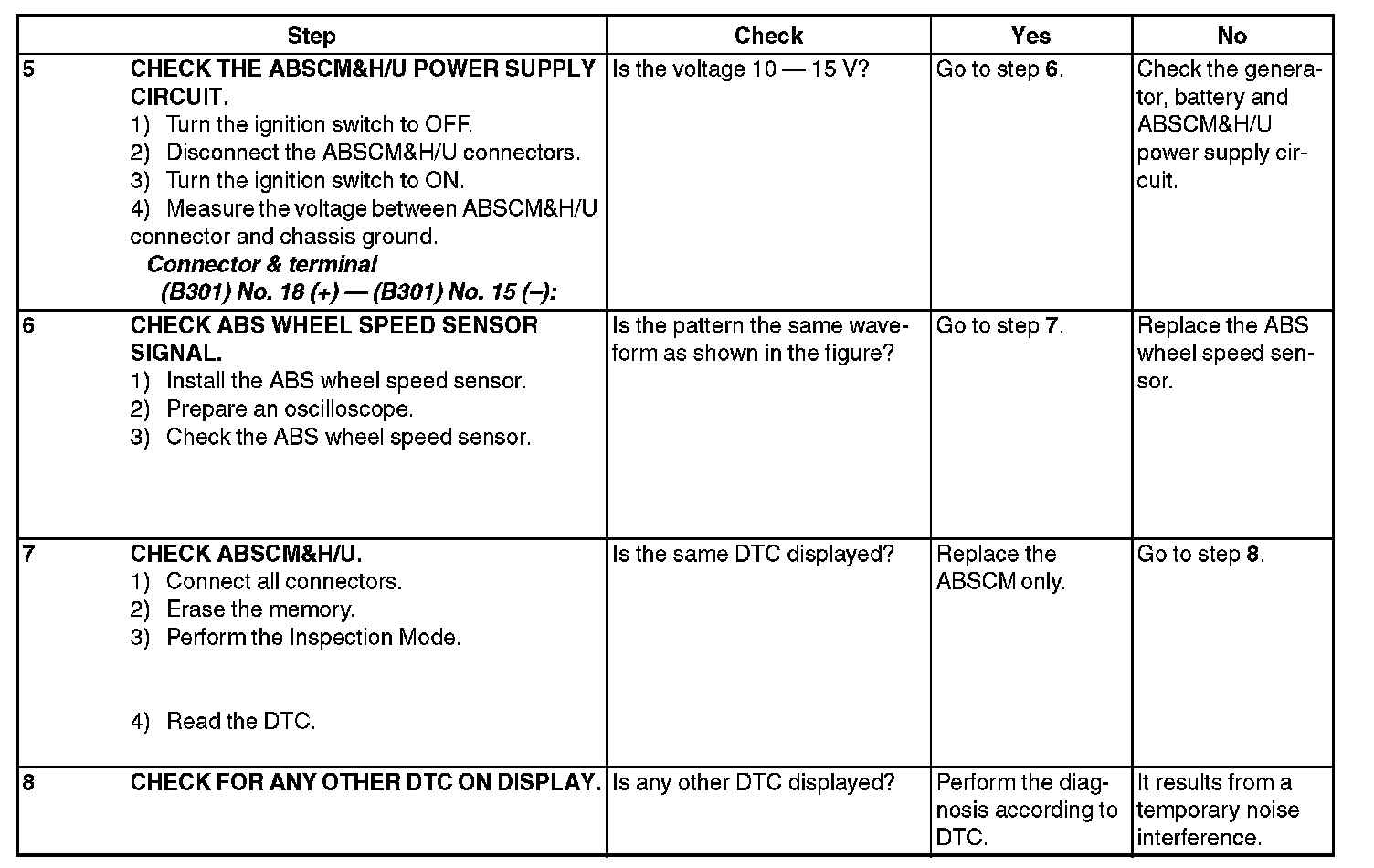

Step 5-Step 8:
