B1100

DTC B1100 INTEG. UNIT SYSTEM ERROR

DTC DETECTING CONDITION:
System error in body integrated unit

TROUBLE SYMPTOM:
- Check light comes on in the combination meter, and displays communication error display "Er IU". (Except for meter with MID)
- LAN communication immobilizer function may not be executed normally.

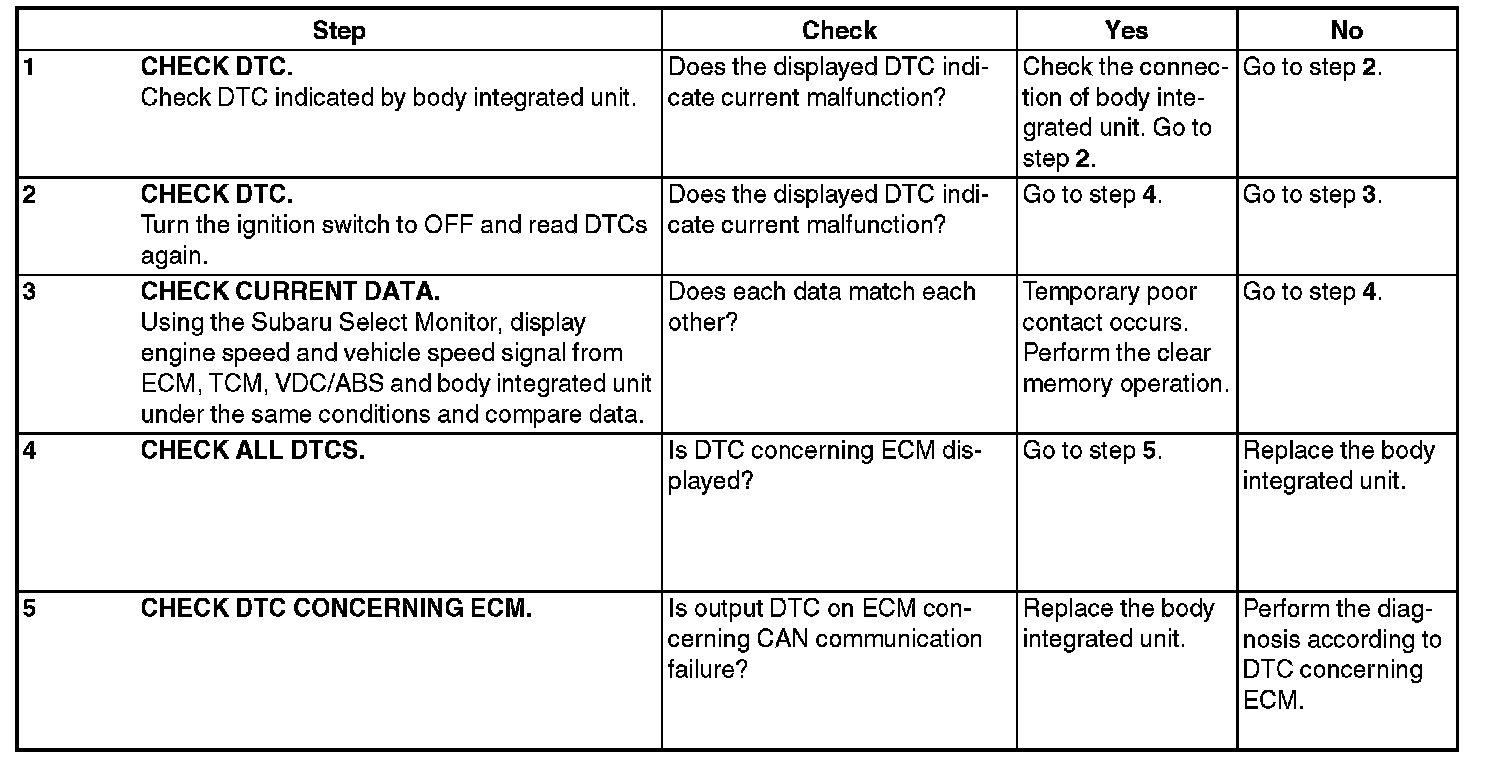

Step 1-5:
