6MT
REPLACEMENT1) Clean the transmission exterior.

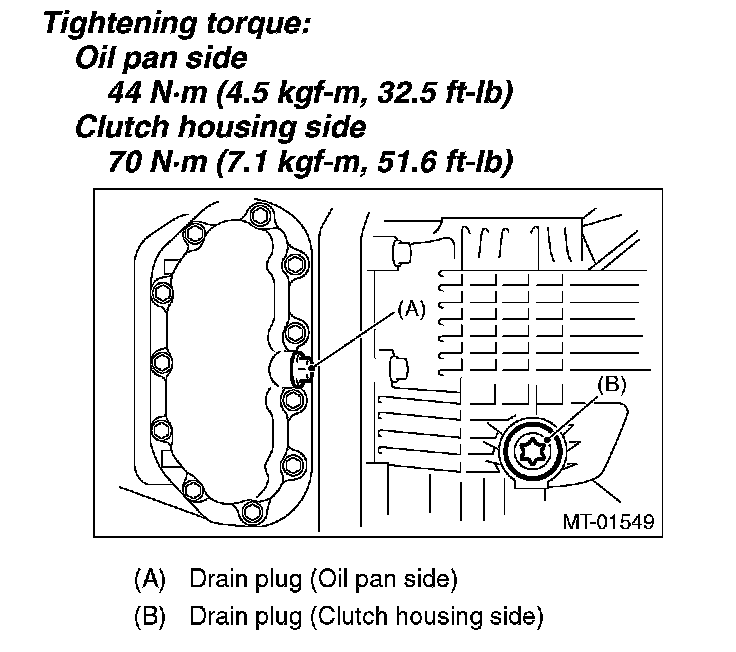

2) Drain transmission gear oil completely.
NOTE:
^ Tighten the drain plug after draining the transmission gear oil.
^ Be sure to use a new gasket.
^ Use TORX� bit T70 to remove and install the drain plug on clutch housing side.
3) Remove the rear exhaust pipe and muffler.
4) Remove the heat shield cover. (If equipped)
5) Remove the propeller shaft.
6) Using the ST, remove the oil seal.
ST 398527700 PULLER ASSY

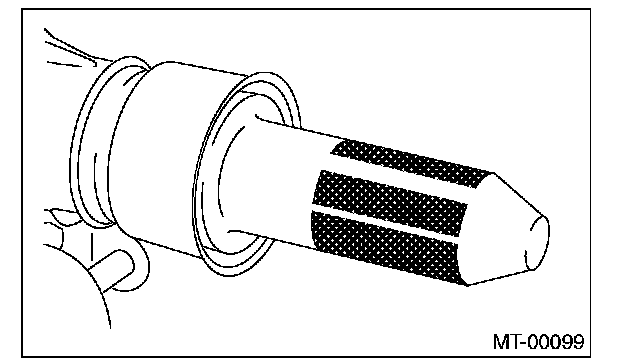

7) Using the ST, install the oil seal.
ST 498057300 INSTALLER
8) Install the propeller shaft.
9) Install the heat shield cover. (If equipped)
10) Install the rear exhaust pipe and muffler.
11) Pour in transmission gear oil and check the oil level.
