Air Injection Pump: Service and Repair

Secondary Air Pump

REMOVAL

1. Remove the collector cover.

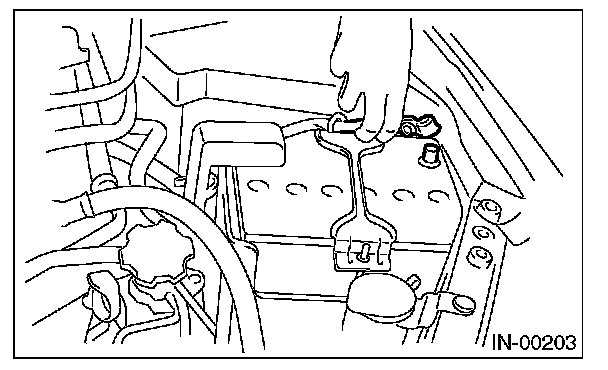

2. Disconnect the ground cable from the battery.

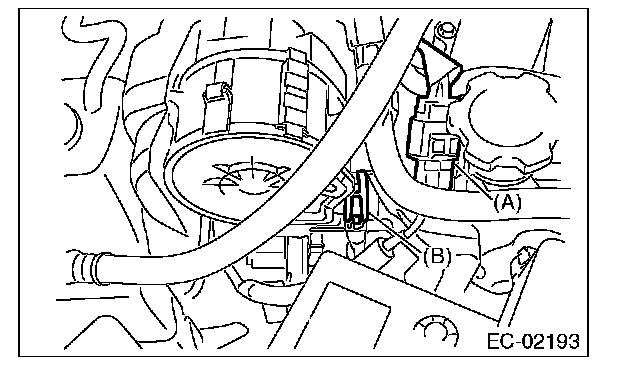

3. Disconnect the connector (A) from secondary air pump, and remove the harness.
4. Disconnect the hose (B) from secondary air pump.






5. Remove the bolt (C) which secures the secondary air pump to the body.






INSTALLATION
Install in the reverse order of removal.
