Muffler: Service and Repair

Muffler











REMOVAL

CAUTION: Be careful not to burn yourself, because the exhaust pipe becomes extremely hot after running.

1) Set the vehicle on a lift.
2) Lift up the vehicle.

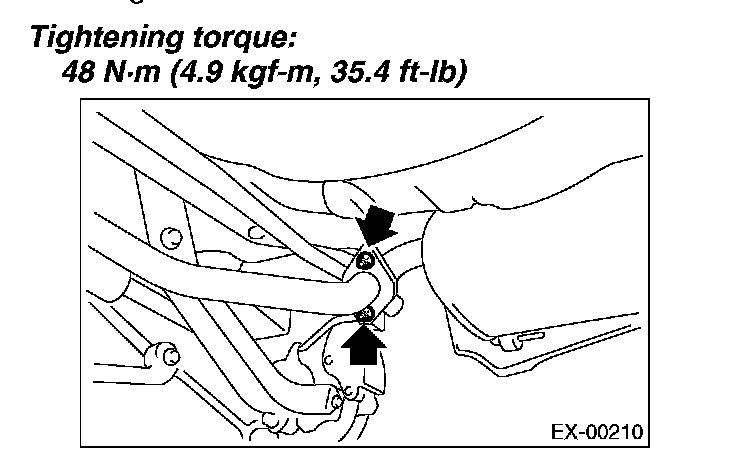

3) Separate the muffler (RH) from the rear exhaust pipe.





4) Apply a coat of spray type lubricant to the mating area of cushion rubber.
5) Remove the cushion rubber, and remove the muffler.

CAUTION: Be careful not to drop the muffler during removal.





6) Perform the same procedures for the muffler (LH).

INSTALLATION
Install in the reverse order of removal.

NOTE:
^ Use a new gasket and self-locking nut.
^ After assembling, degrease the lubricant which was applied to the cushion rubber while removing/installing.





INSPECTION
1) Check the connections and welds for exhaust leaks.
2) Make sure there are no holes or rusting.
3) Check the cushion rubber for wear or crack.
