Outback F4-2.5L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
System Diagram
>>

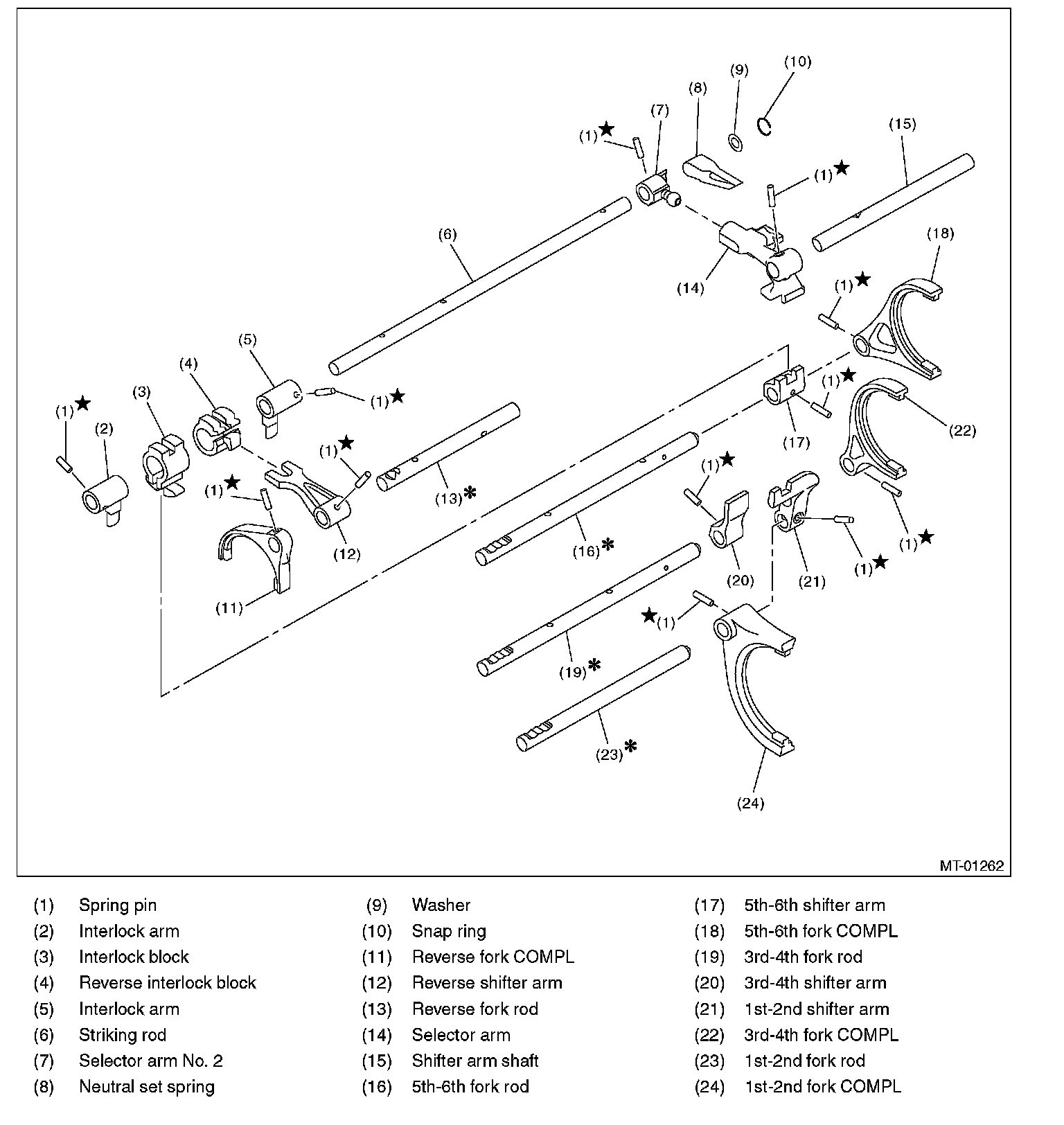

Shifter Fork and Shifter Rod
>>
6MT
6MT
SHIFTER FORK AND FORK ROD:
