Engine - Diagnostics

DTC P2103 THROTTLE ACTUATOR CONTROL MOTOR CIRCUIT HIGH

DTC DETECTING CONDITION:
- Immediately at fault recognition

CAUTION: After repairing or replacing the defective part, perform the Clear Memory Mode Clear Memory Mode and Inspection Mode

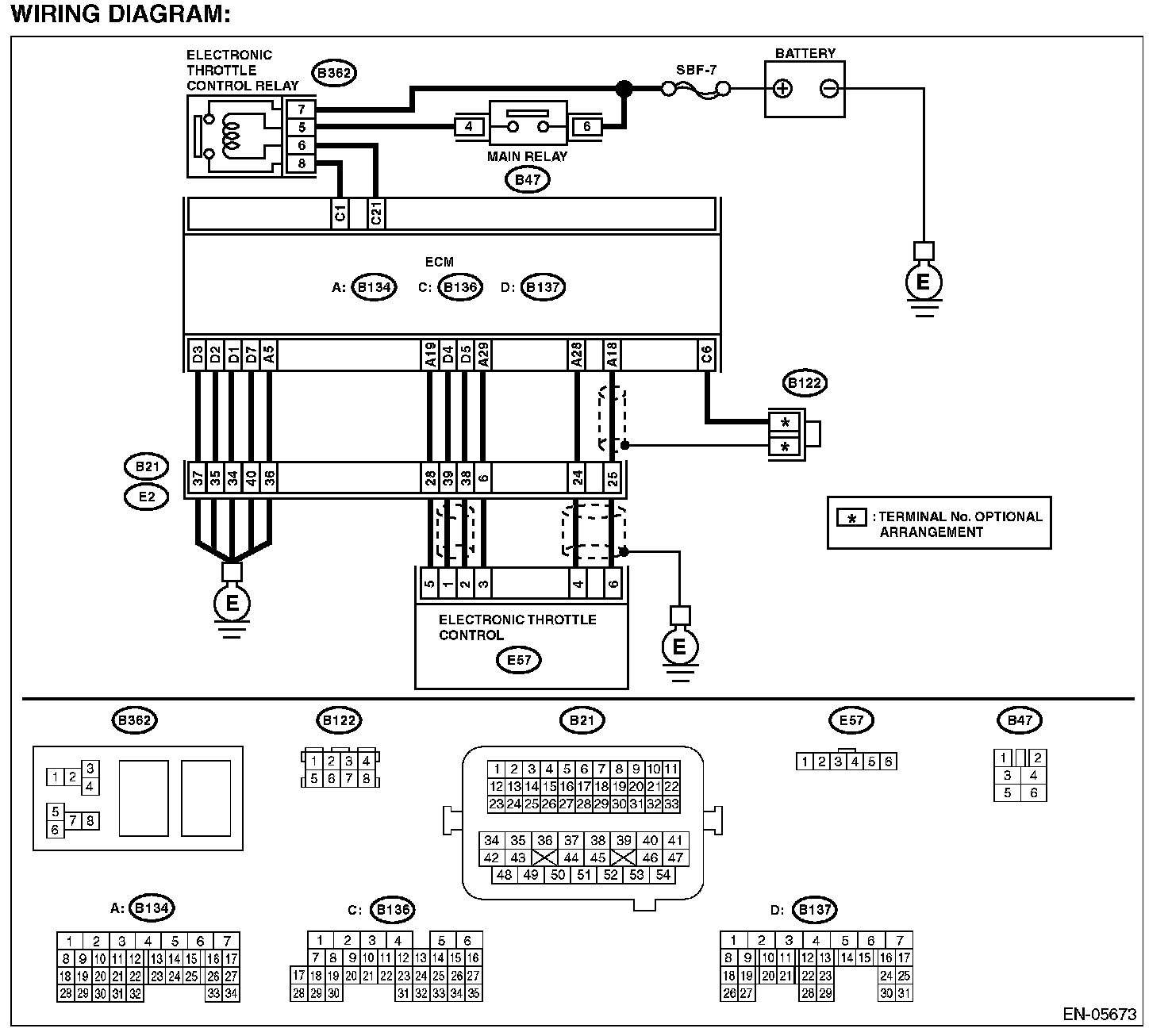

Wiring Diagram:

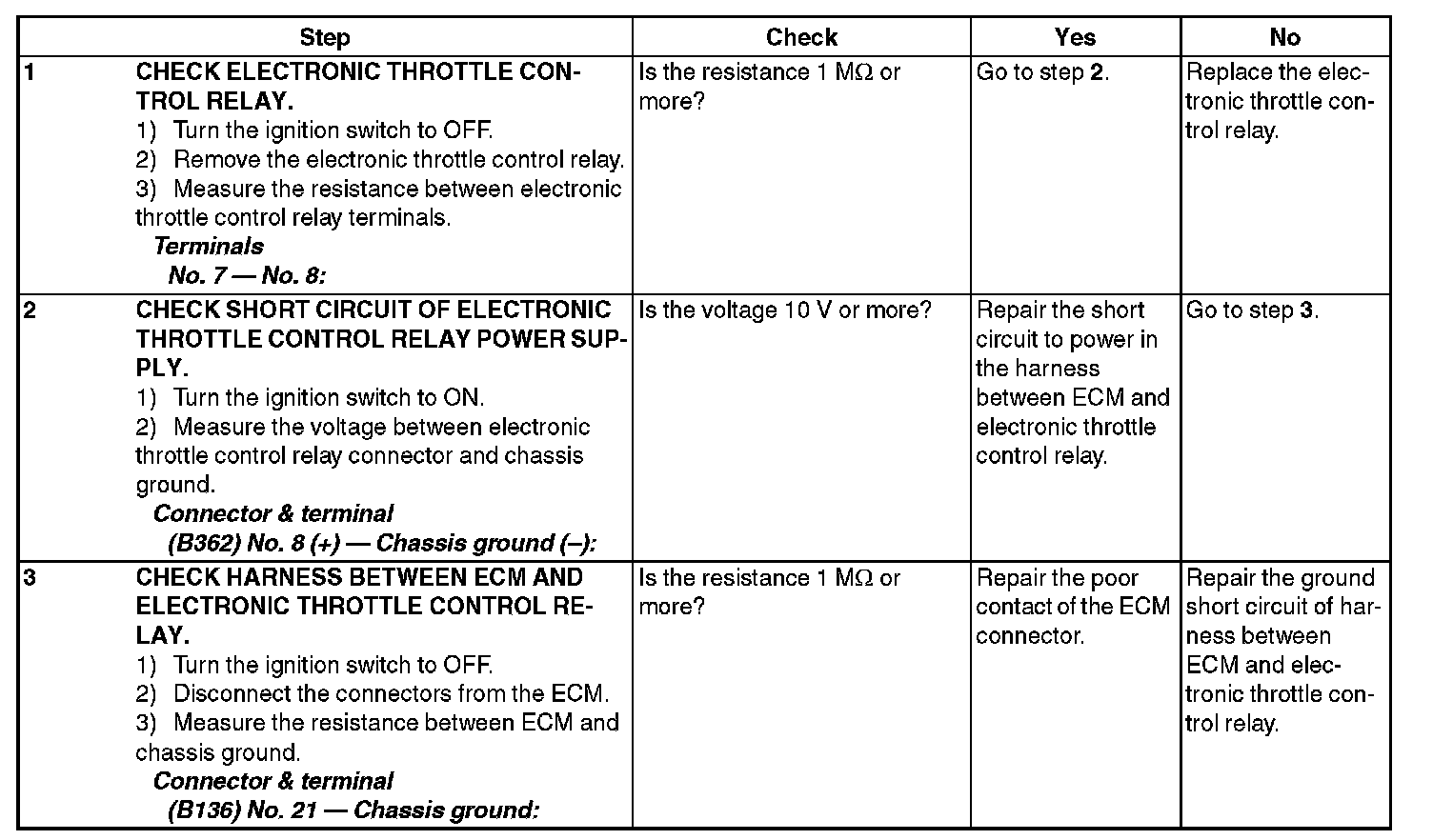

Step 1-3:
