Oil Pressure Sender: Service and Repair

Oil Pressure Switch

REMOVAL
1) Remove the collector cover.
2) Remove the generator from the bracket.

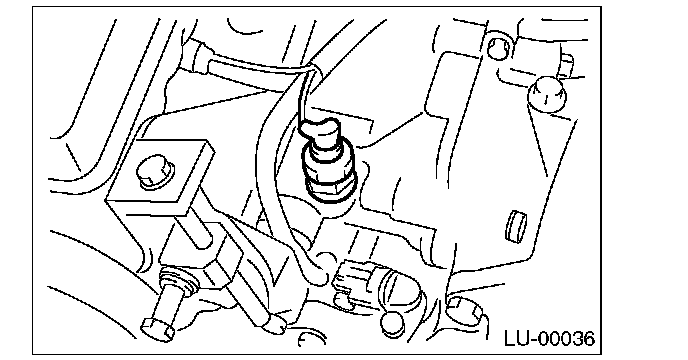

3) Disconnect the terminal from oil pressure switch.

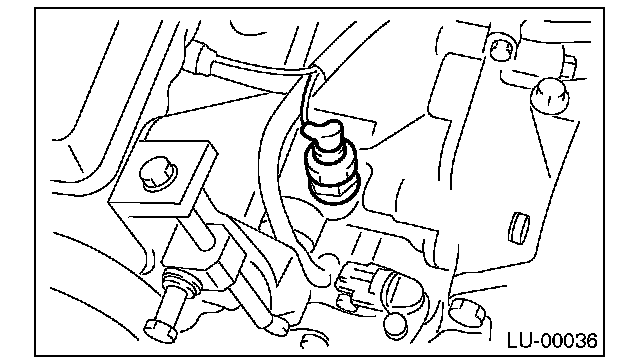

4) Remove the oil pressure switch.





INSTALLATION

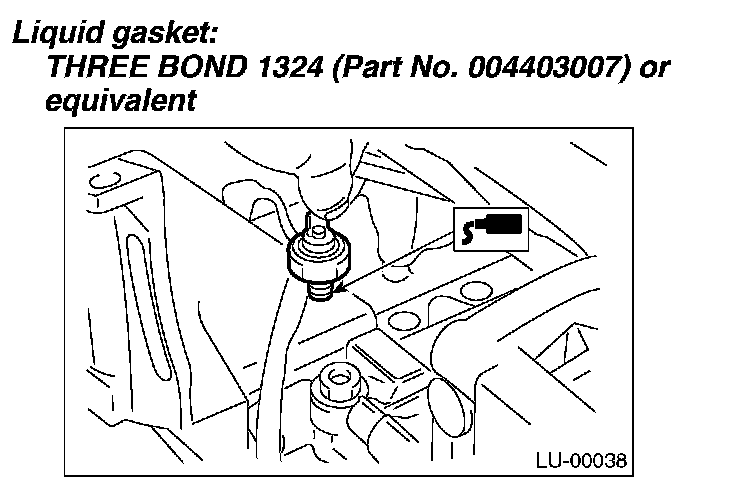

1) Apply liquid gasket to the oil pressure switch threads.
Liquid gasket: THREE BOND 1324 (Part No. 004403007) or equivalent

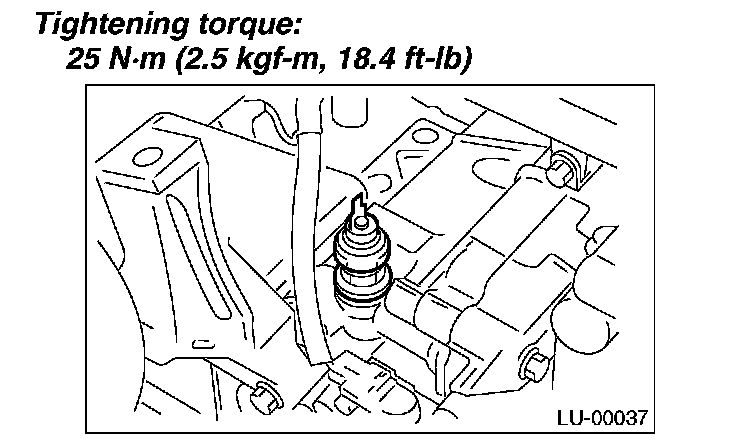

2) Install the oil pressure switch to the cylinder block.

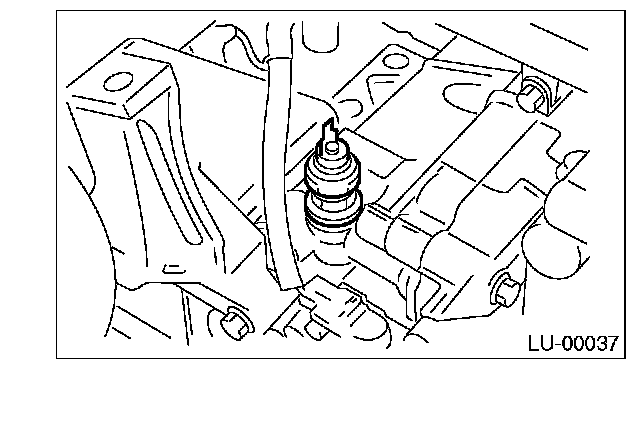

3) Connect the terminal to the oil pressure switch.





4) Install the generator to the bracket.
5) Install the collector cover.

INSPECTION
Check the oil pressure switch installation portion for oil leakage and oil seepage.
