SI-DRIVE (Subaru Intelligent Drive) Steering Wheel Mounted Switch

SI-DRIVE (SUBARU Intelligent Drive) S# Switch

INSPECTION

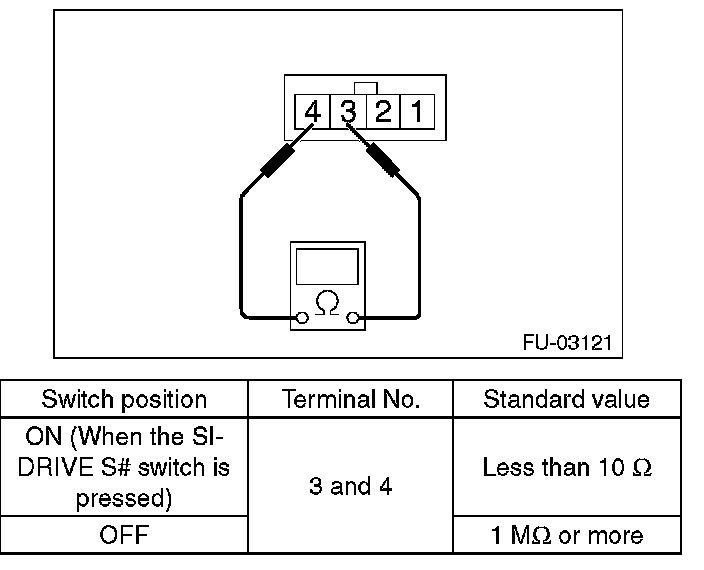

Measure the resistance between SI-DRIVE S# switch terminals.
