Home >> Subaru >> 2007 >> Outback F6-3.0L DOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shift Interlock >> Locations

Shift Interlock: Locations

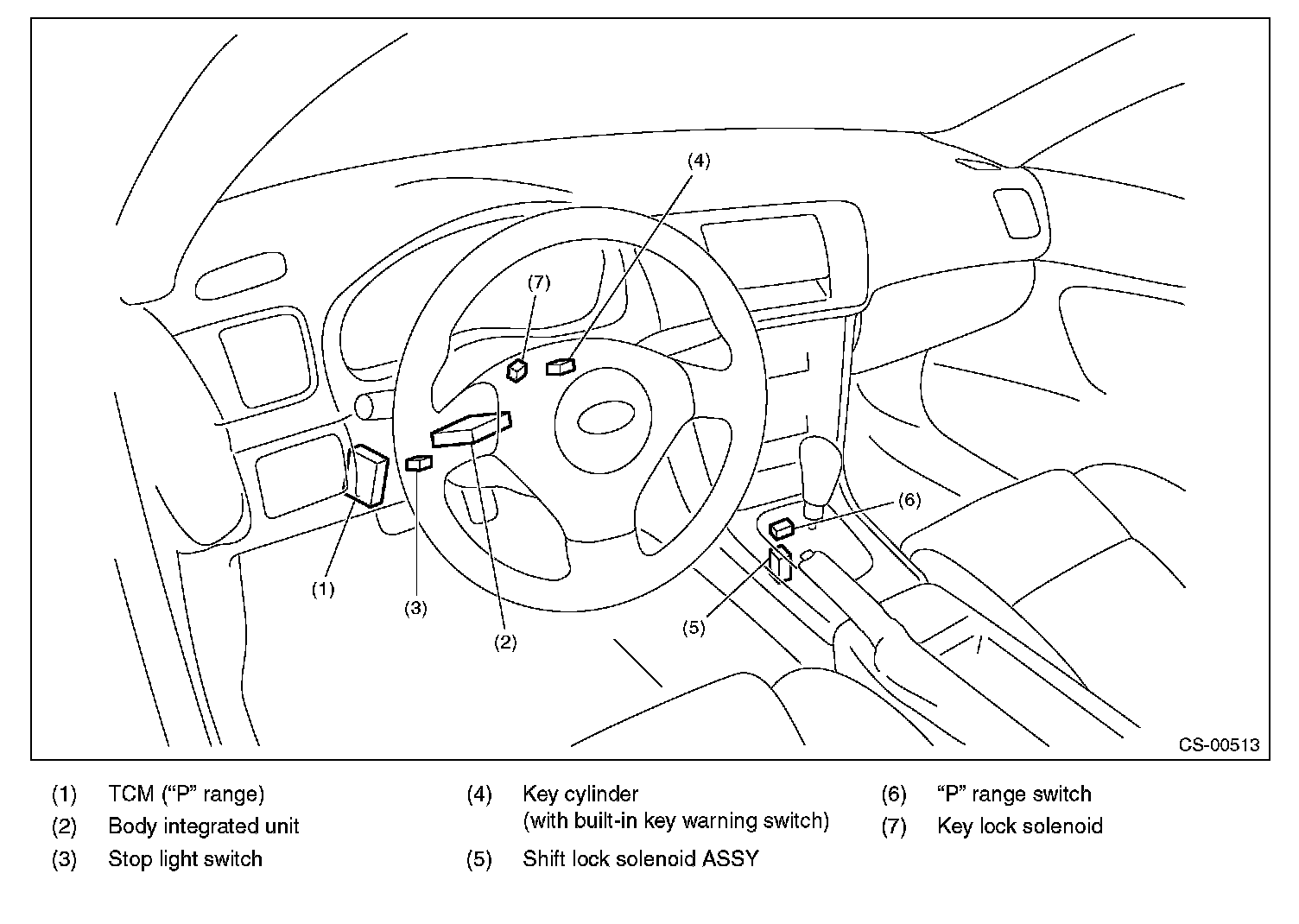

AT Shift Lock Control System (Part 1):

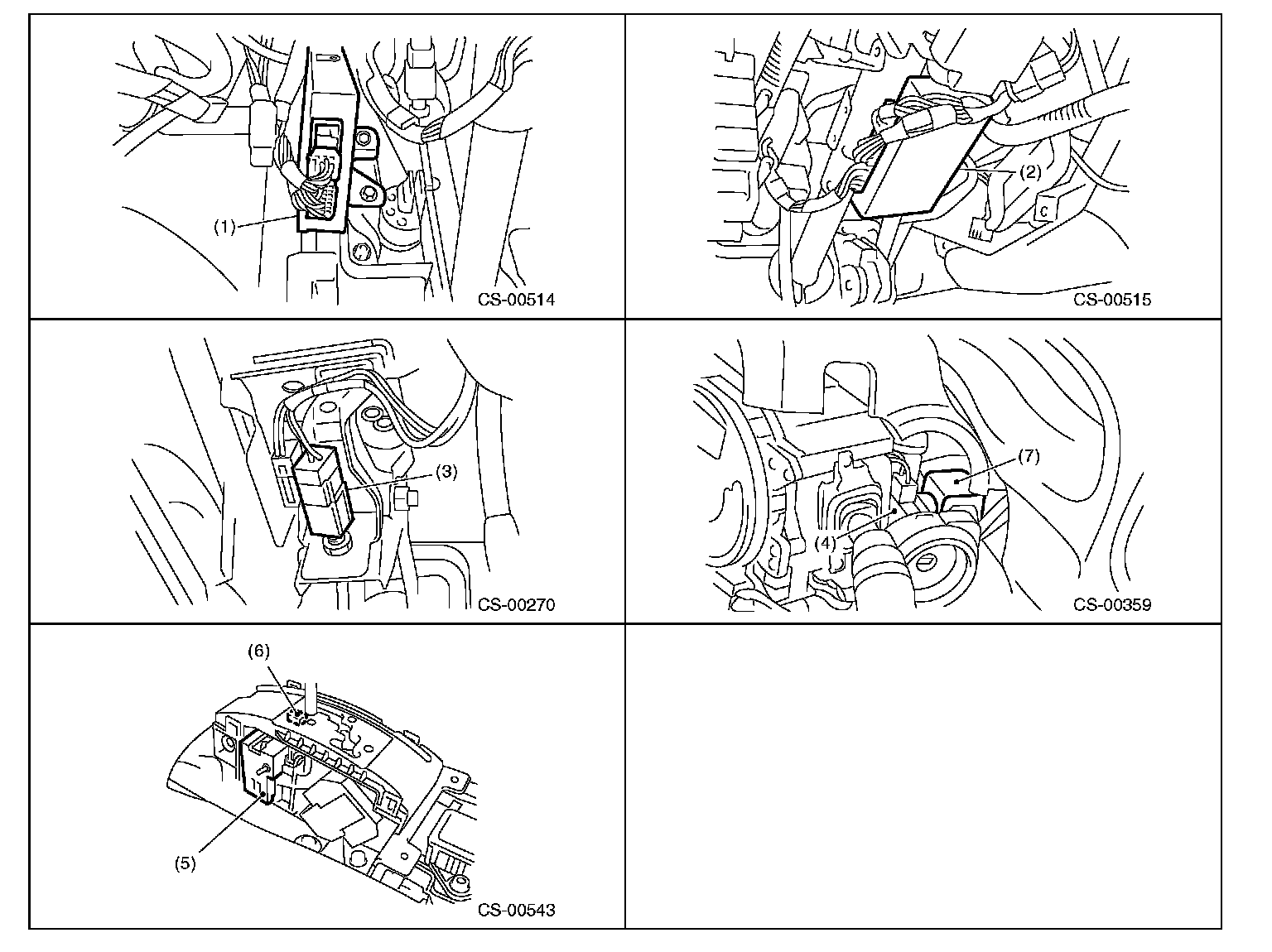

AT Shift Lock Control System (Part 2):
