Seat Belt Systems: Testing and Inspection

INSPECTION

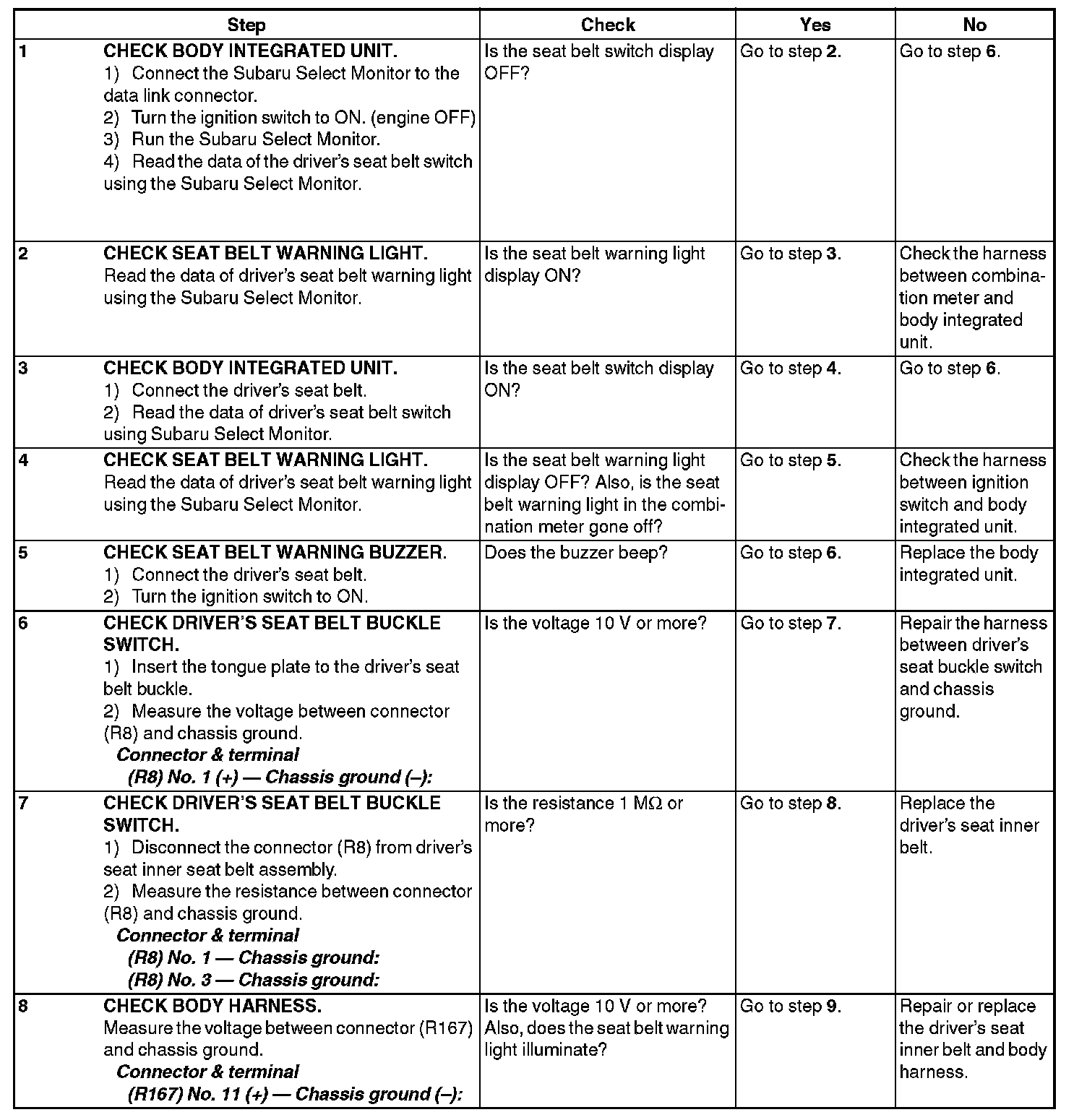

Step 1-8:

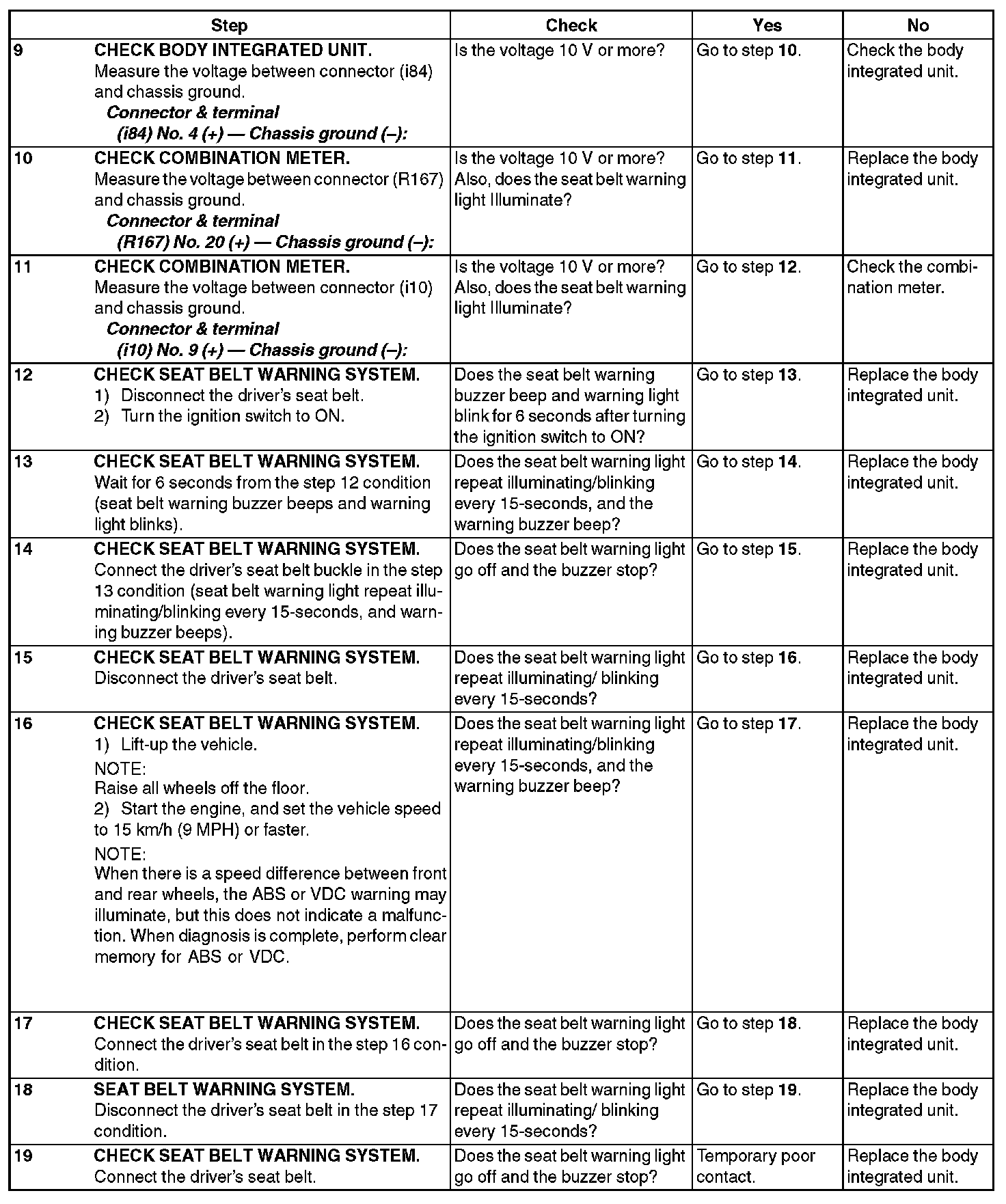

Step 9-19:




TROUBLE SYMPTOM:
- Driver's side seat belt warning light does not turn on or off.
- Warning buzzer does not beep.
