Overhaul

DISASSEMBLY

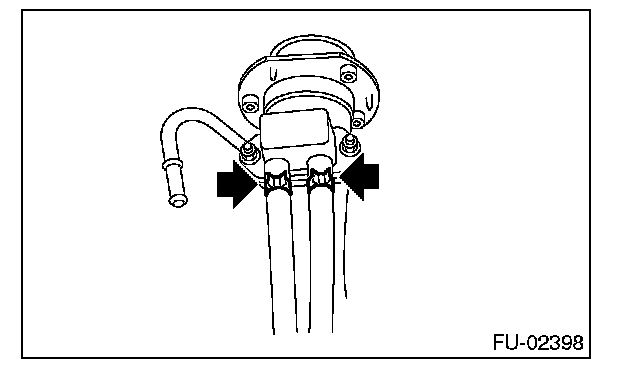

1. Move the clamp and disconnect the evaporation hose from the shut valve.

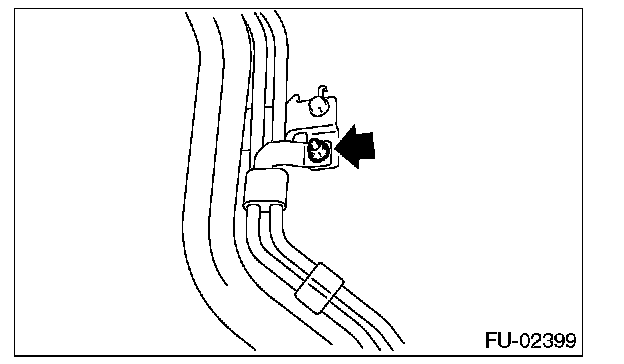

2. Remove the nut which holds the evaporation pipe assembly to the fuel filler pipe.

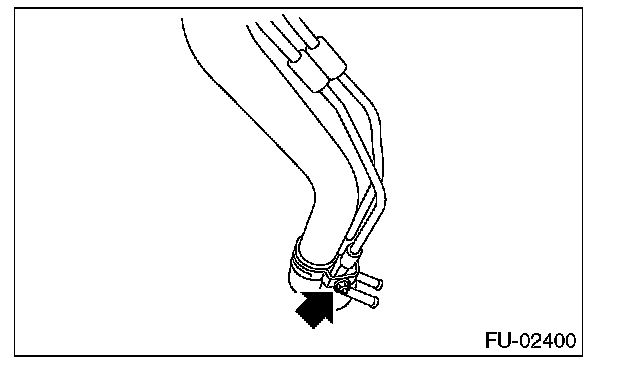

3. Remove the shut valve from the fuel filler pipe.

ASSEMBLY

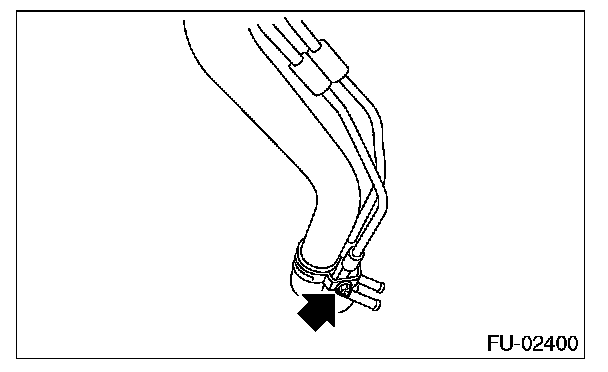

1. Install the shut pipe to the fuel filler pipe.

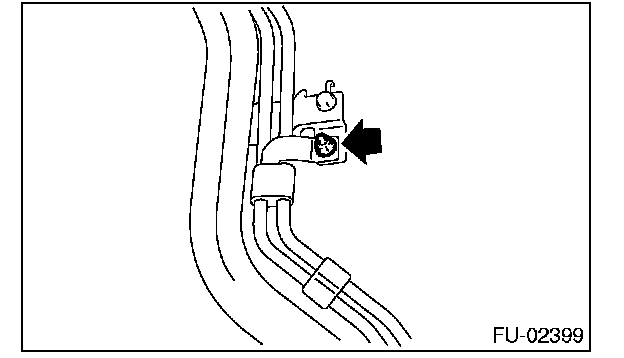

2. Tighten the nuts which secure the evaporation pipe assembly to the fuel filler pipe.









Tightening torque: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

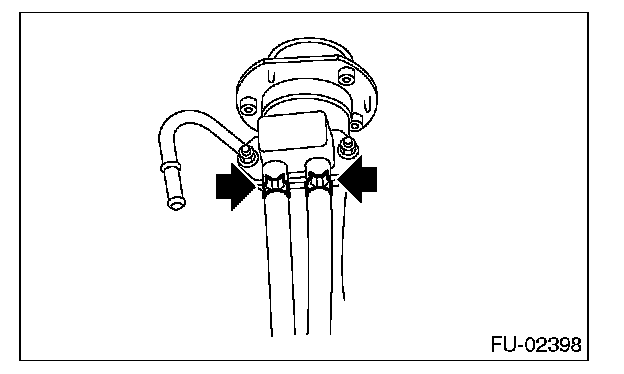

3. Connect the evaporation hose to the shut valve.
