Home >> Subaru >> 2007 >> Outback F6-3.0L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> General Diagnostic Table

General Diagnostic Table

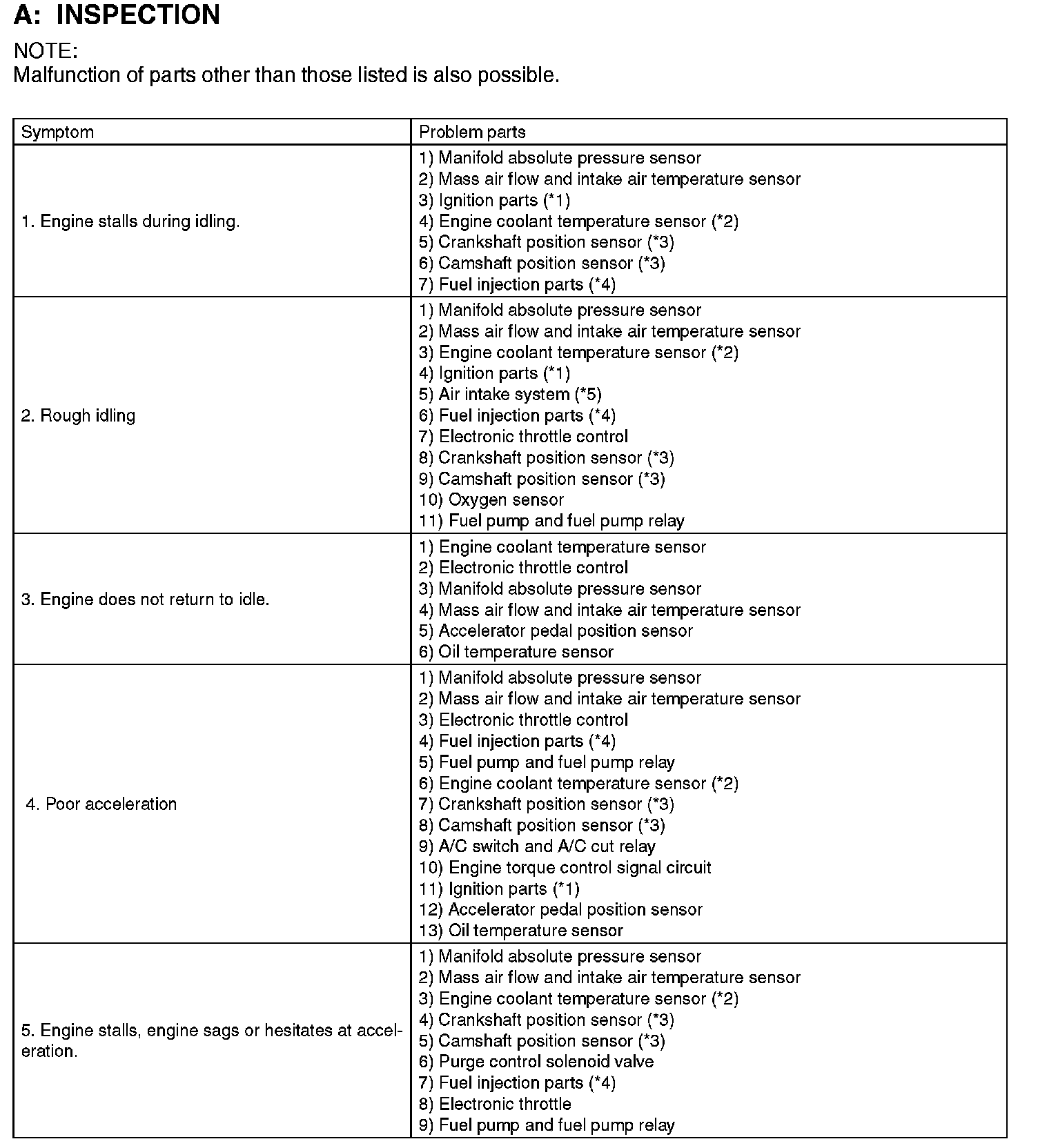

General Diagnostic Table (Part 1):

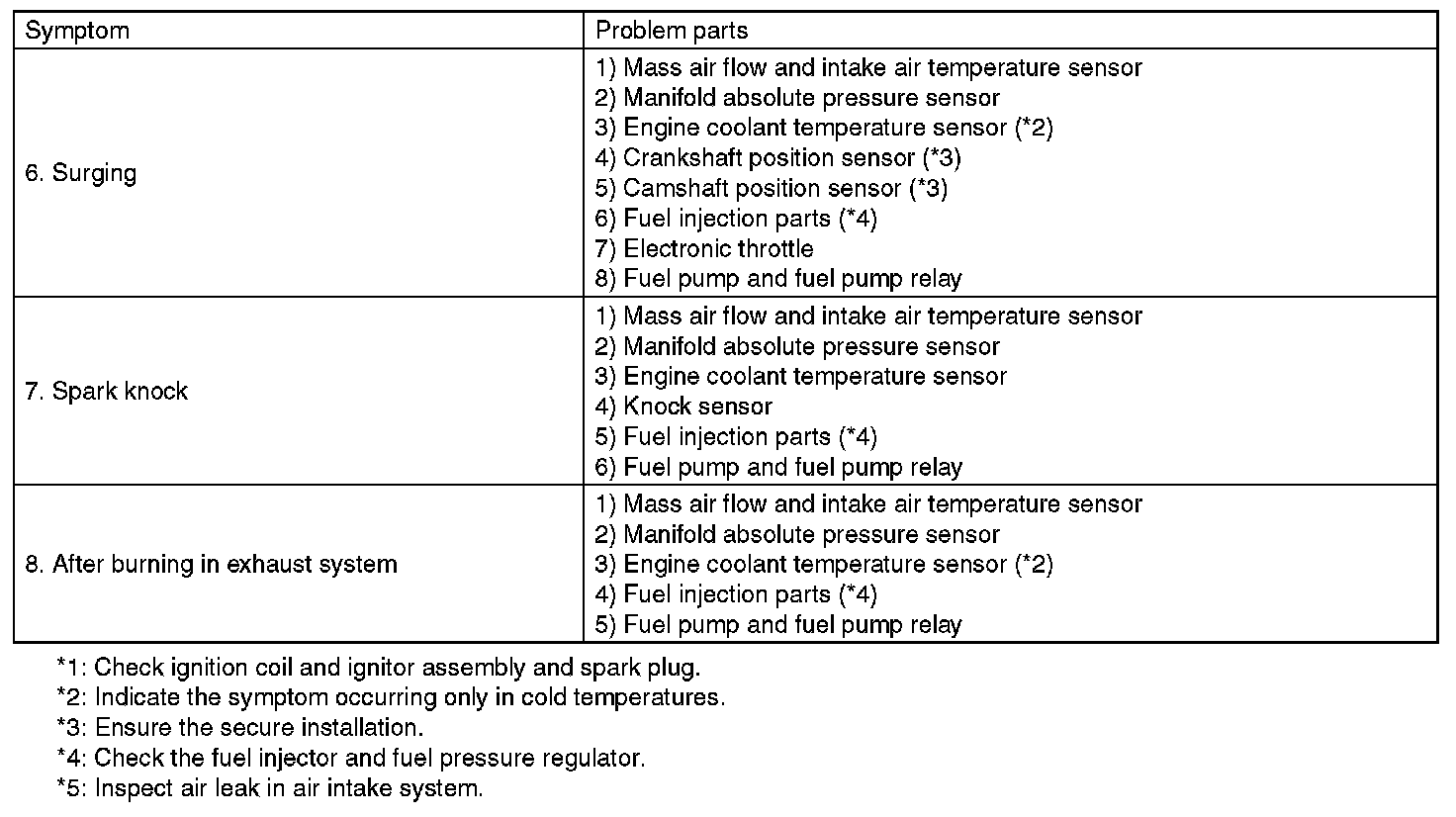

General Diagnostic Table (Part 2):
