B31-B292 & B315-B404 & AB1-AB9
B31-B292 & B315-B404 & AB1-AB9
Bulkhead Wiring Harness (In Compartment)

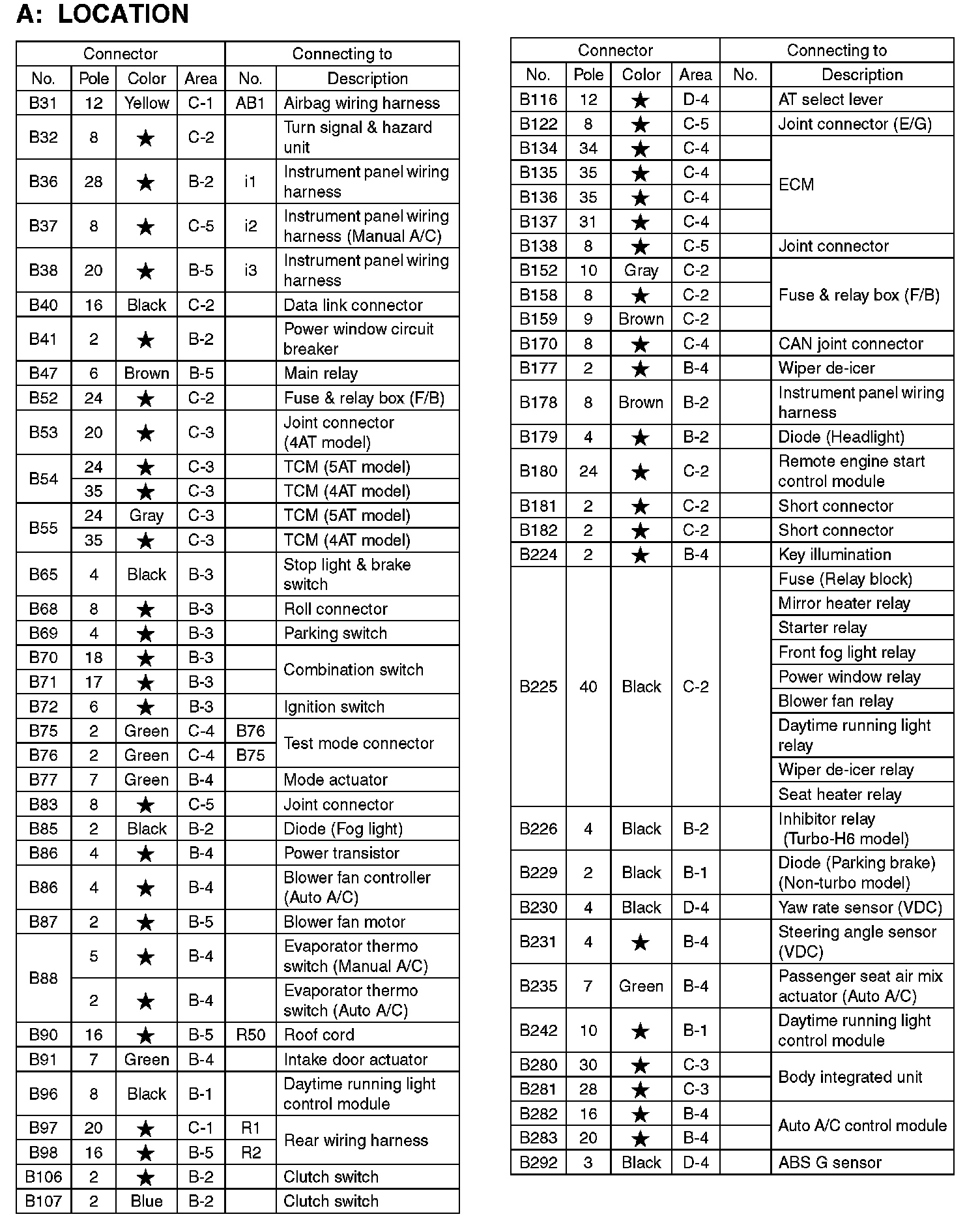

B31-B292:

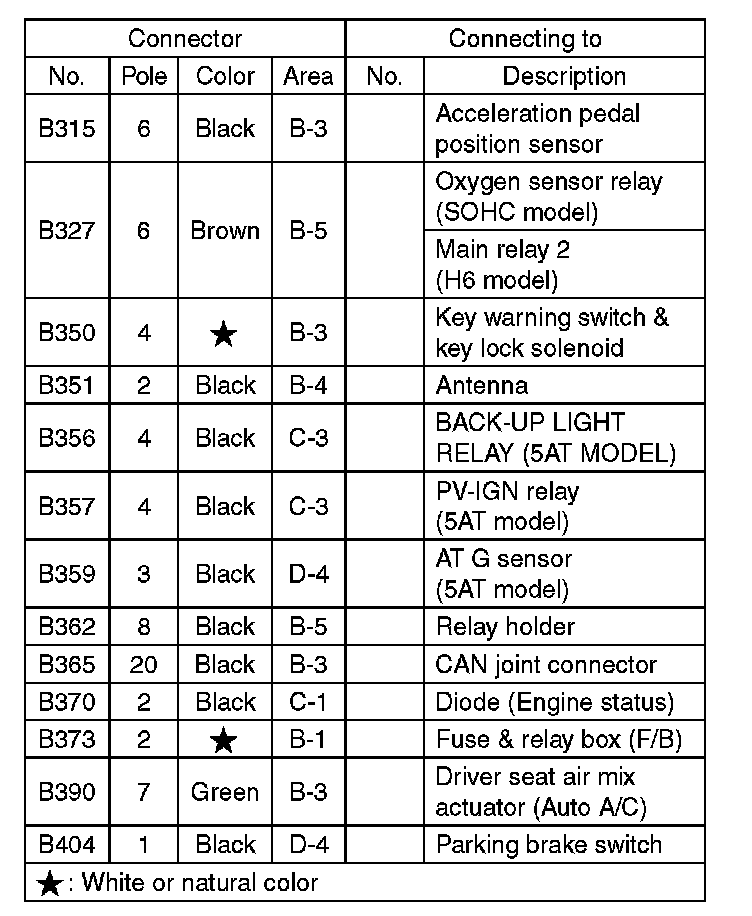

B315-B404:

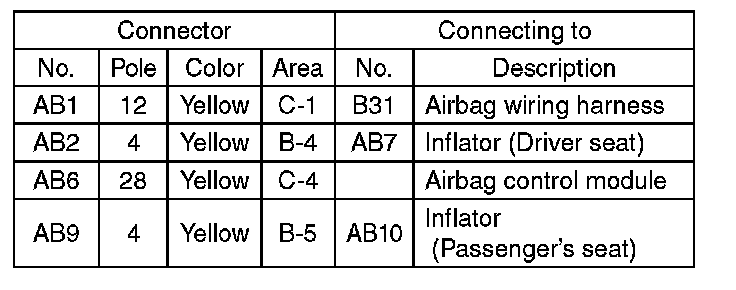

AB1-AB9:

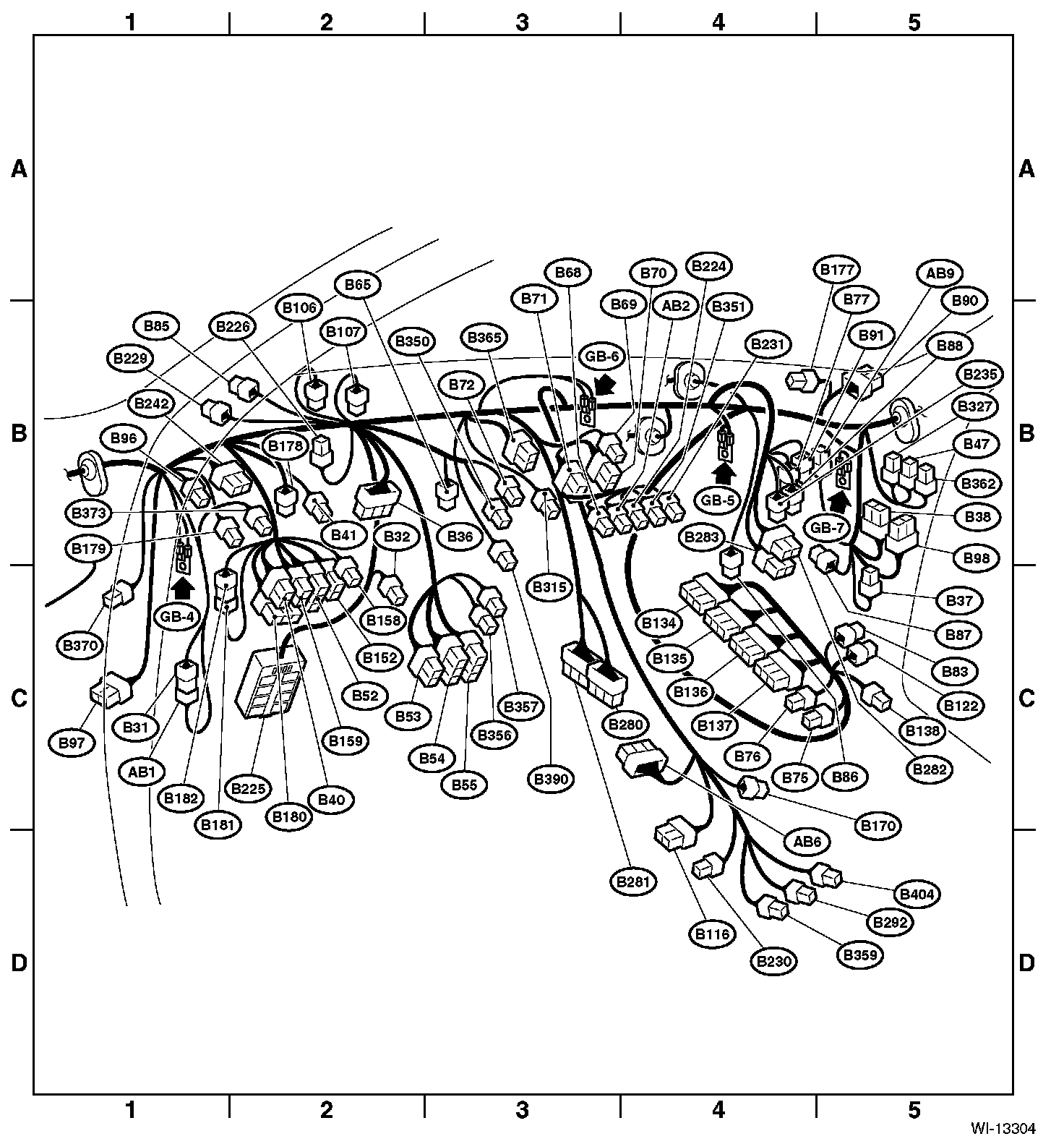

Area View:
