P0715

DTC P0715 INPUT/TURBINE SPEED SENSOR CIRCUIT

DTC DETECTING CONDITION
Input signal circuit of TCM is open or shorted.

TROUBLE SYMPTOM
Excessive shift shock

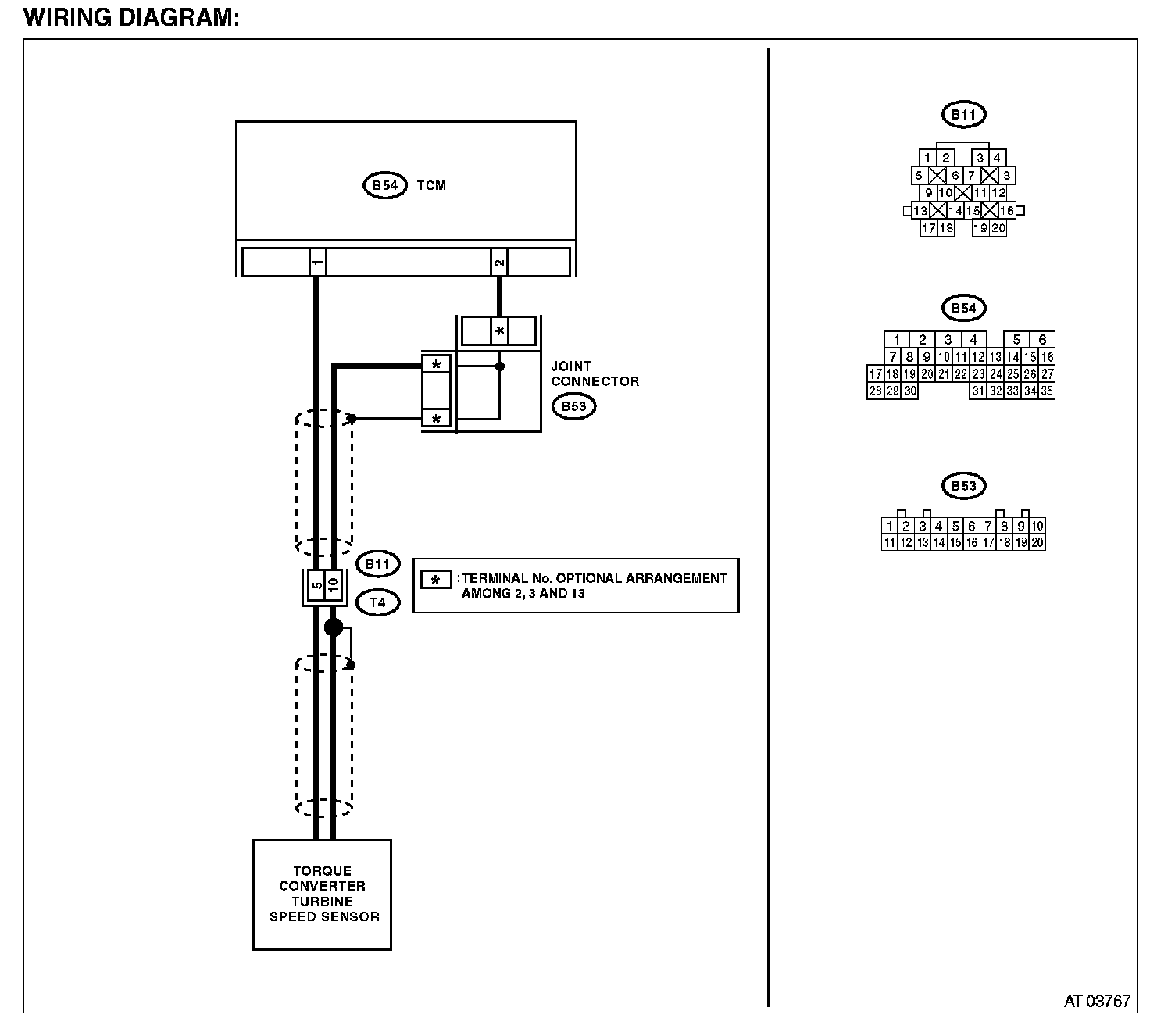

WIRING DIAGRAM:

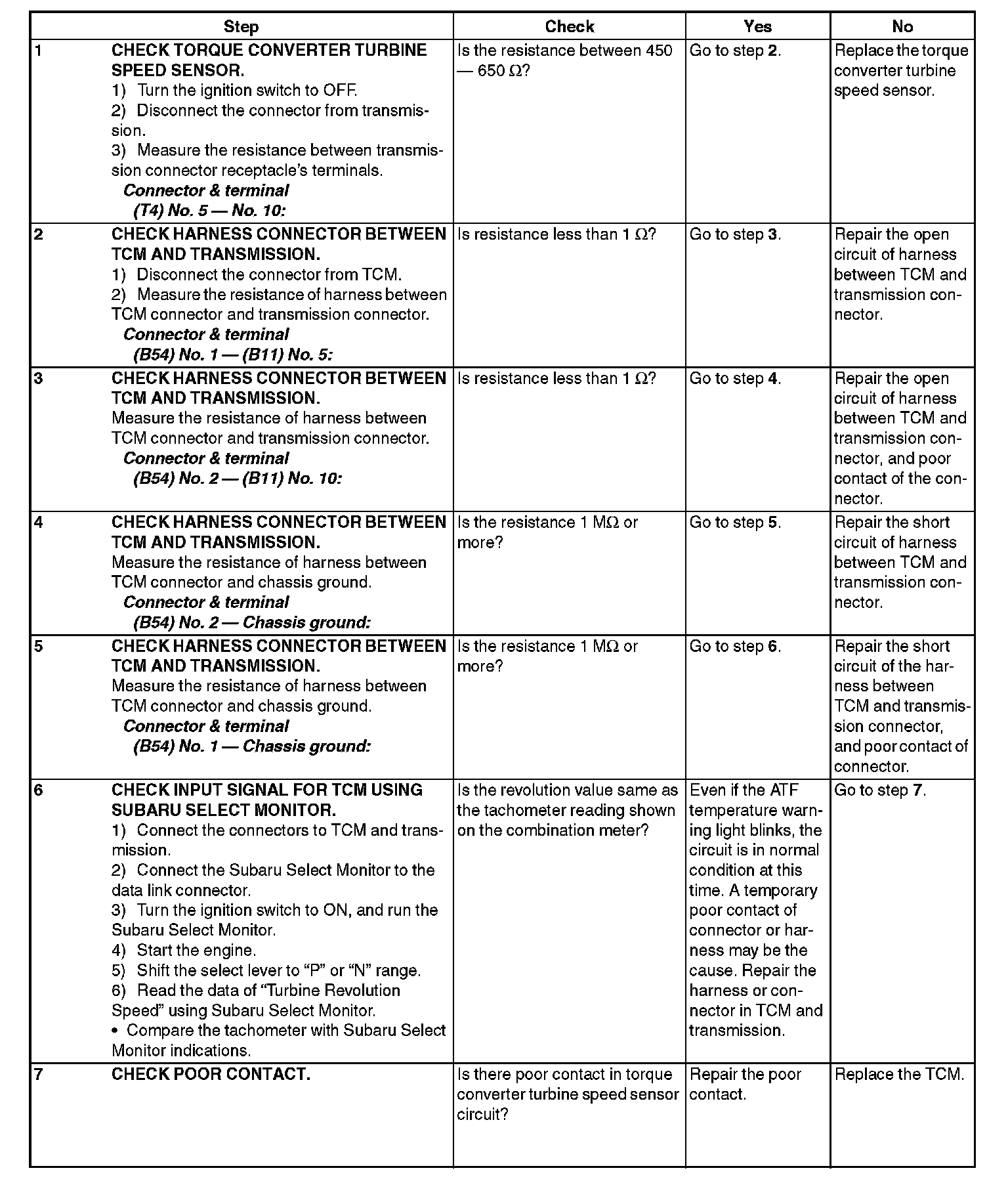

Step 1-7:
