P0451

DTC P0451 EVAPORATIVE EMISSION CONTROL SYSTEM PRESSURE SENSOR

DTC DETECTING CONDITION:
- Detected when two consecutive driving cycles with fault occur.

CAUTION: After repair or replacement of faulty parts, perform Clear Memory Mode and Inspection Mode.

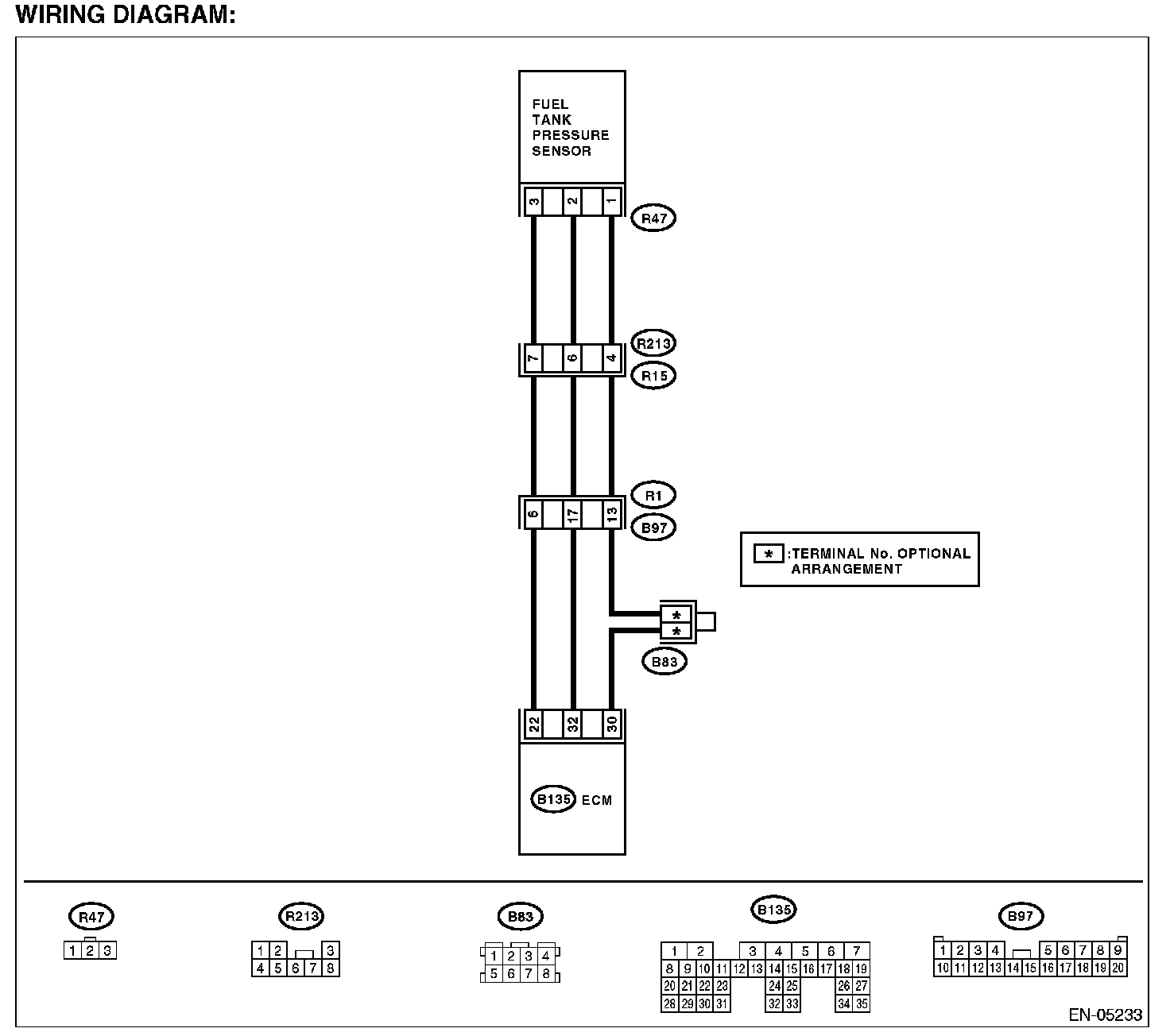

Wiring Diagram:

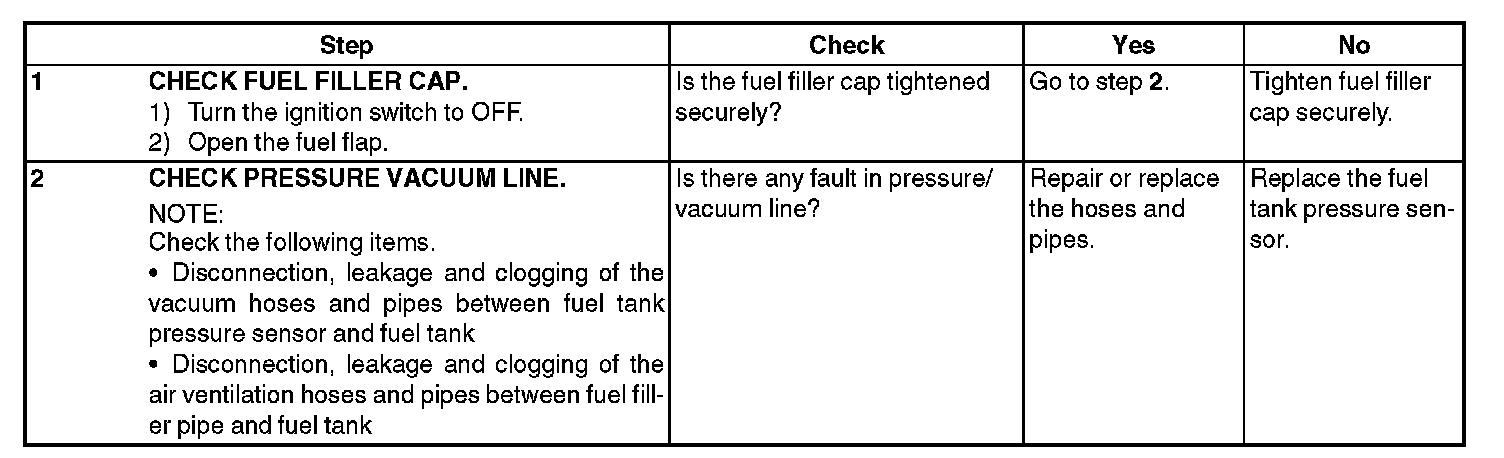

Step 1-2:
