Removal and Installation

Intercooler

REMOVAL

1. Remove the collector cover.
2. Loosen the clamp and remove the air by-pass pipe (A) from the air by-pass valve.




3. Loosen the clamp, and then remove the intake duct (B) from the intercooler.

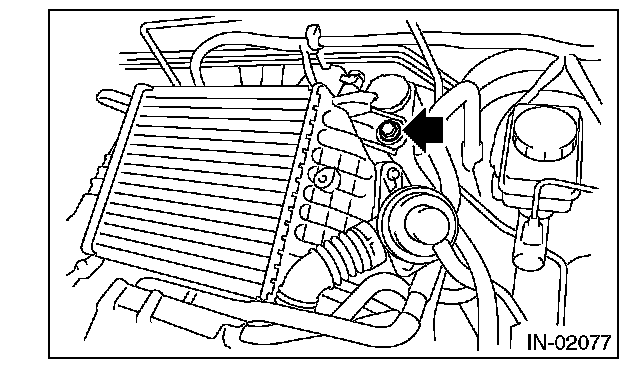

4. Remove the bolts which secure the intake duct to the turbocharger.

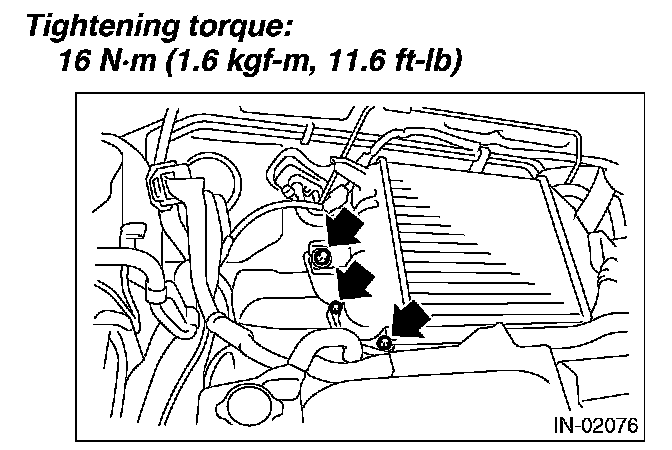

5. Remove the bolts which secure the intercooler to the bracket, and remove the intercooler.

INSTALLATION







Install in the reverse order of removal.
