Oil Pressure Sender: Service and Repair

REMOVAL
1. Remove the collector cover.
2. Remove the generator from bracket.

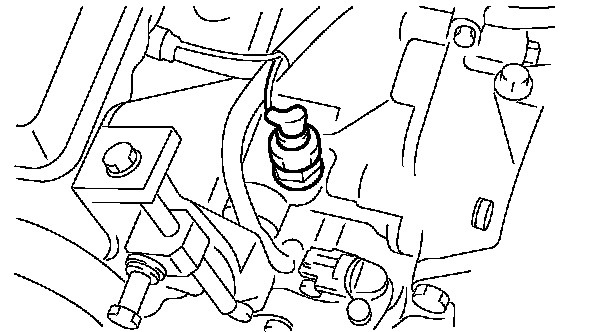

3. Disconnect the terminal from oil pressure switch.

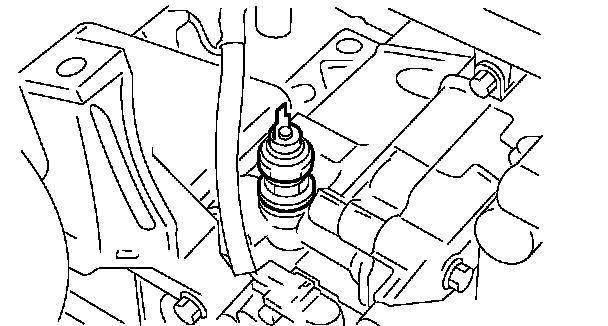

4. Remove the oil pressure switch.

INSTALLATION

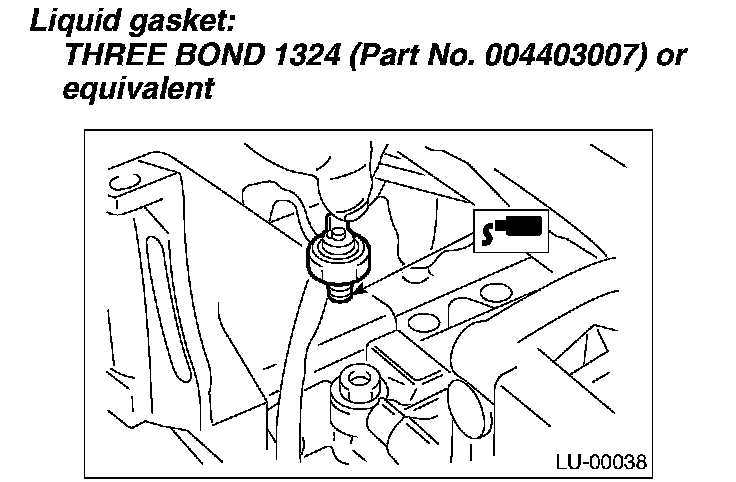

1. Apply liquid gasket to the oil pressure switch threads.

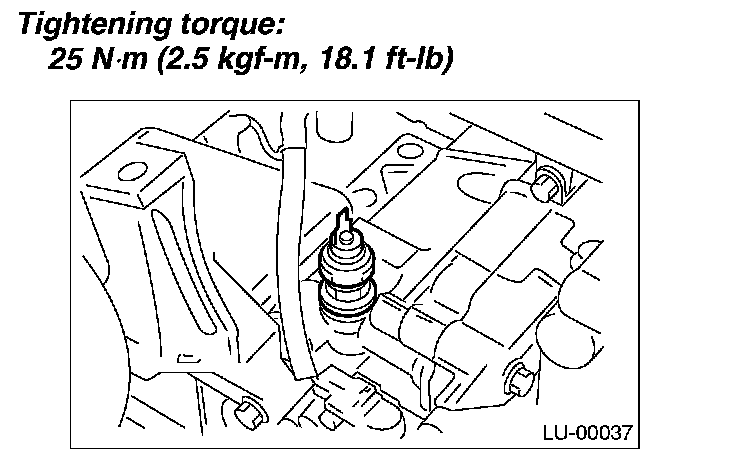

2. Install the oil pressure switch onto engine block.

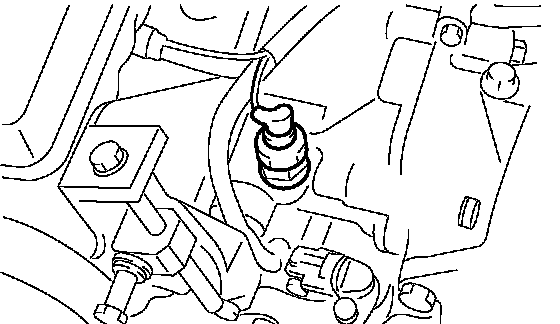

3. Connect the terminal to oil pressure switch.
4. Install the generator to bracket.
5. Install the collector cover.

INSPECTION
Make sure oil does not leak or seep from where the oil pressure switch is installed.
