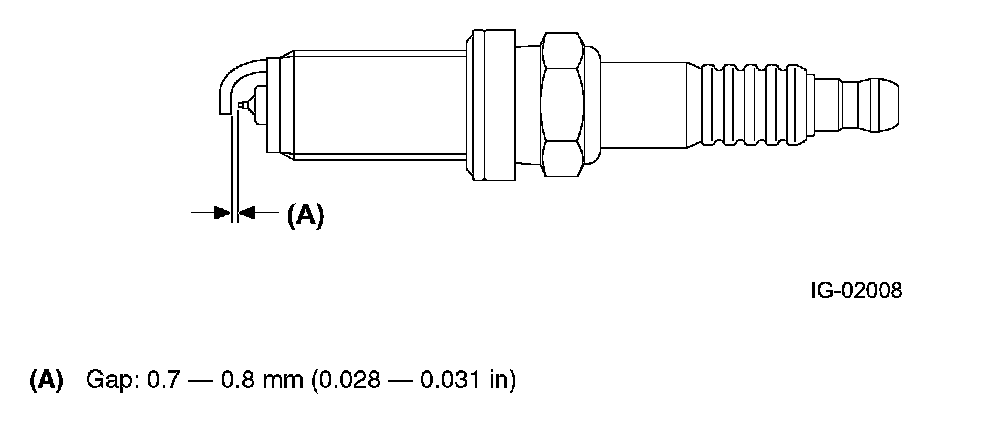

Spark Plug:
The
spark plug
has an iridium tipped electrode. The thread
diameter is 14 mm (0.551 in)
and the gap is controlled to a value
between 0.7 and 0.8 mm (0.028 and 0.031 in)
.
