Throttle Body: Service and Repair

Throttle Body

REMOVAL
1. Remove the collector cover.

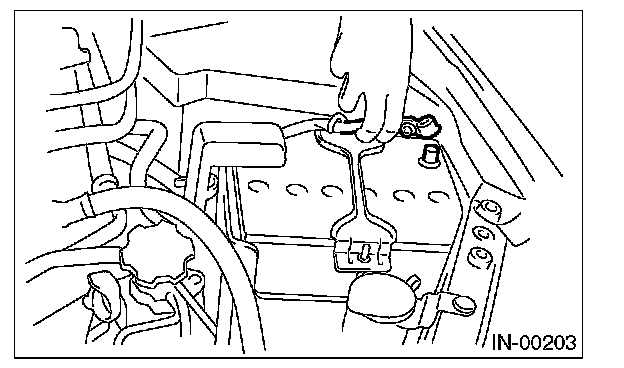

2. Disconnect the ground cable from battery.
3. Remove the intercooler.

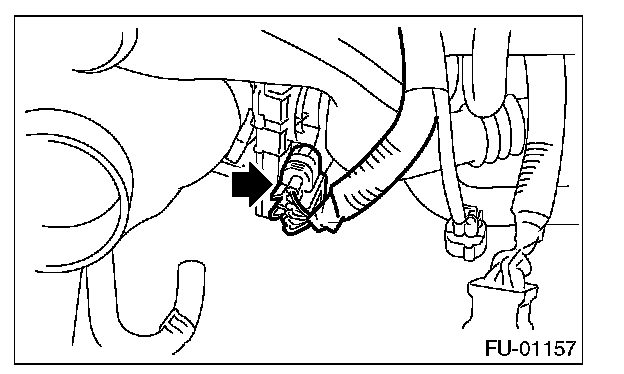

4. Disconnect the connectors from the throttle position sensor.

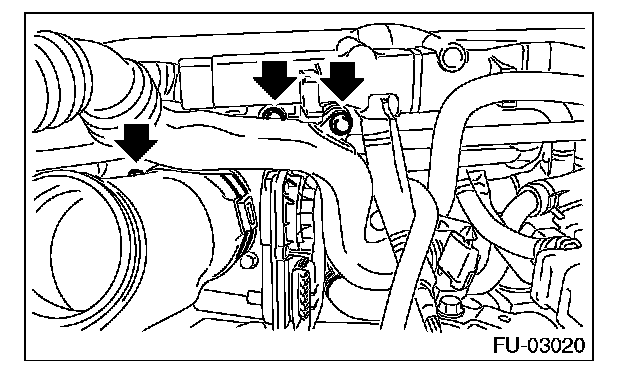

5. Remove the bolts which secure the air by-pass pipe and PCV pipe to the intake manifold, and loosen the clamp which connects the throttle body and duct.
6. Remove the duct from the throttle body.

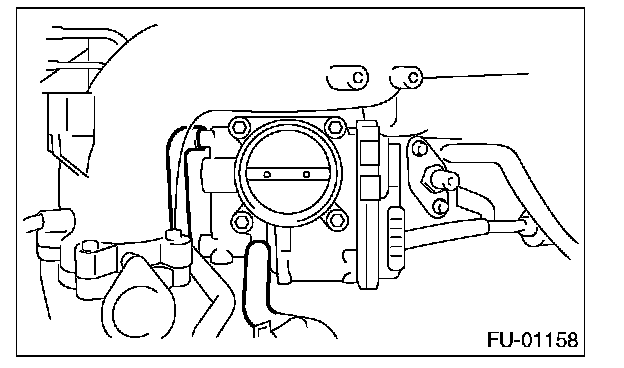

7. Disconnect the engine coolant hoses from the throttle body.

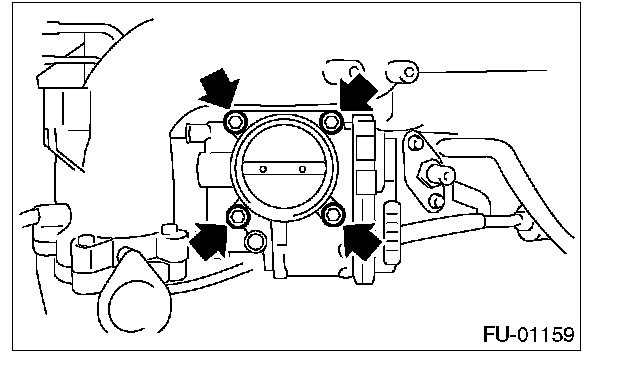

8. Remove the bolts which secure the throttle body to the intake manifold.

INSTALLATION
Install in the reverse order of removal.

NOTE: Use new O-rings.






Tightening torque: 8 N.m (0.8 kgf-m, 5.9 ft-lb)
