Fuel Pump Circuit

FUEL PUMP CIRCUIT

CAUTION: After repairing or replacing the defective part, perform the Clear Memory Mode and Inspection Mode.

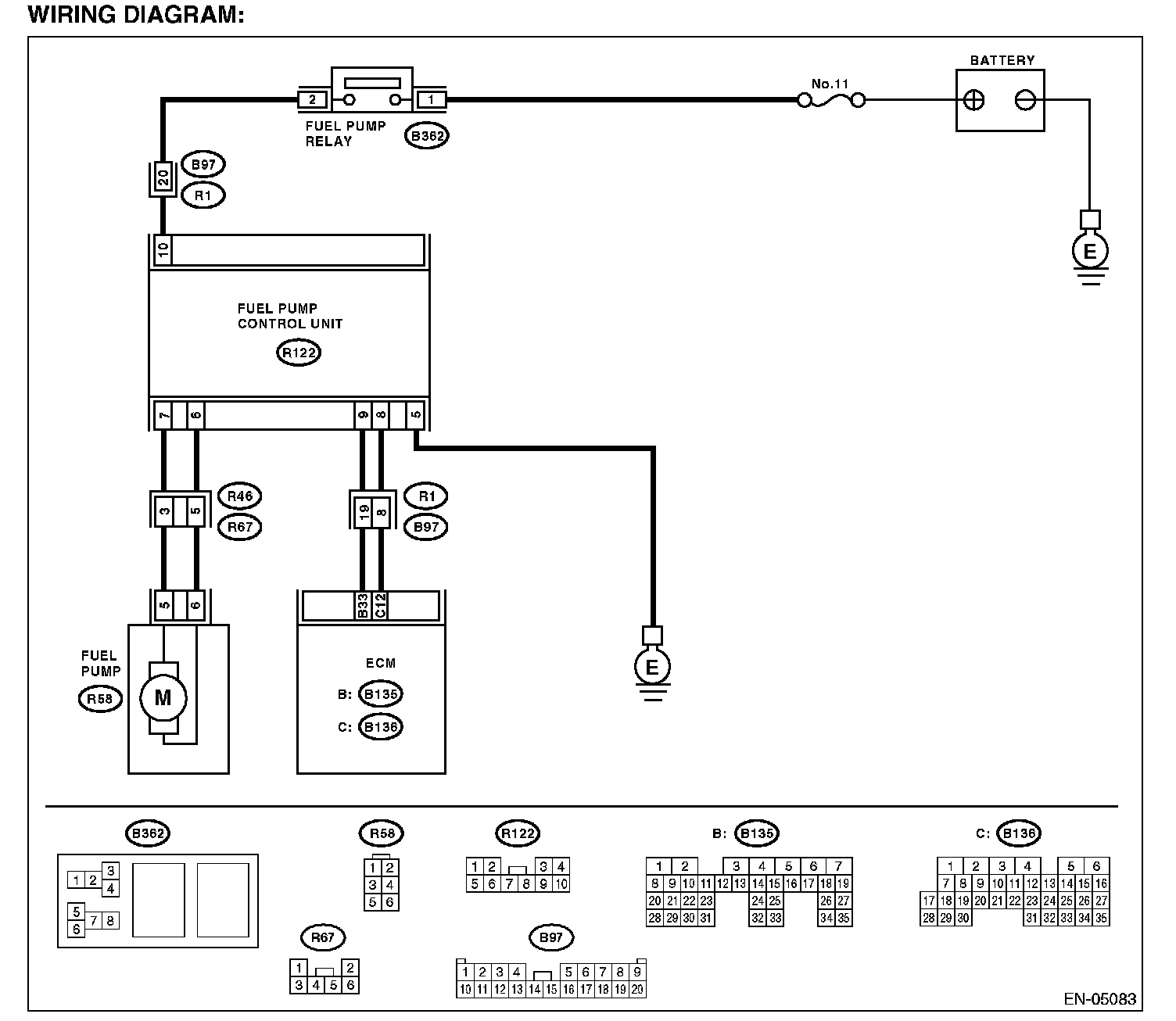

Wiring Diagram:

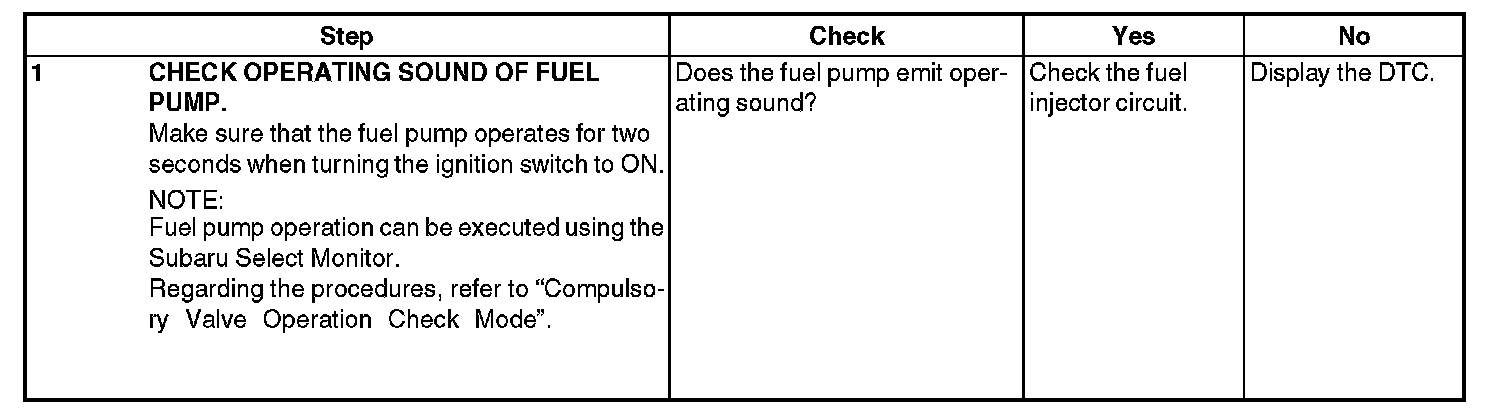

Step 1:
