AT Model

DTC P0851 NEUTRAL SWITCH INPUT CIRCUIT LOW (AT MODEL)

1. OUTLINE OF DIAGNOSIS
Detect the open or short circuit of the neutral SW.
Judge NG when the ECM neutral terminal input differs from the reception data from TCM.

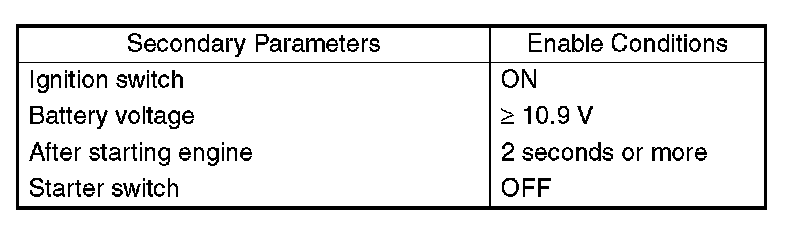

2. ENABLE CONDITION

3. GENERAL DRIVING CYCLE
Perform the diagnosis continuously in 2 seconds or more after starting the engine.

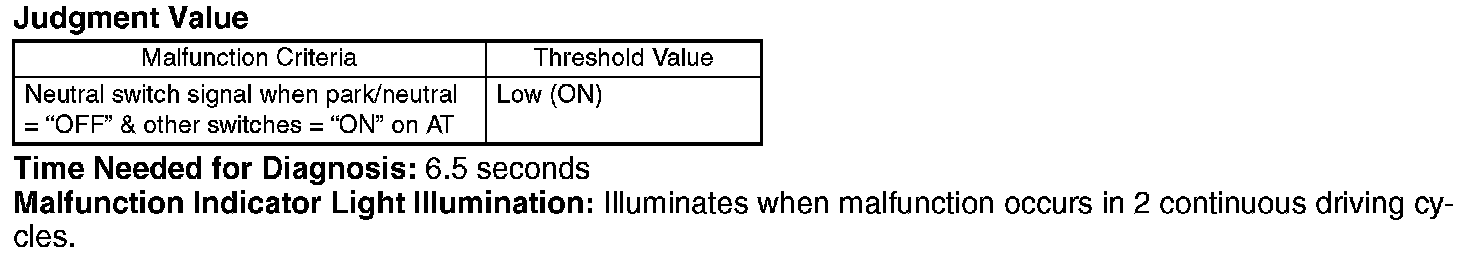

4. DIAGNOSTIC METHOD
Judge NG when the continuous time of completing the malfunction criteria becomes more than 6.5 seconds. Judge OK and clear NG when the malfunction criteria are not completed.

5. DTC CLEAR CONDITION
- When the OK idling cycle was completed 40 times in a row
- When "Clear Memory" was performed

6. MALFUNCTION INDICATOR LIGHT CLEAR CONDITION
- When the OK driving cycle was completed 3 times in a row
- When "Clear Memory" was performed

7. FAIL SAFE
None

8. ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)
