P0245
DTC P0245 TURBO/SUPER CHARGER WASTEGATE SOLENOID "A" LOW1. OUTLINE OF DIAGNOSIS
Detect the open or short circuit of wastegate control solenoid valve. Judge NG when the terminal output voltage remains Low during outputting the duty signal.

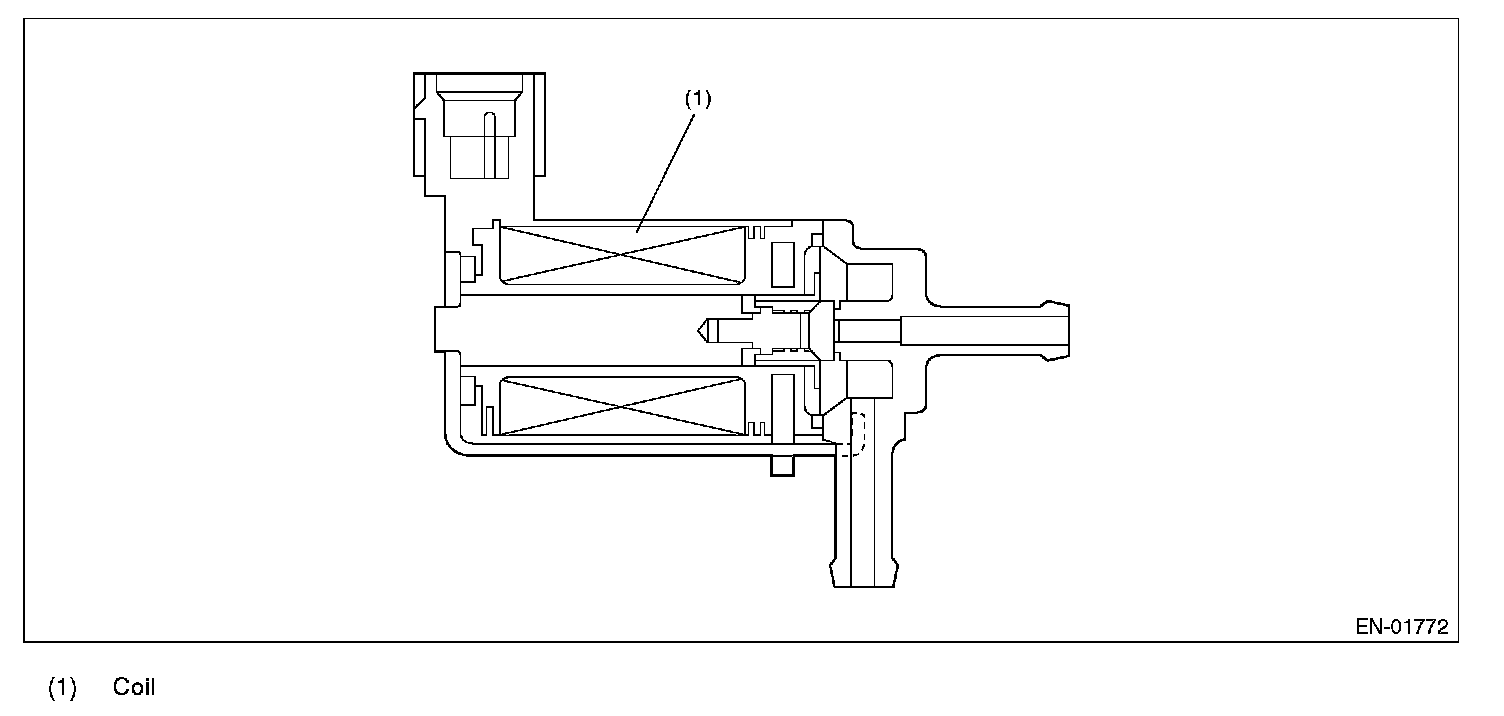

2. COMPONENT DESCRIPTION

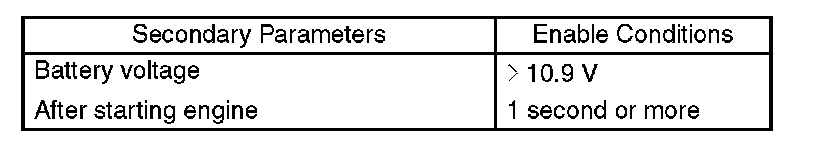

3. ENABLE CONDITION
4. GENERAL DRIVING CYCLE
Perform the diagnosis continuously after starting the engine.
5. DIAGNOSTIC METHOD

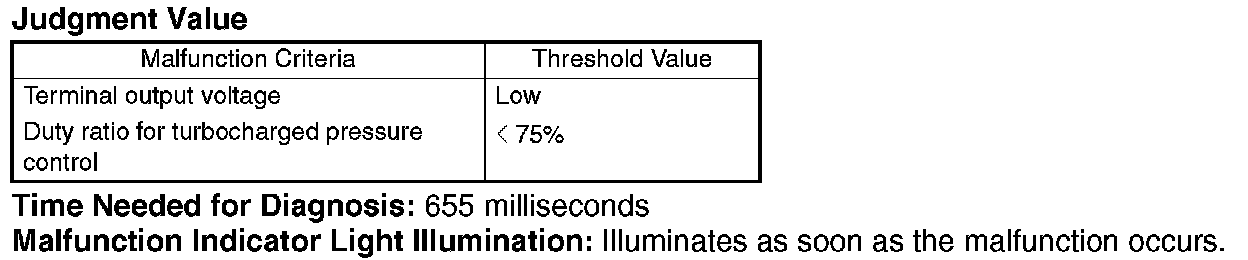

- Abnormality Judgment
Judge NG when the continuous time until completing the malfunction criteria becomes more than 655 milliseconds.

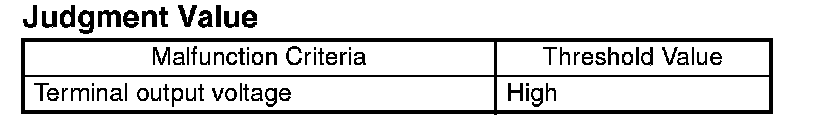

- Normality Judgment
Judge OK and clear the NG when the malfunction criteria are completed.
6. DTC CLEAR CONDITION
- When the OK idling cycle was completed 40 times in a row
- When "Clear Memory" was performed
7. MALFUNCTION INDICATOR LIGHT CLEAR CONDITION
- When the OK driving cycle was completed 3 times in a row
- When "Clear Memory" was performed
8. FAIL SAFE
None
9. ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)
