P0125

DTC P0125 INSUFFICIENT ENGINE COOLANT TEMPERATURE FOR CLOSED LOOP FUEL CONTROL

1. OUTLINE OF DIAGNOSIS
Detect the malfunction of engine coolant temperature output property. Judge NG when the engine coolant temperature does not rise whereas it seemed to rise from the viewpoint of the engine condition.

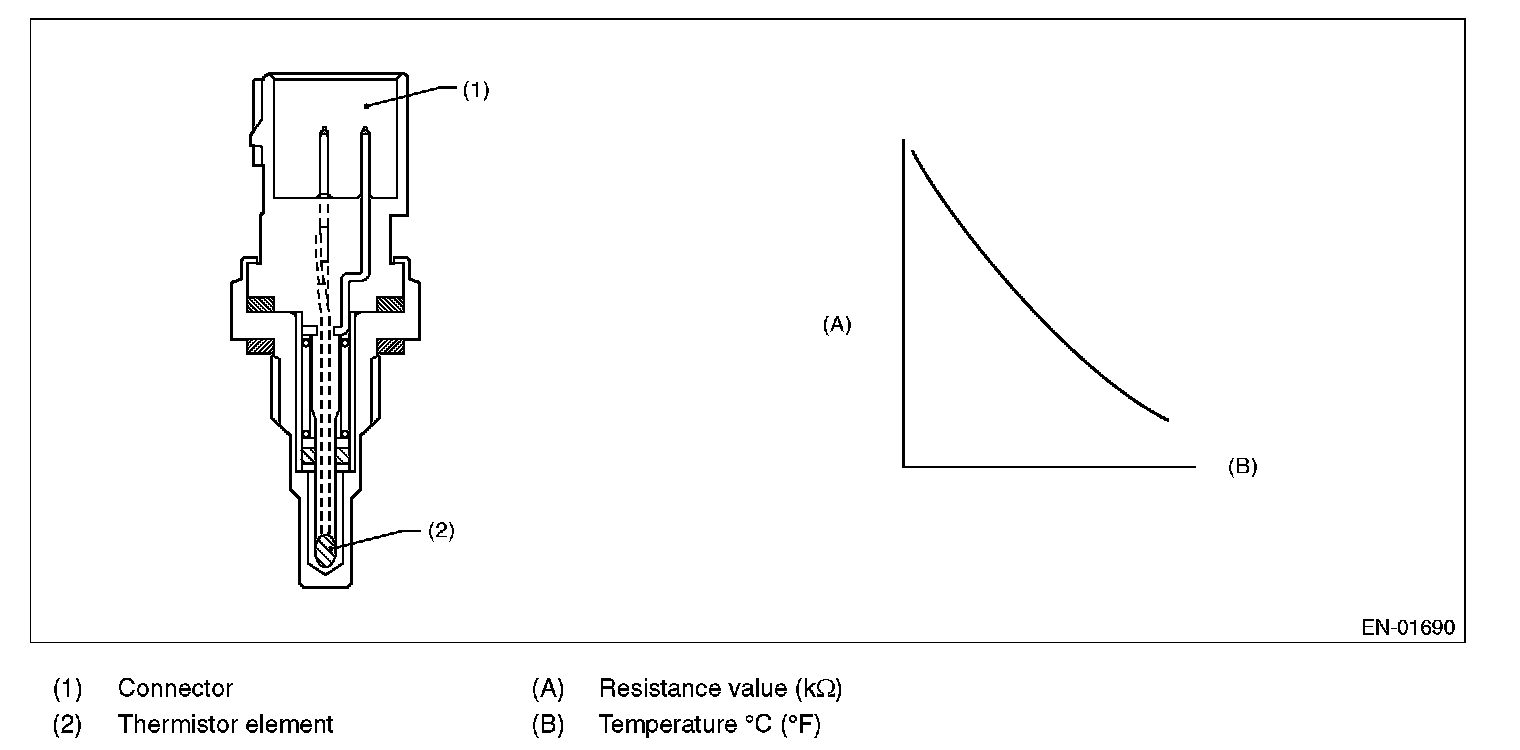

2. COMPONENT DESCRIPTION

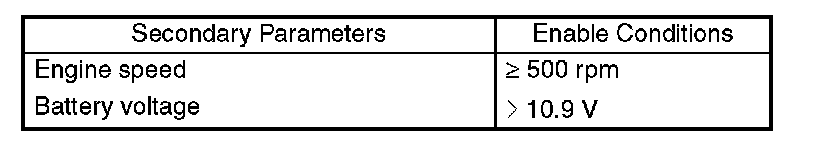

3. ENABLE CONDITION

4. GENERAL DRIVING CYCLE
Perform the diagnosis only once after engine starting.

5. DIAGNOSTIC METHOD

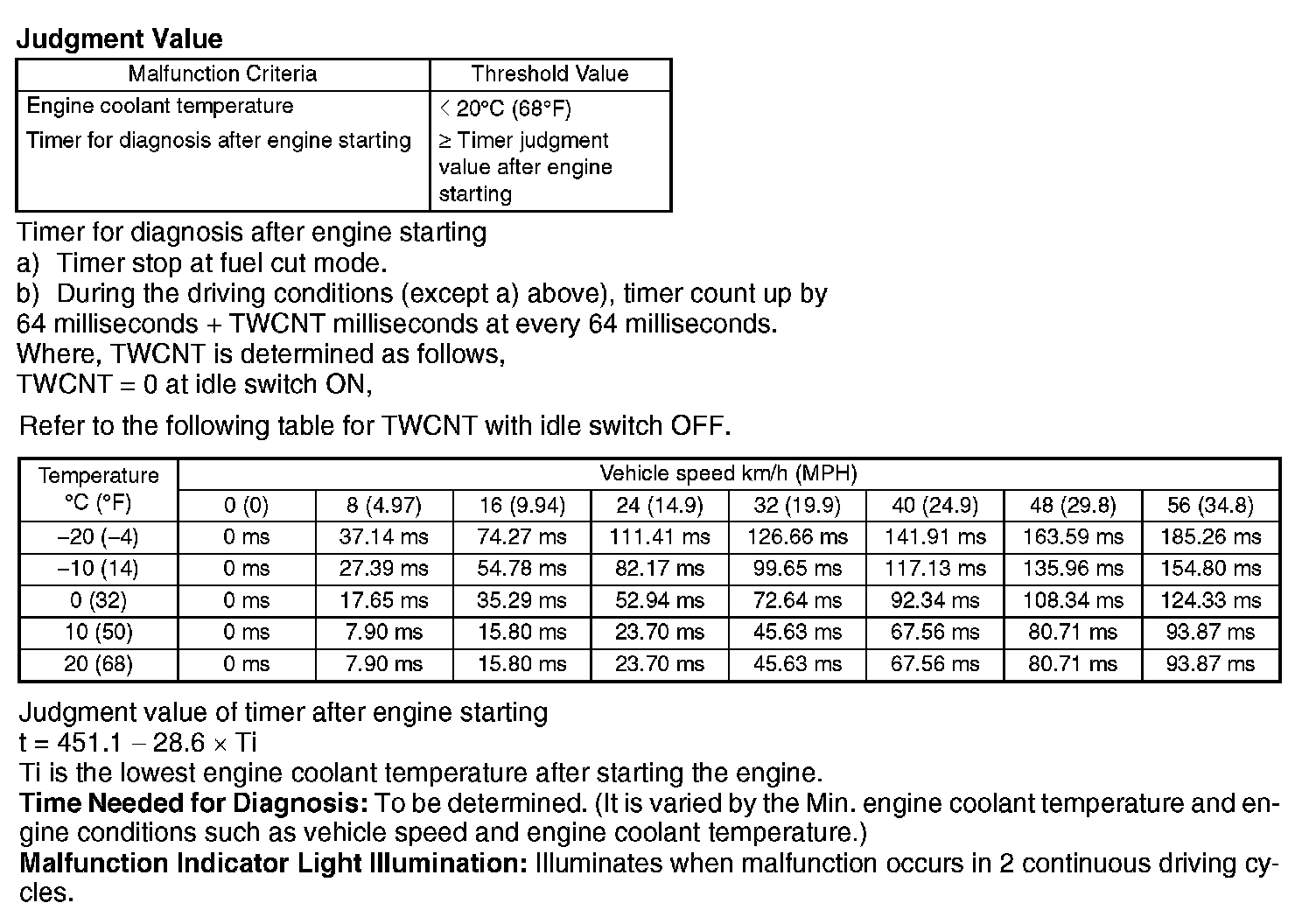

- Abnormality Judgment
Judge NG when the malfunction criteria are completed.

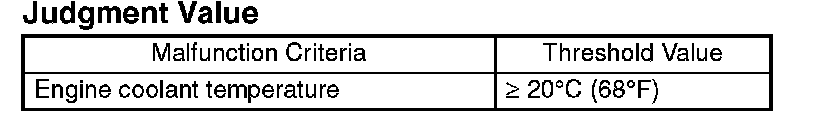

- Normality Judgment
Judge OK and clear the NG when the malfunction criteria are completed.

6. DTC CLEAR CONDITION
- When the OK idling cycle was completed 40 times in a row
- When "Clear Memory" was performed

7. MALFUNCTION INDICATOR LIGHT CLEAR CONDITION
- When the OK driving cycle was completed 3 times in a row
- When "Clear Memory" was performed

8. FAIL SAFE
- Engine coolant temperature process: Fix the engine coolant temperature at 70 degree C (158 degree F).
- ISC feedback: Calculate the target engine speed setting the engine coolant temperature to 70 degree C (158 degree F).
- ISC learning: Not allowed to learn.
- Heavy fuel judgment control: Not allowed to carry out the heavy judgment.Air conditioner control: Not allowed to turn the air conditioner to ON.
- Radiator fan control: Both main and sub fan are in High driving.
- Increase compensation factor at high engine coolant temperature: Increase normally occurs with high temperature and other conditions; however, occurs with other conditions except engine coolant temperature condition.
- AVCS control: Make the oil flow control valve driving output to be Duty=0%.
- Tumble generator valve control: Open the tumble generator valve.

9. ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)
