EXCESSIVE LATERAL G SENSOR SIGNAL

AY: DTC C0073 EXCESSIVE LATERAL G SENSOR SIGNAL

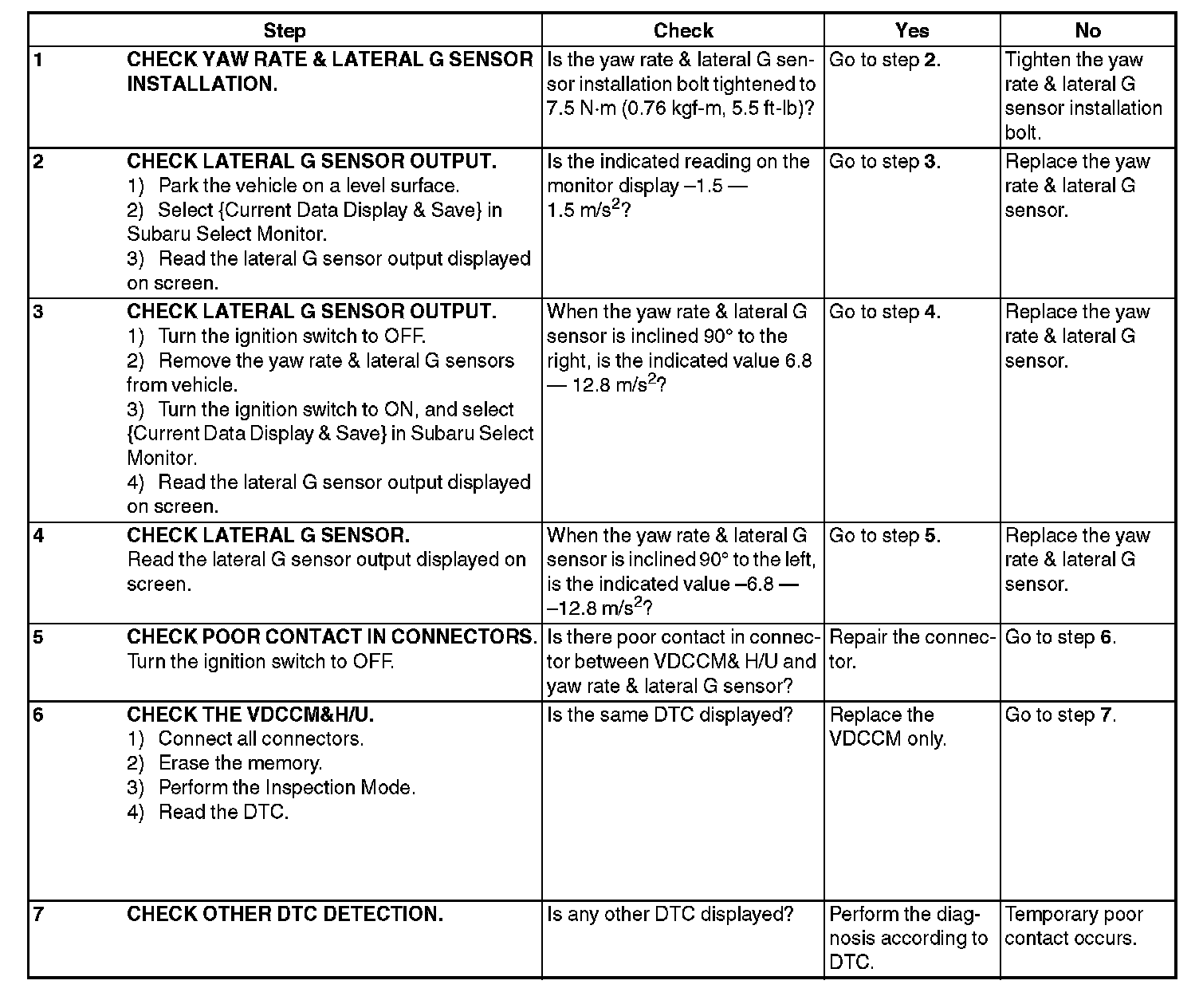

DTC DETECTING CONDITION
Lateral G sensor malfunction

TROUBLE SYMPTOM
VDC does not operate.

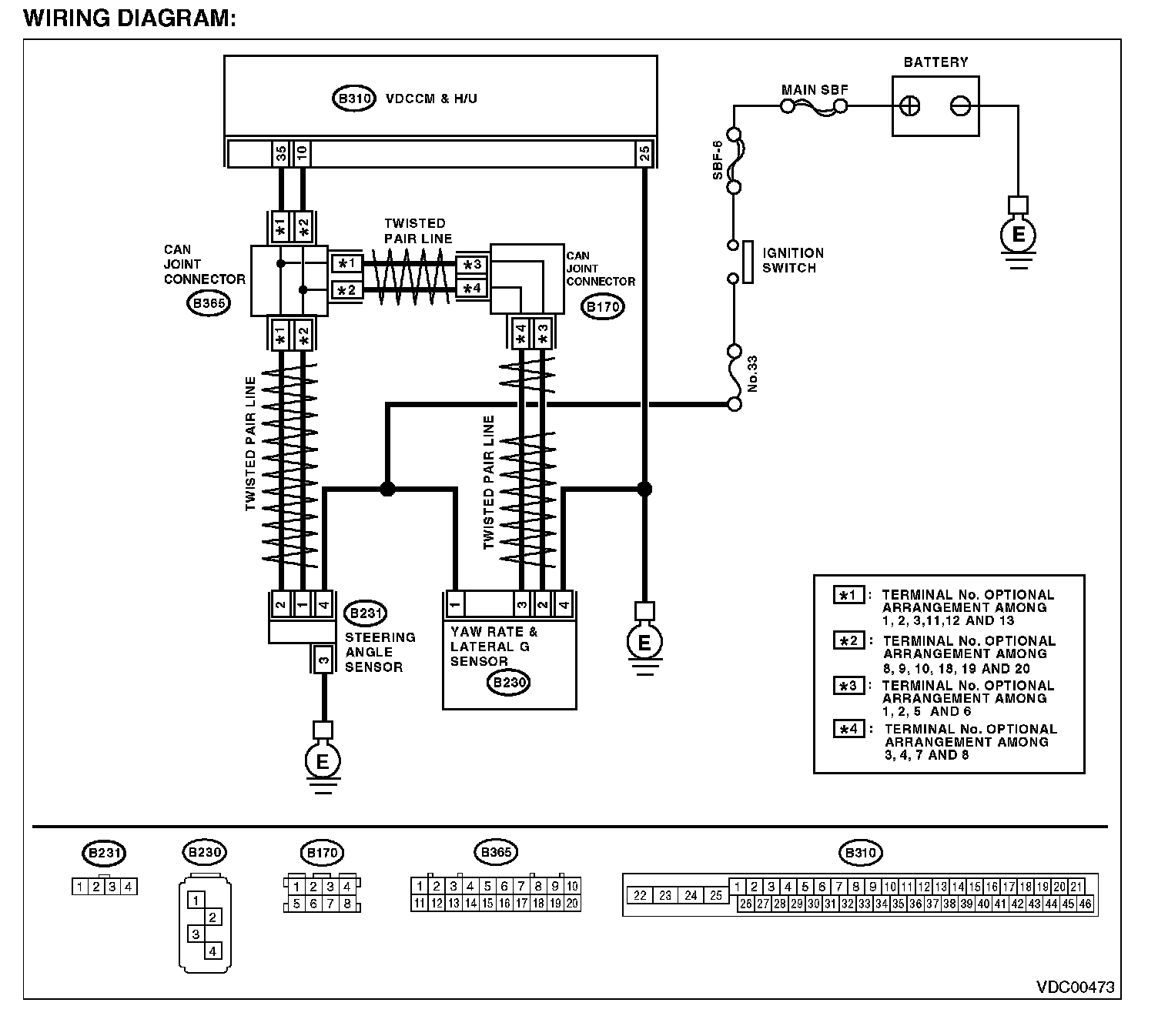

WIRING DIAGRAM

WIRING DIAGRAM:




AY: C0073 EXCESSIVE LATERAL G SENSOR SIGNAL:
