CHANGE RANGE OF YAW RATE SENSOR SIGNAL IS TOO BIG
AT: DTC C0072 CHANGE RANGE OF YAW RATE SENSOR SIGNAL IS TOO BIGDTC DETECTING CONDITION
Defective yaw rate sensor
TROUBLE SYMPTOM
VDC does not operate.

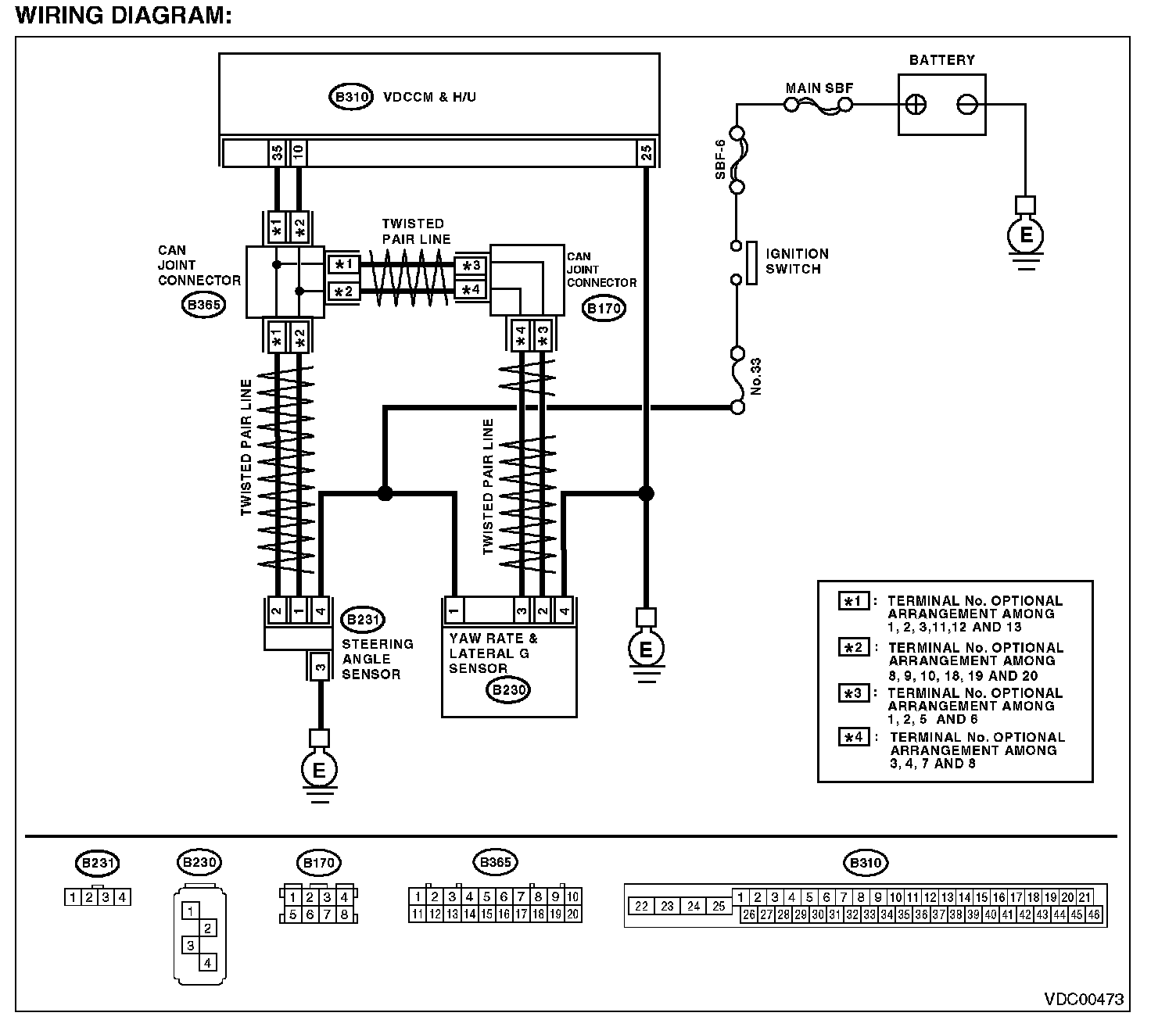

WIRING DIAGRAM
WIRING DIAGRAM:

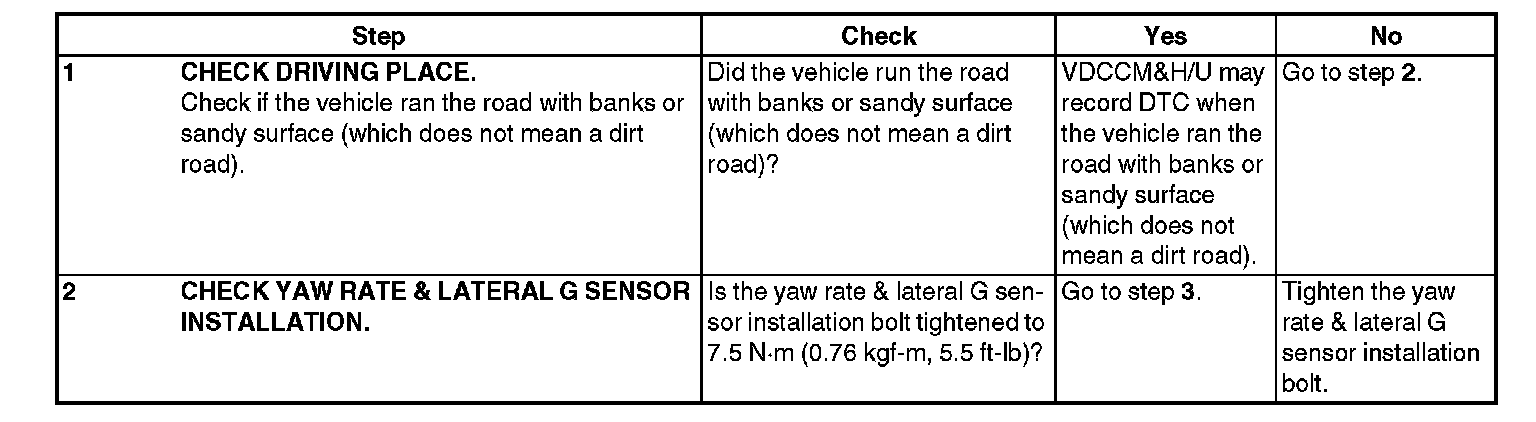

AT: C0072 CHANGE RANGE OF YAW RATE SENSOR SIGNAL IS TOO BIG (PART 1):

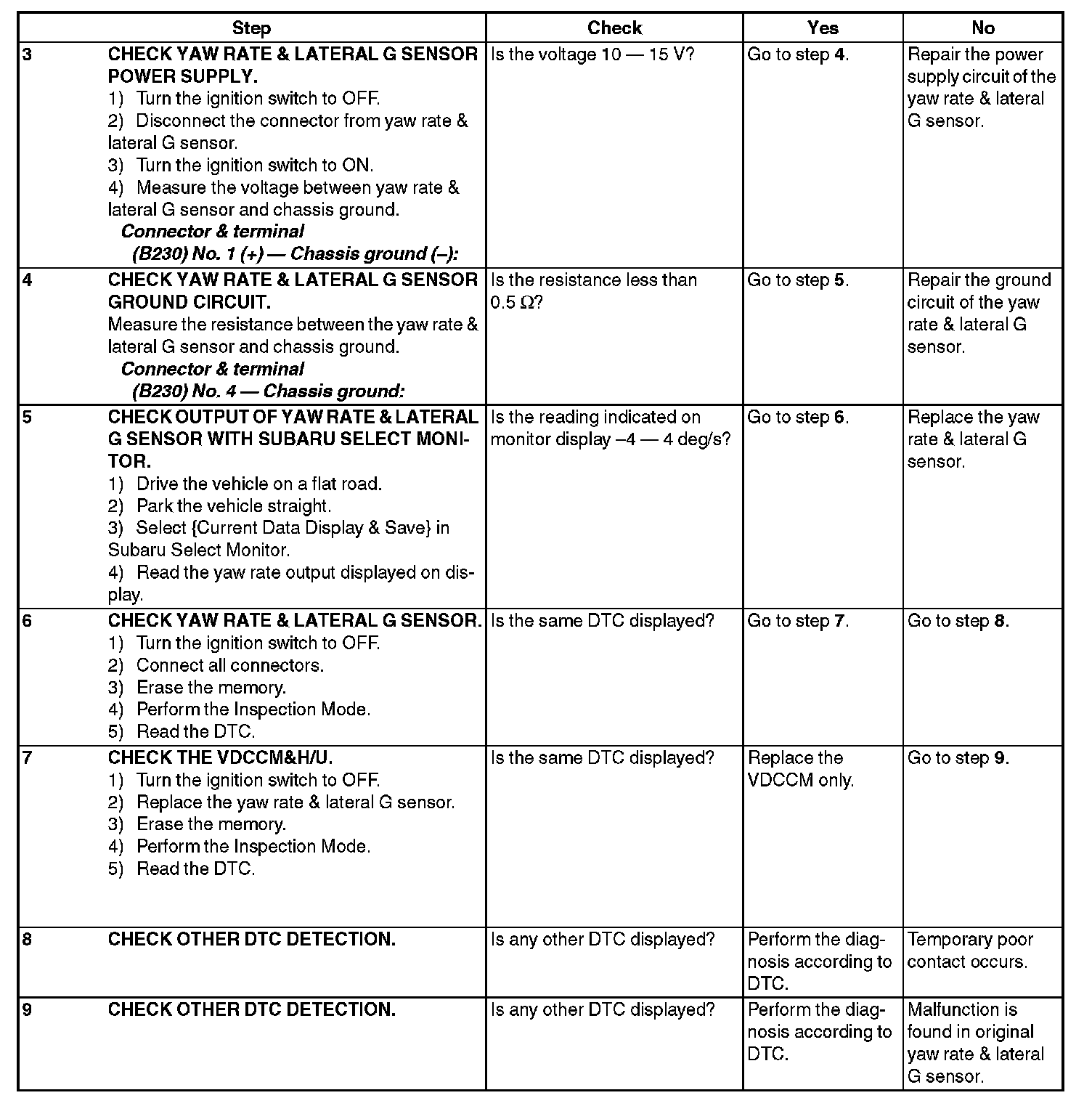

AT: C0072 CHANGE RANGE OF YAW RATE SENSOR SIGNAL IS TOO BIG (PART 2):
