ABNORMAL YAW RATE SENSOR OUTPUT

AQ: DTC C0072 ABNORMAL YAW RATE SENSOR OUTPUT

DTC DETECTING CONDITION
Defective yaw rate sensor

TROUBLE SYMPTOM
VDC does not operate.

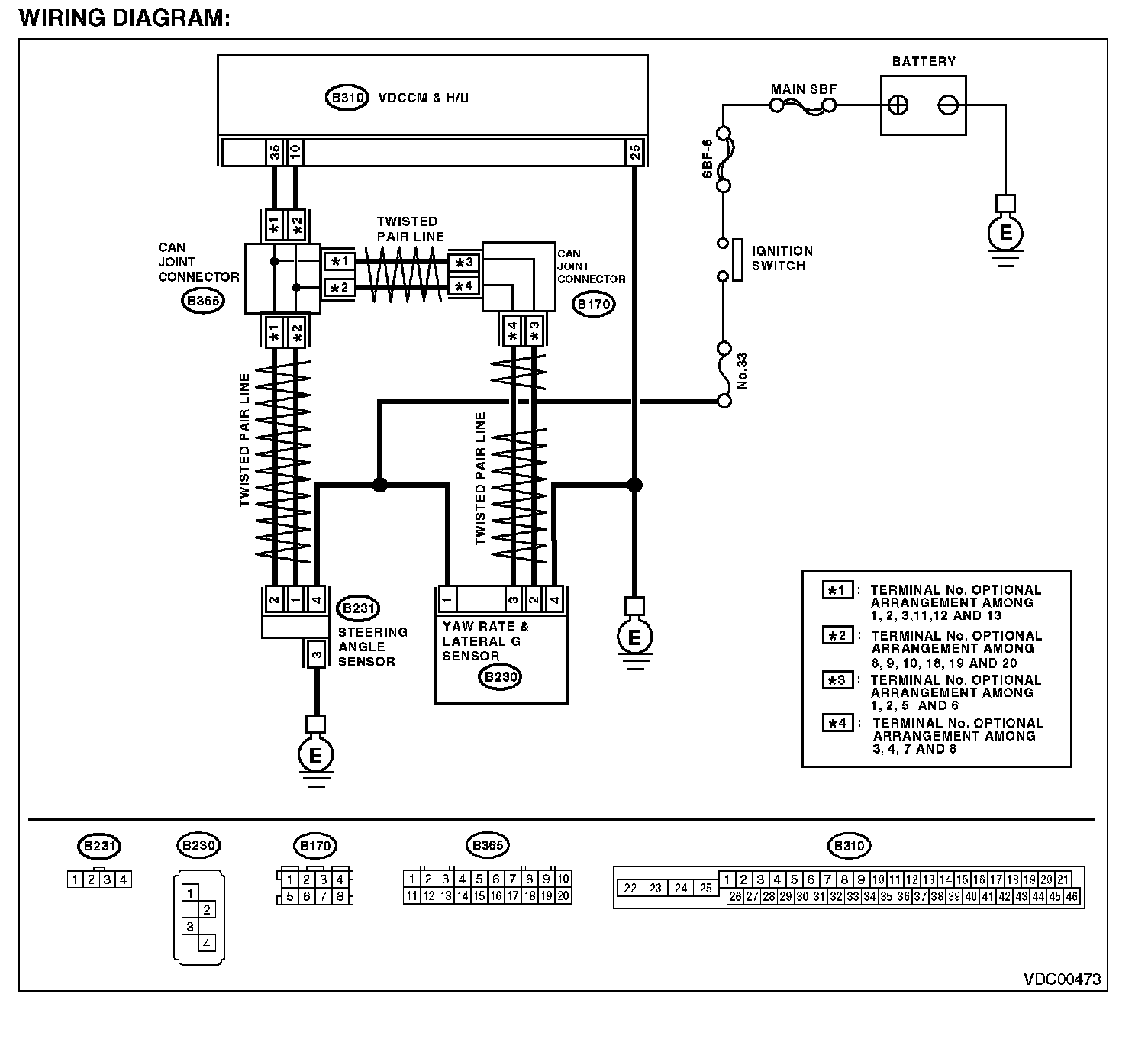

WIRING DIAGRAM

WIRING DIAGRAM:

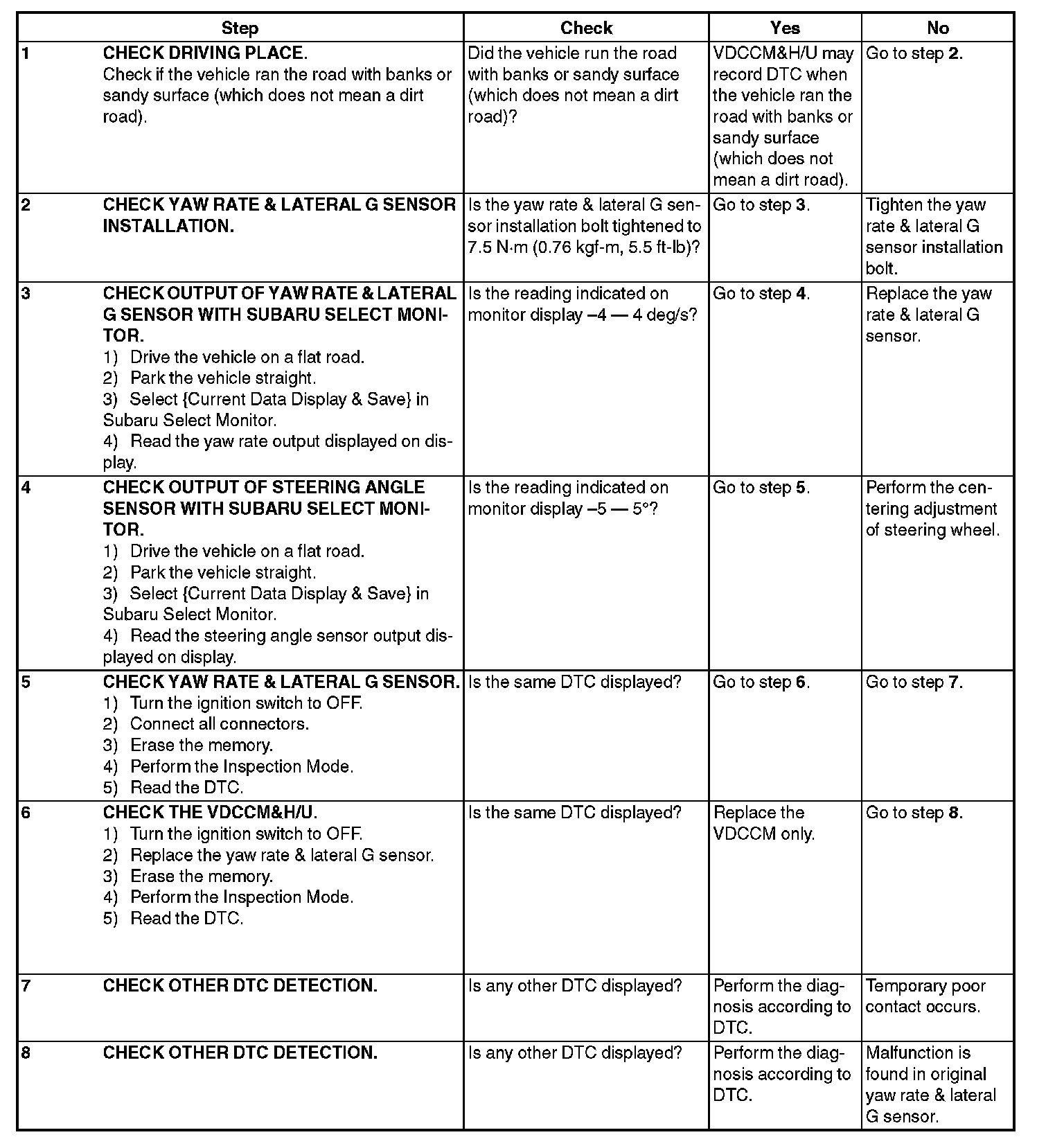

AQ: C0072 ABNORMAL YAW RATE SENSOR OUTPUT:
