MOTOR AND MOTOR RELAY OFF FAILURE

DTC C0052 MOTOR AND MOTOR RELAY OFF FAILURE

DTC DETECTING CONDITION
^ Defective motor and motor relay
^ Defective harness connector

TROUBLE SYMPTOM
^ ABS does not operate.
^ VDC does not operate.
^ EBD may not operate.

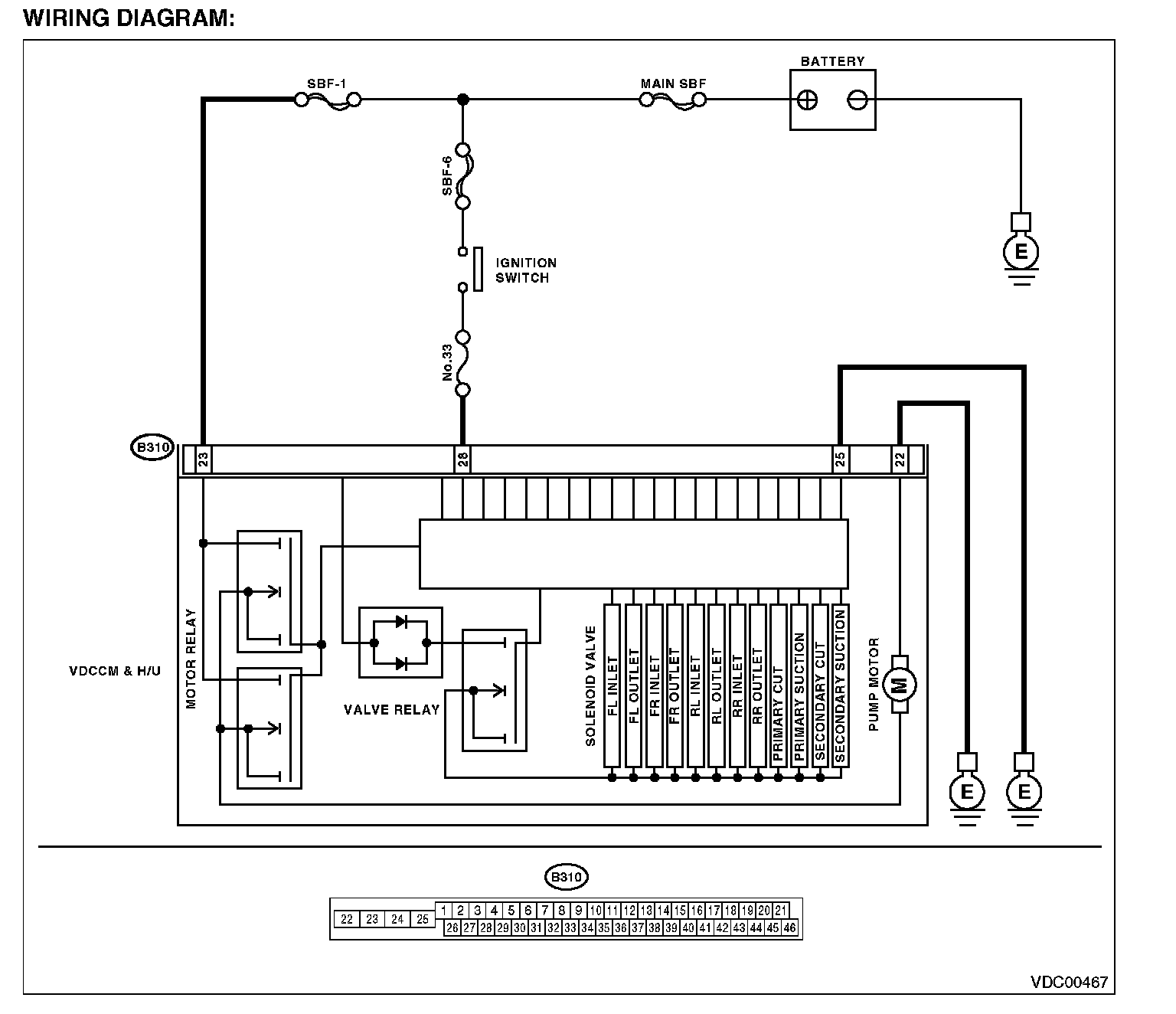

WIRING DIAGRAM
