DTC 45 INCORRECT VDC CONTROL MODULE SPECIFICATIONS

DTC C0045 INCORRECT VDC CONTROL MODULE SPECIFICATIONS

DTC DETECTING CONDITION
Different control module specification

TROUBLE SYMPTOM
^ ABS does not operate.
^ VDC does not operate.

NOTE: When parameter selection for VDCCM is improper, this DTC may be memorized.

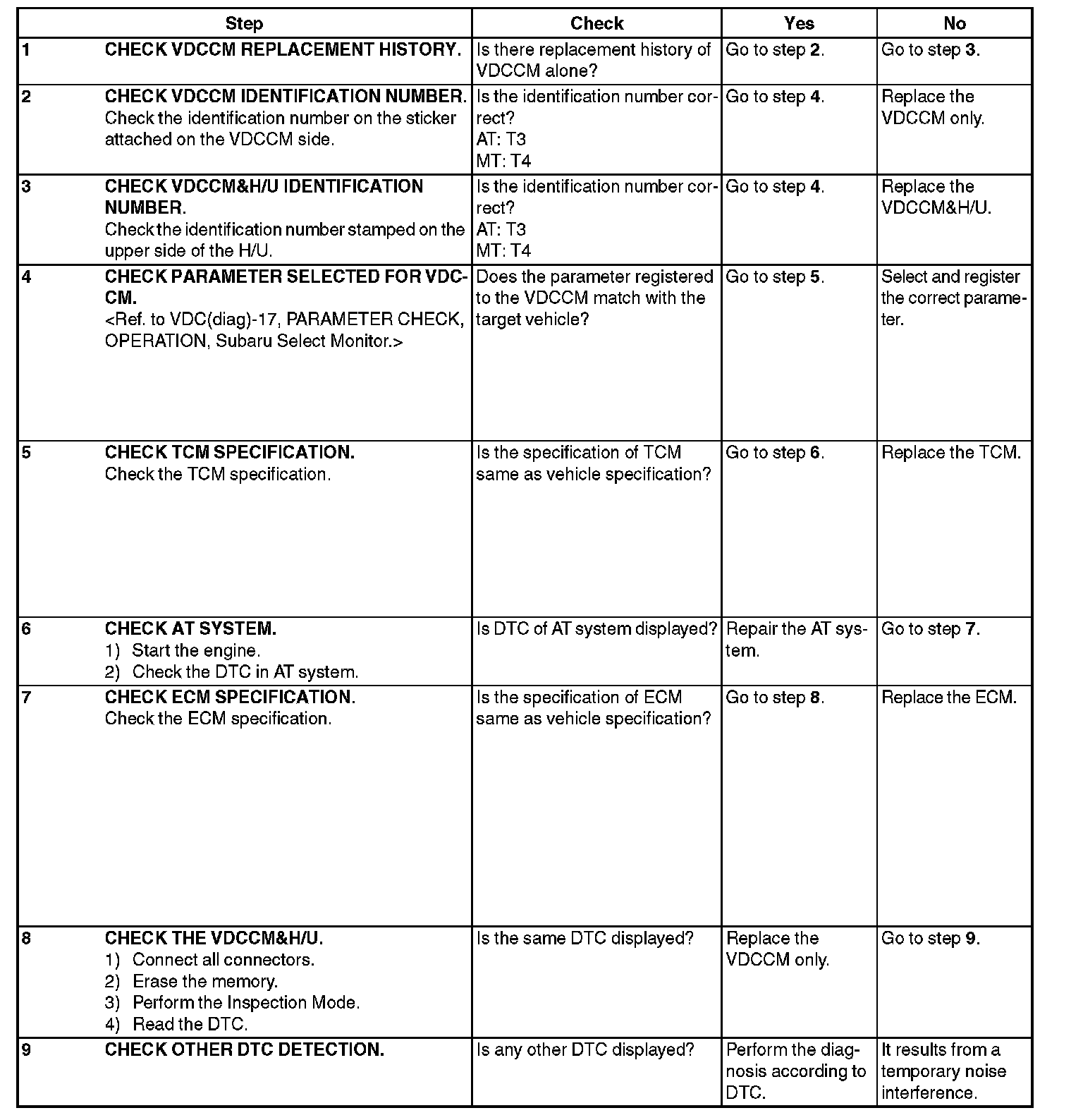

AA: C0045 INCORRECT VDC CONTROL MODULE SPECIFICATIONS:
