Home >> Subaru >> 2007 >> Legacy F4-2.5L DOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> C Code Charts >> C0041 >> ECM

ECM

DTC C0041 ECM

DTC DETECTING CONDITION
Defective VDCCM&H/U

TROUBLE SYMPTOM
^ ABS does not operate.
^ EBD does not operate.
^ VDC does not operate.

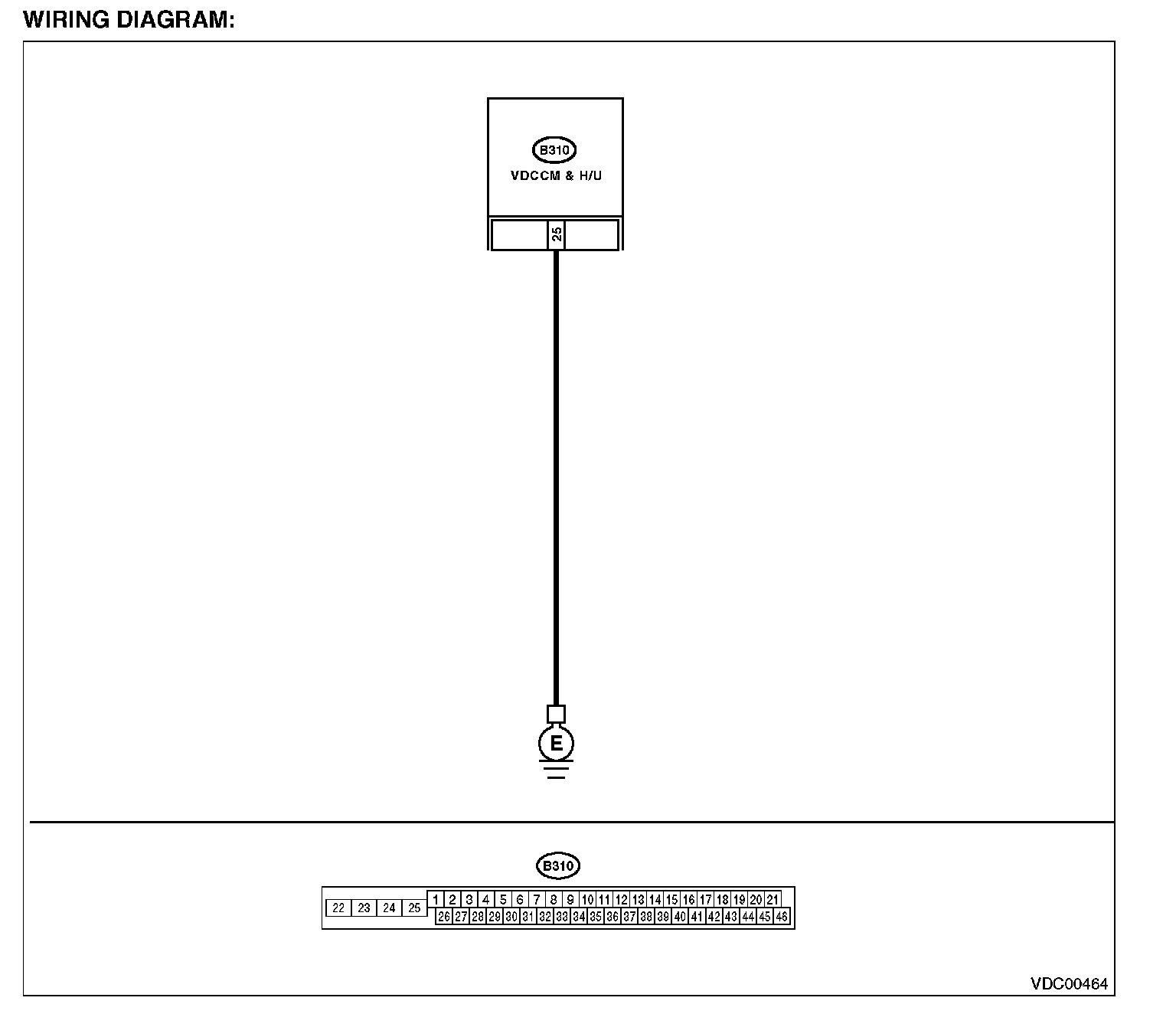

WIRING DIAGRAM

WIRING DIAGRAM:




W: C0041 ECM:
