Combination Switch: Testing and Inspection

Combination Switch (Light)

INSPECTION

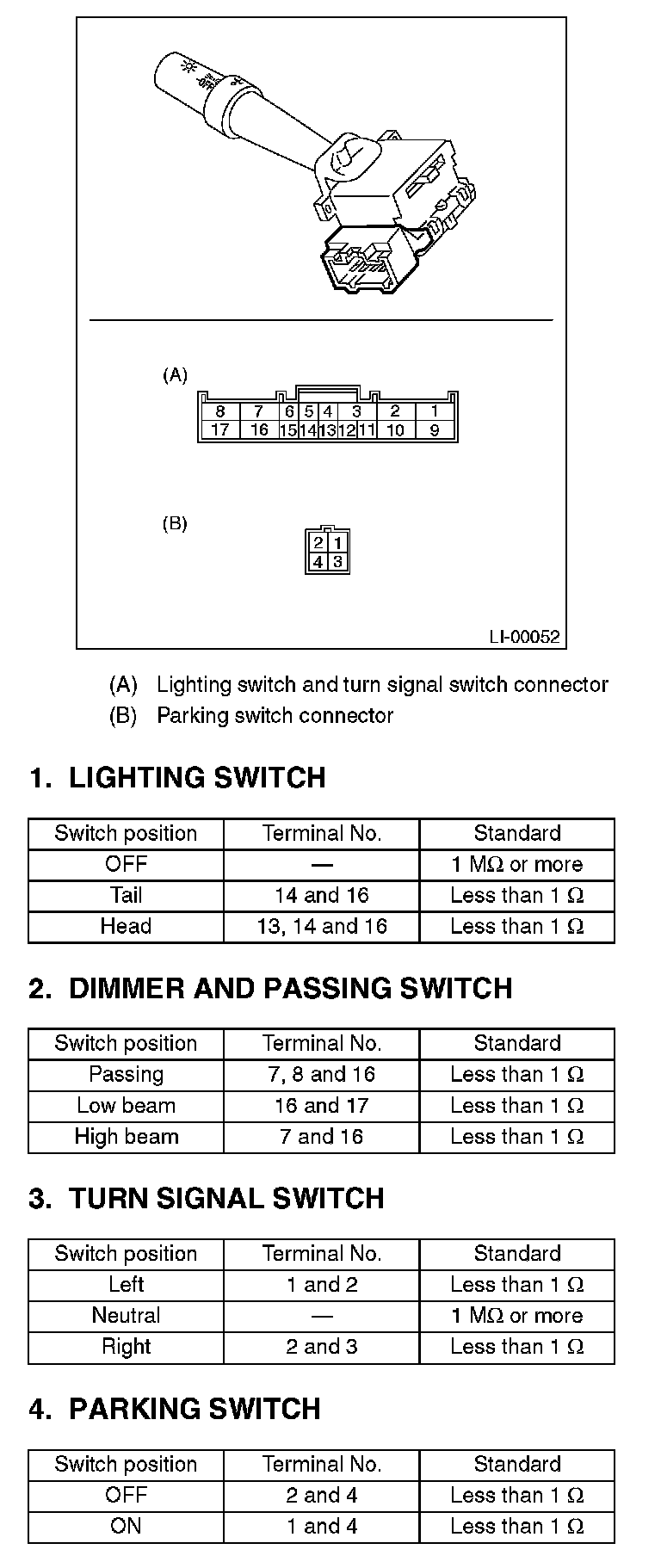

Measure the combination switch resistance.




1. LIGHTING SWITCH




2. DIMMER AND PASSING SWITCH




3. TURN SIGNAL SWITCH




4. PARKING SWITCH
