Rear

Rear Wiper Motor

INSPECTION

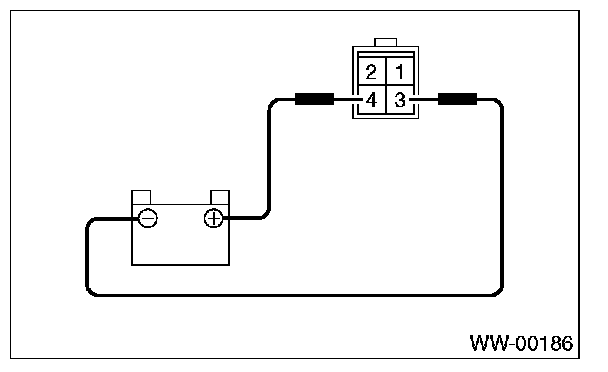

1. Connect the battery to wiper motor connector and confirm that wiper motor operates.

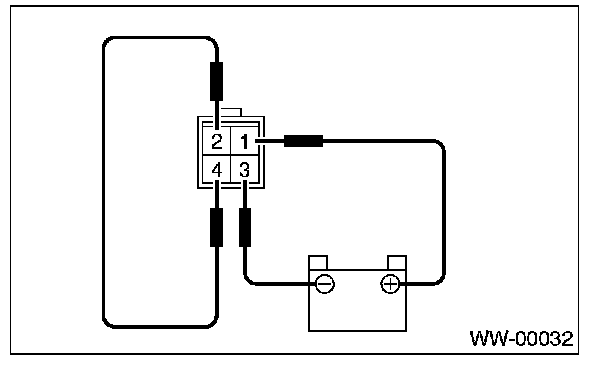

2. Connect the battery to terminals of connector, and remove the terminal connection with wiper motor rotated, and stop the wiper motor through operation.

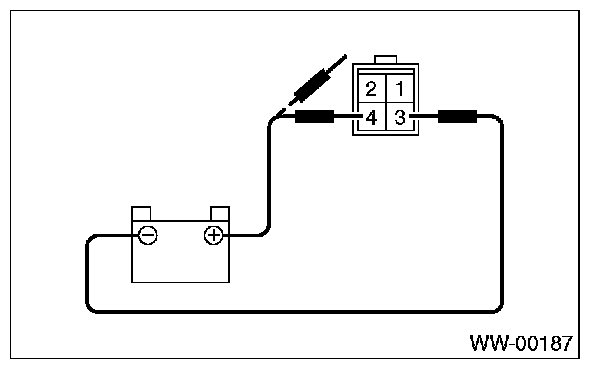

3. Connect the battery and confirm that the wiper motor stops at automatic stop position after the wiper motor operates at low speed again.
