Output Shaft Oil Seal

Oil Seal

INSPECTION
Check leakage of gear oil from the oil seal part. If there is oil leakage, replace with a new oil seal.

REPLACEMENT
1. Clean the transmission exterior.





2. Drain gear oil completely.

NOTE:

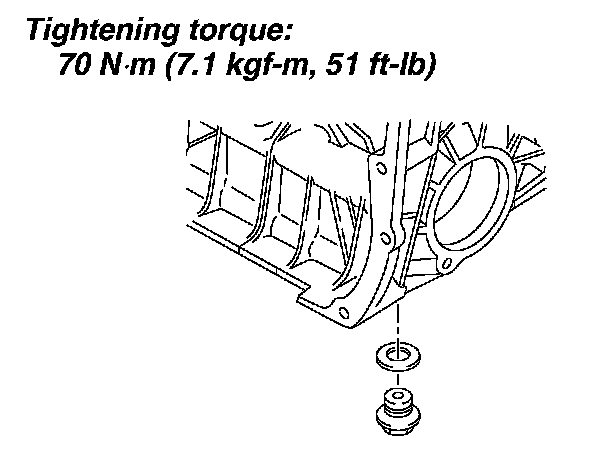

^ Tighten the drain plug after draining transmission gear oil.
^ Be sure to use a new gasket.

Tightening torque: 70 Nm (7.1 kgf-cm, 51 ft. lbs.)
3. Remove the rear exhaust pipe and muffler.
4. Remove the heat shield cover. (If equipped)
5. Remove the propeller shaft.

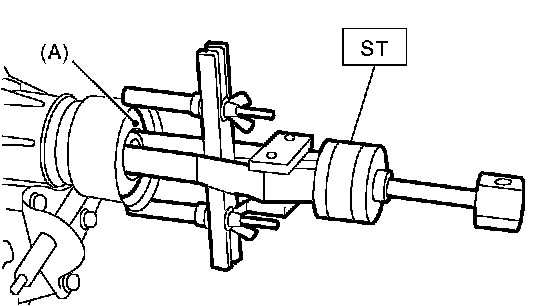

6. Using the ST, remove the oil seal.
ST 398527700 PULLER ASSY

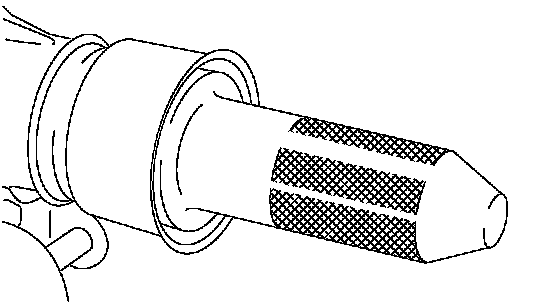

7. Using the ST, install the oil seal.
ST 498057300 INSTALLER
8. Install the propeller shaft.
9. Install the heat shield cover. (If equipped)
10. Install the rear exhaust pipe and muffler.
11. Pour gear oil and check the oil level.
