Transmission Case Assembly
TRANSMISSION CASE ASSEMBLY

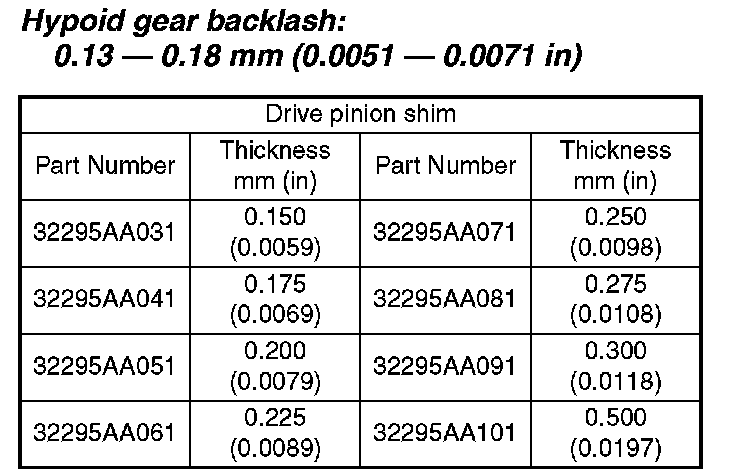

Drive pinion shim adjustment

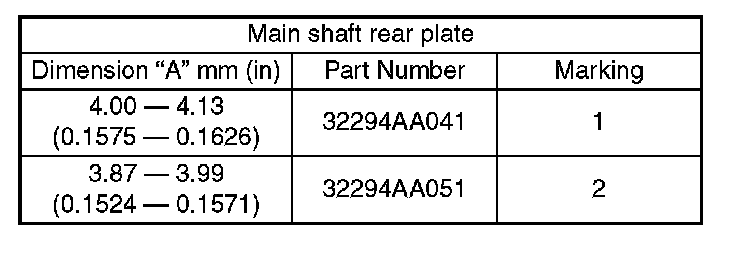

Selection of main shaft rear plate
