Shifter Fork and Rod
SHIFTER FORK AND ROD

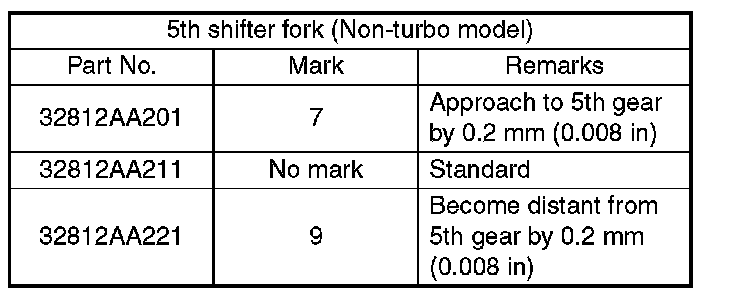

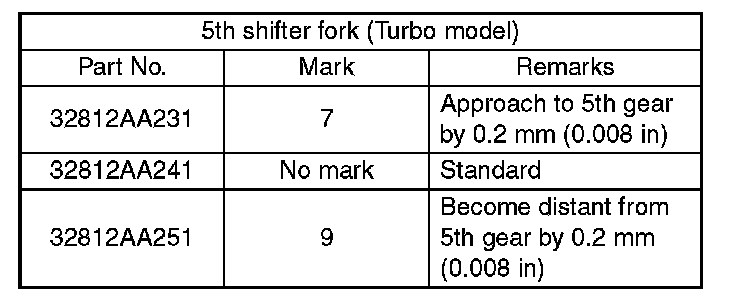

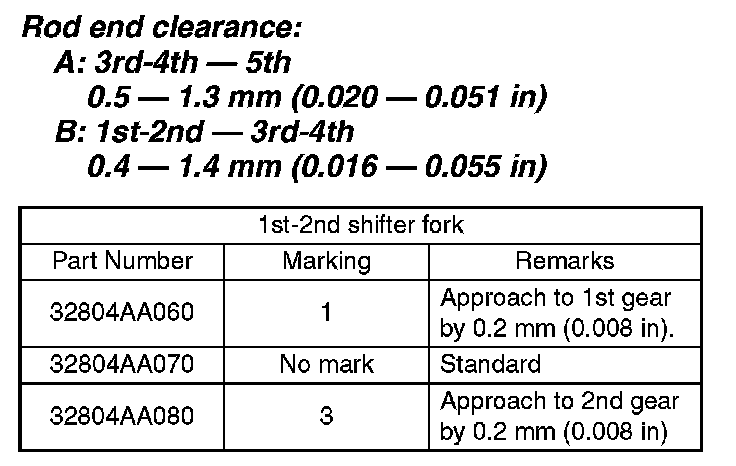

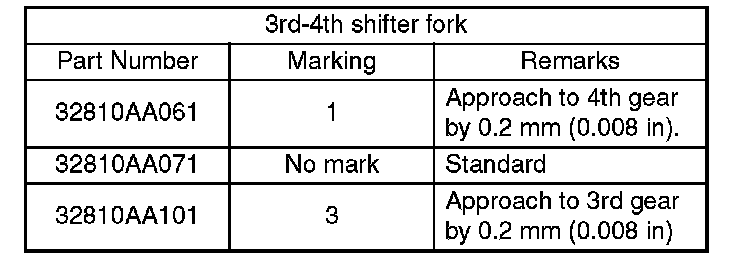

Select suitable shifter forks so that both the coupling sleeve and reverse driven gear are positioned in the center of their synchromesh mechanisms.
