Oil Charge Pipe

Oil Charge Pipe

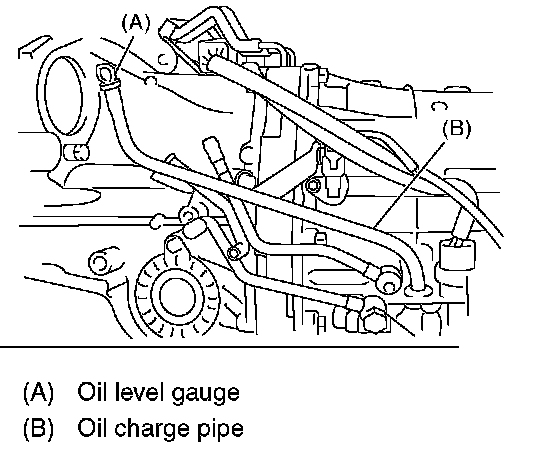

REMOVAL
1. Remove the intercooler. (Turbo model)
2. Remove the air intake chamber. (Non-turbo model)





3. Remove the oil charge pipe, and then remove the O-ring from flange side.

INSTALLATION





1. Install the oil charge pipe with a new O-ring.

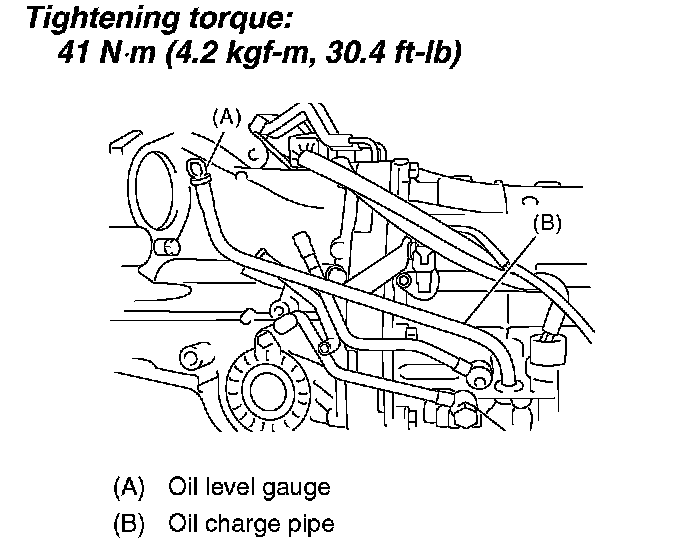

Tightening torque: 41 Nm (4.2 kgf-cm, 30.4 ft. lbs.)
2. Install the intercooler. (Turbo model)
3. Install the air intake chamber. (Non-turbo model)

INSPECTION
Make sure the oil charge pipe is not deformed or damaged.
