Front Accessory Power Supply Socket

FRONT ACCESSORY POWER SUPPLY SOCKET

REMOVAL
1. Disconnect the ground cable from battery.
2. Remove the console front panel.

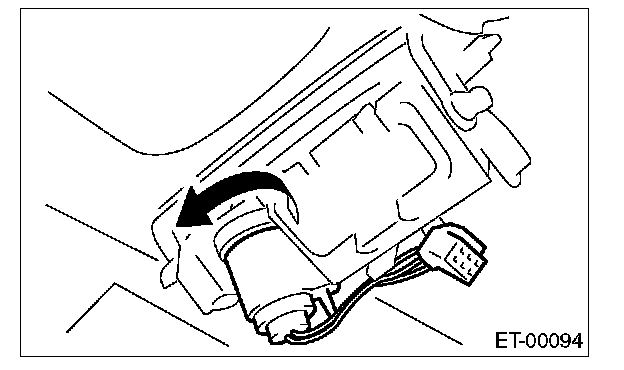

3. Disconnect the harness connector, and remove the accessory power supply socket.

INSTALLATION
Install in the reverse order of removal.
