Shift Interlock Solenoid: Service and Repair

AT Shift Lock Solenoid and "P" Range Switch

REMOVAL
1. Remove the console box.

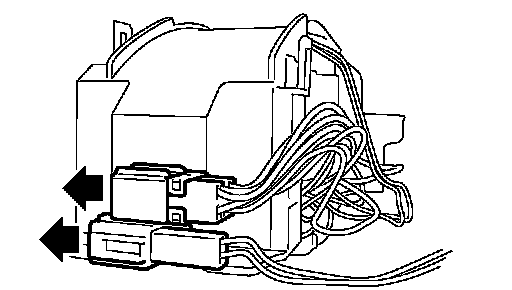

2. Disconnect the connector.

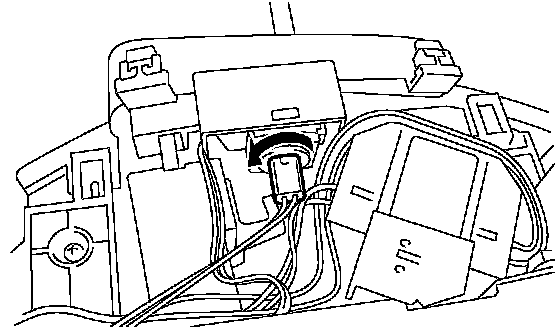

3. Remove the indicator bulb.





4. Remove the grip.

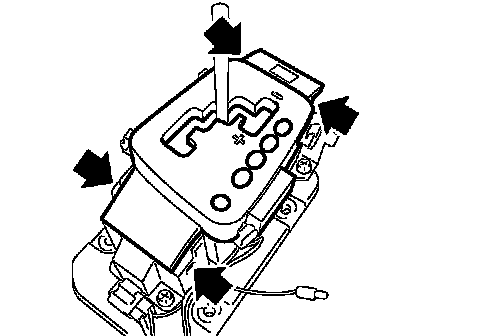

5. Remove the indicator cover.





6. Disconnect the connector from the guide plate upper.

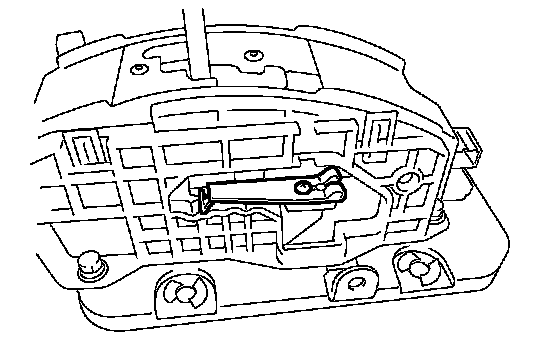

7. Shift the select lever to the N range, and then remove the detent spring.

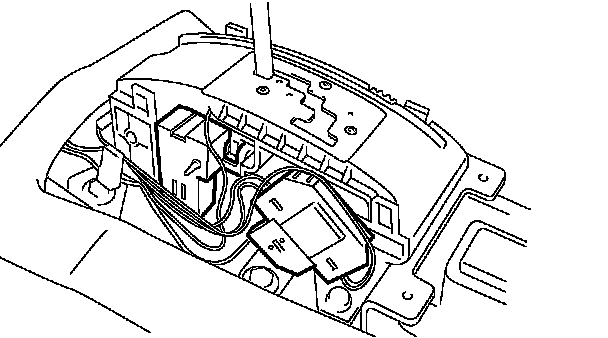

8. Remove the switch assembly and shift lock solenoid assembly.

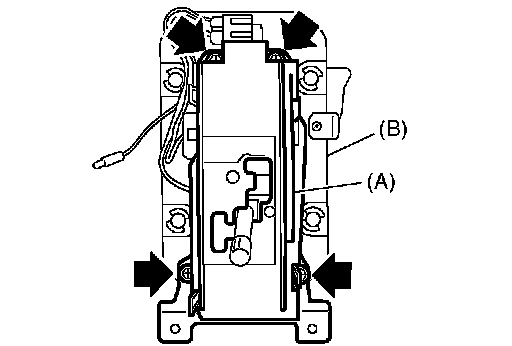

9. Remove the bolt to remove the guide plate upper (A).

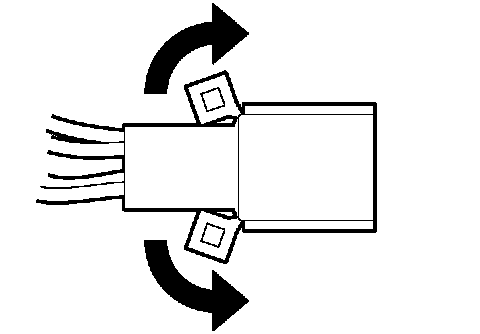

10. Raise the claw of the connector.

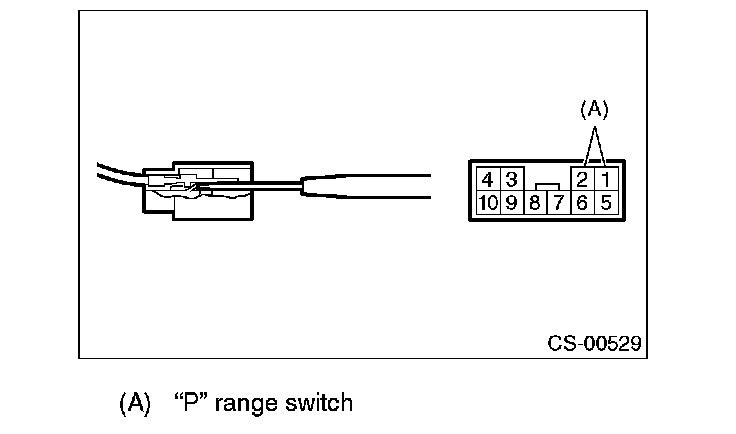

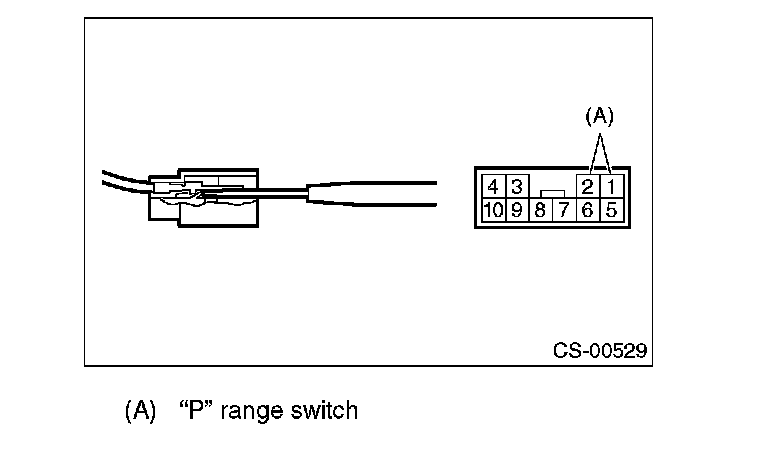

11. Disconnect the terminal of the "P" range switch from connector, using a flat-tip screwdriver with a thin tip.





INSTALLATION
Install in the reverse order of removal.

NOTE:
^ Refer to "COMPONENT" for each tightening torque.
^ Connect the "P" range switch terminal to connector.





INSPECTION

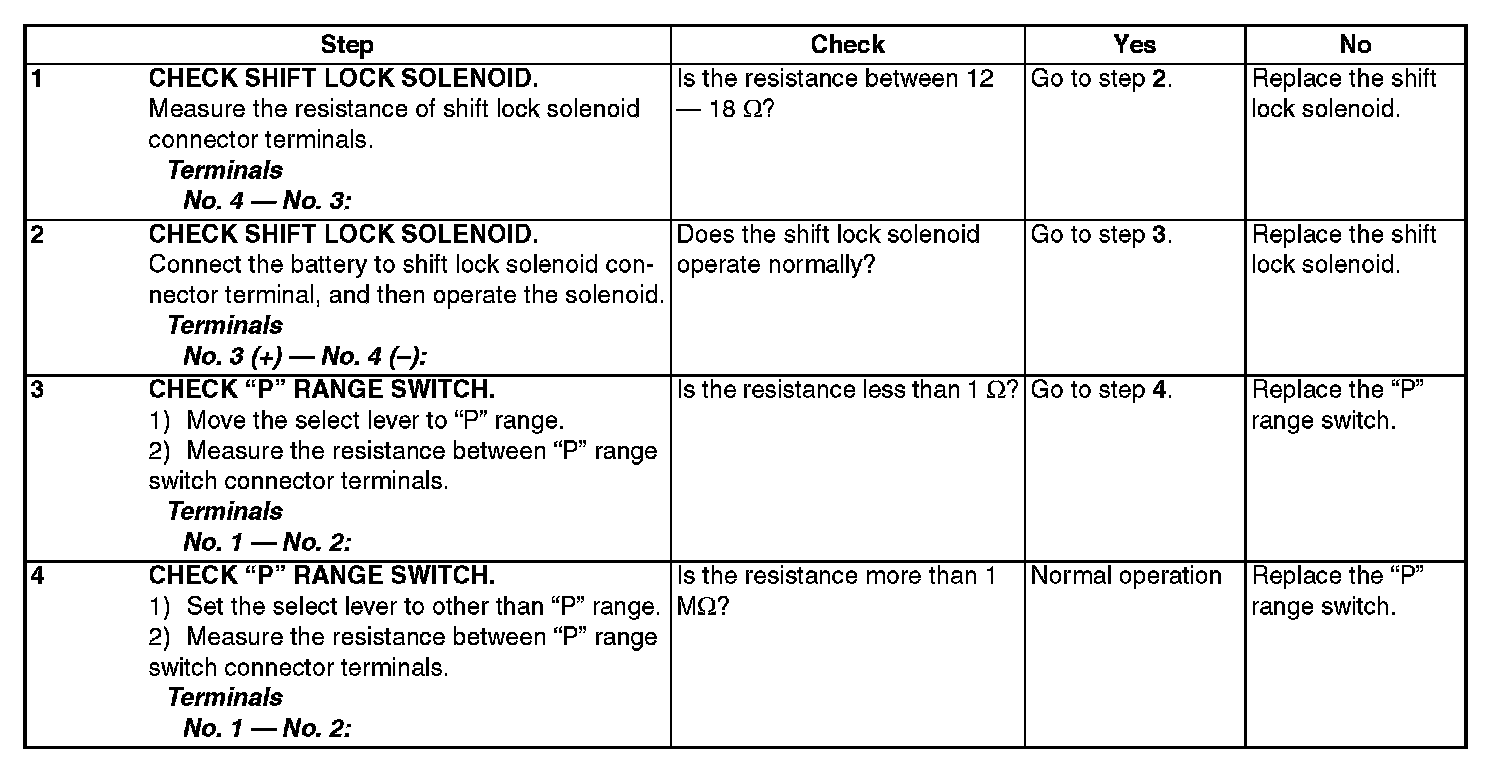

Step 1-Step 4:
