Engine Control Module
>>
Diagrams
>>
Diagram Information and Instructions
>>
OE Harness Connector Repair Kits
OE Harness Connector Repair Kits
Harness Repair Kit

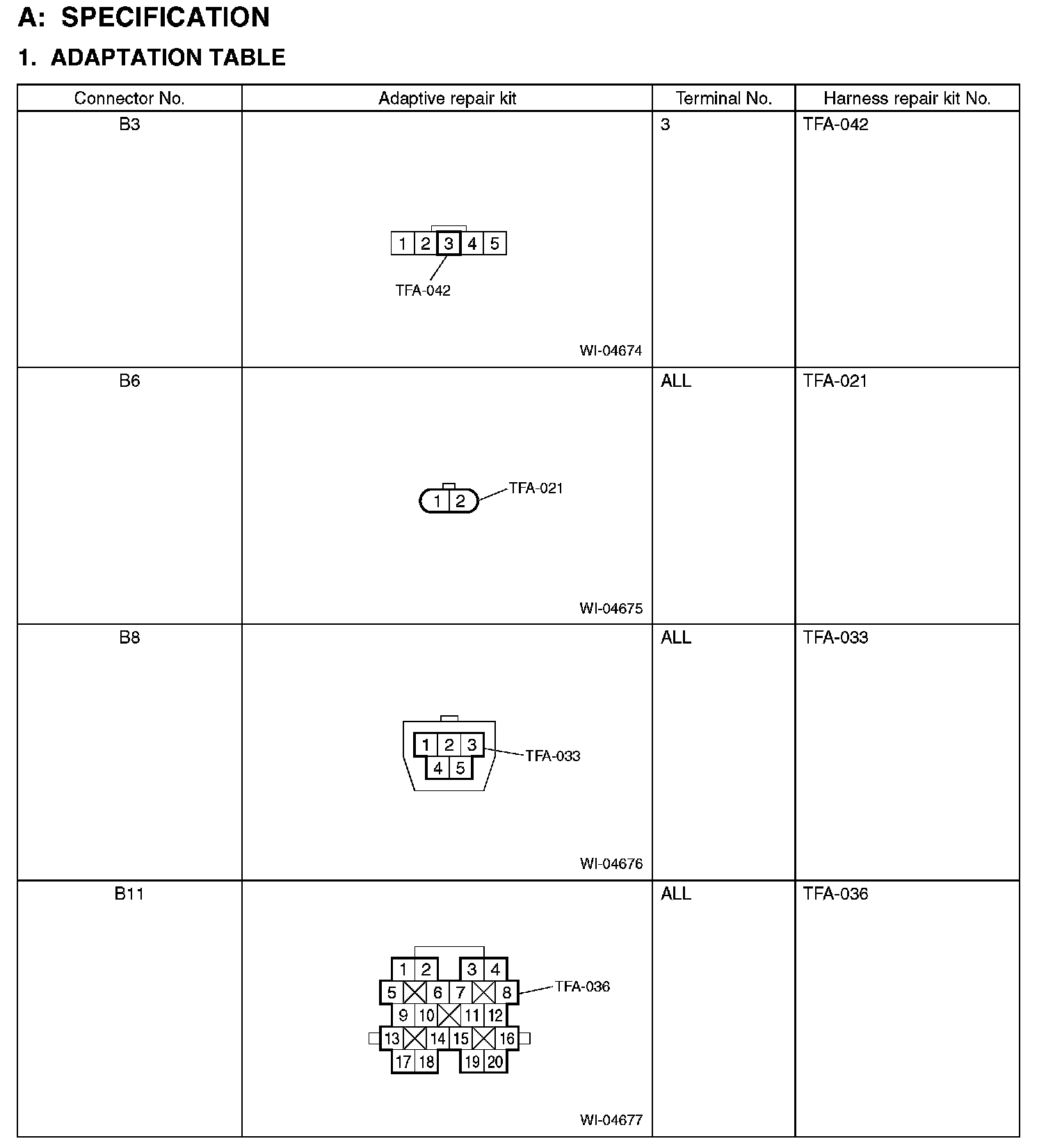

SPECIFICATION
B3-B11:

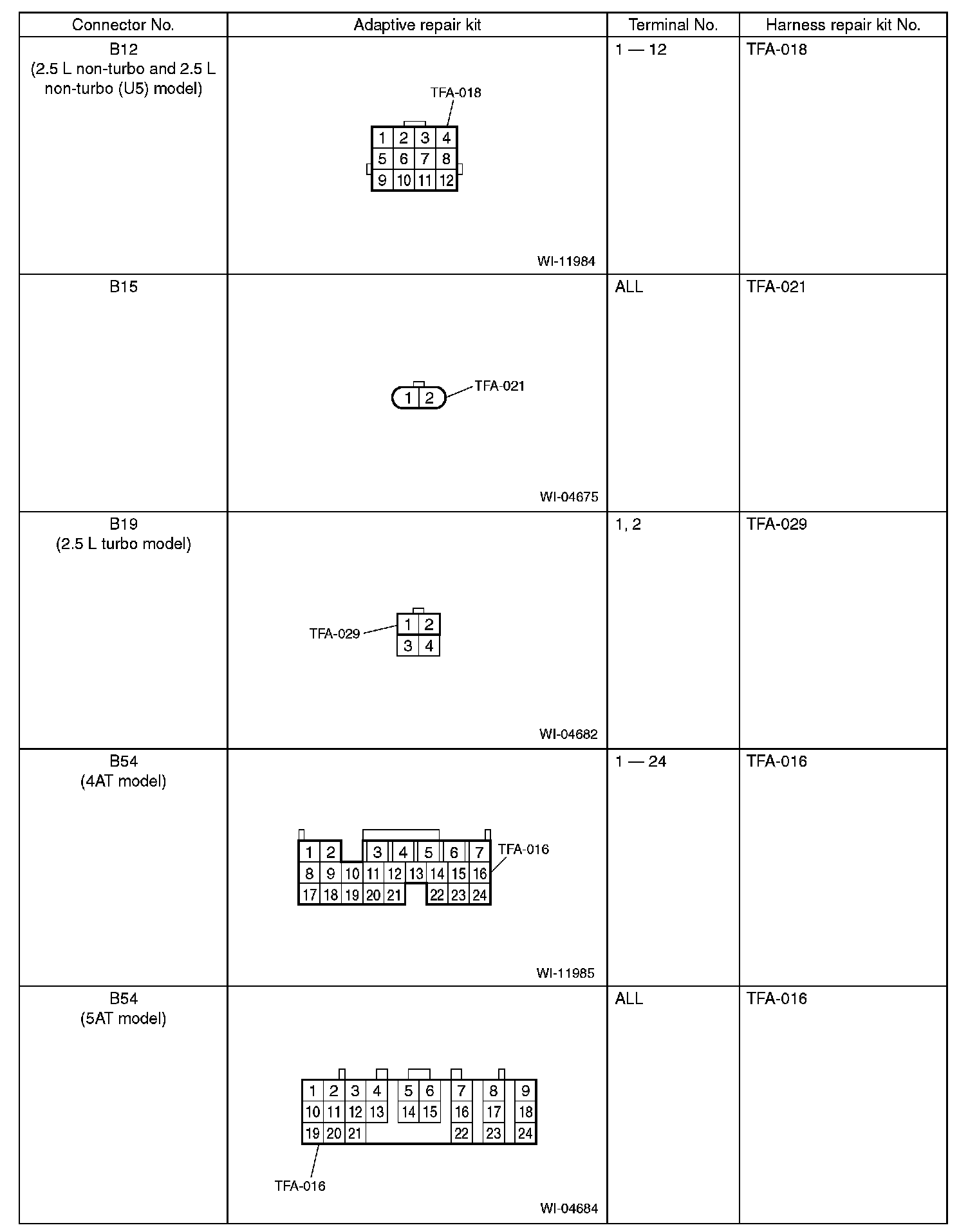

B12-B54:

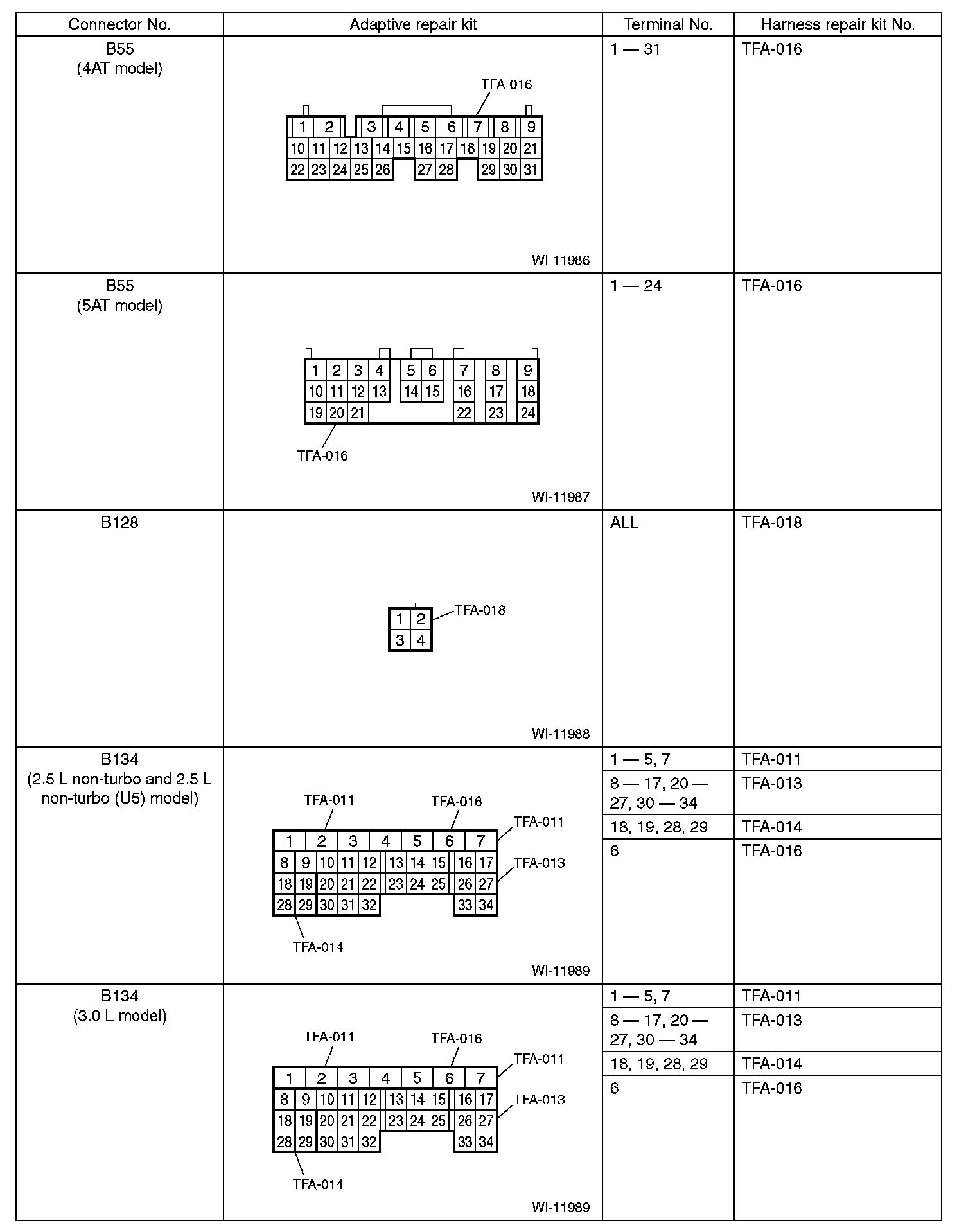

B55-B134:

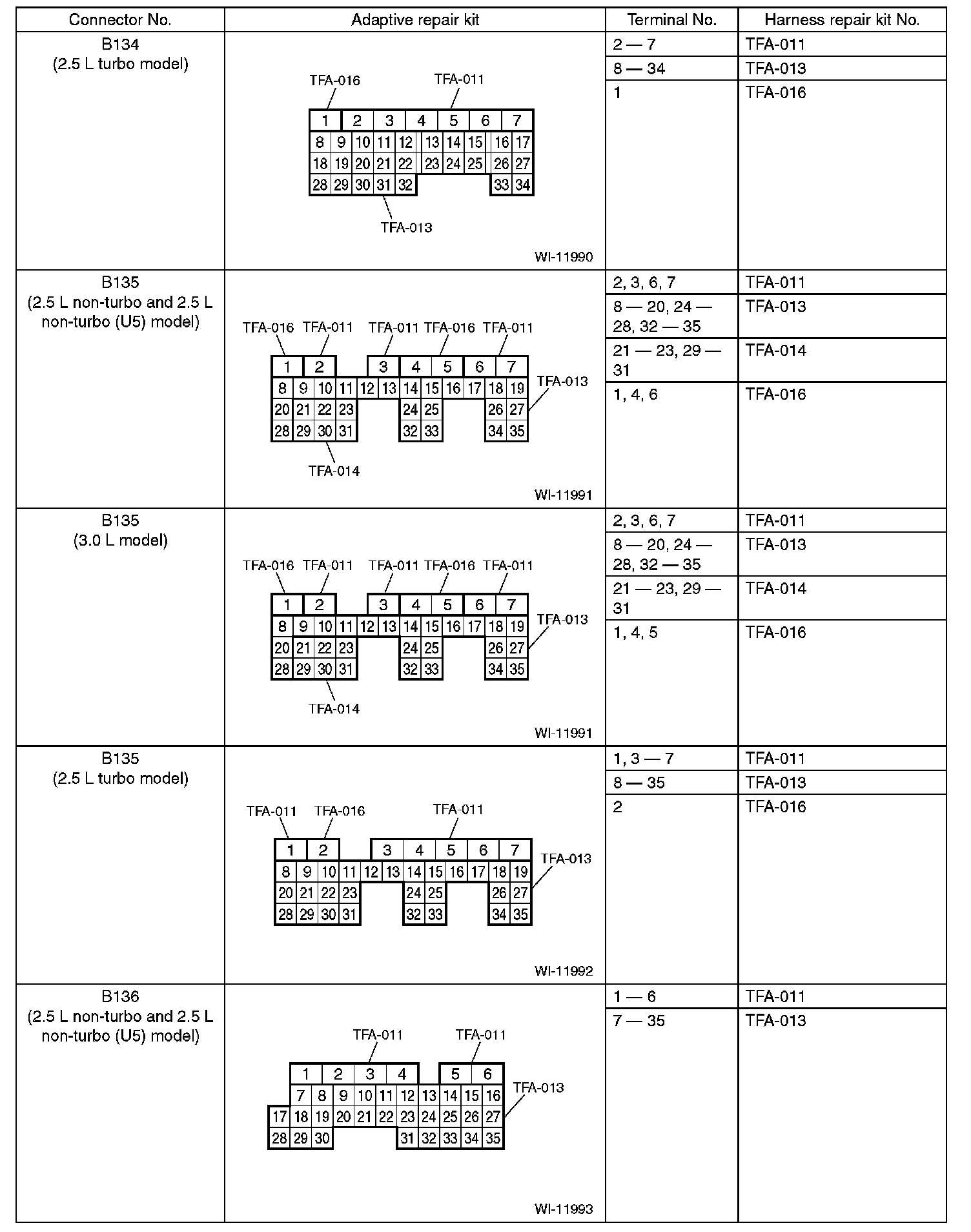

B134-B136:

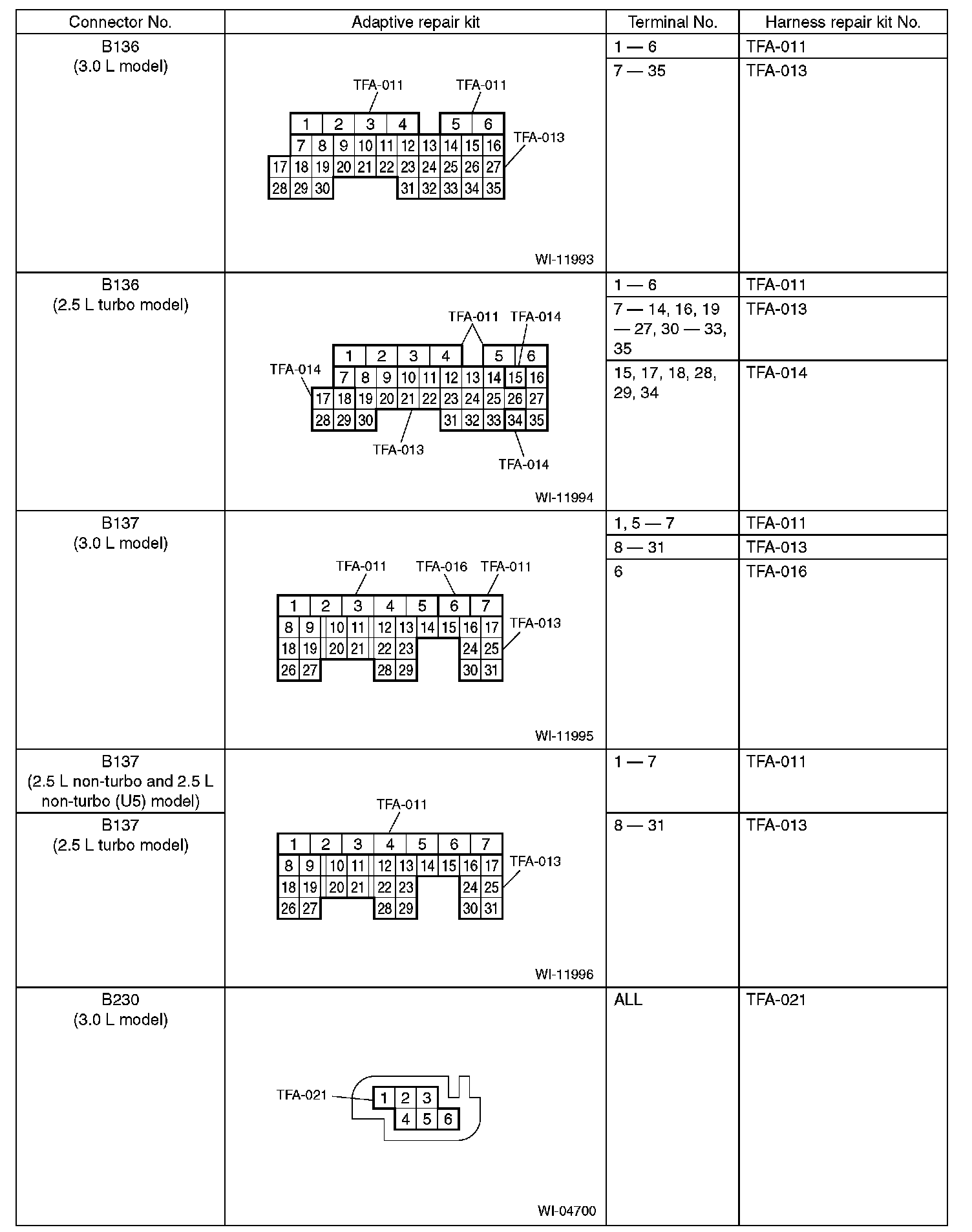

B136-B230:

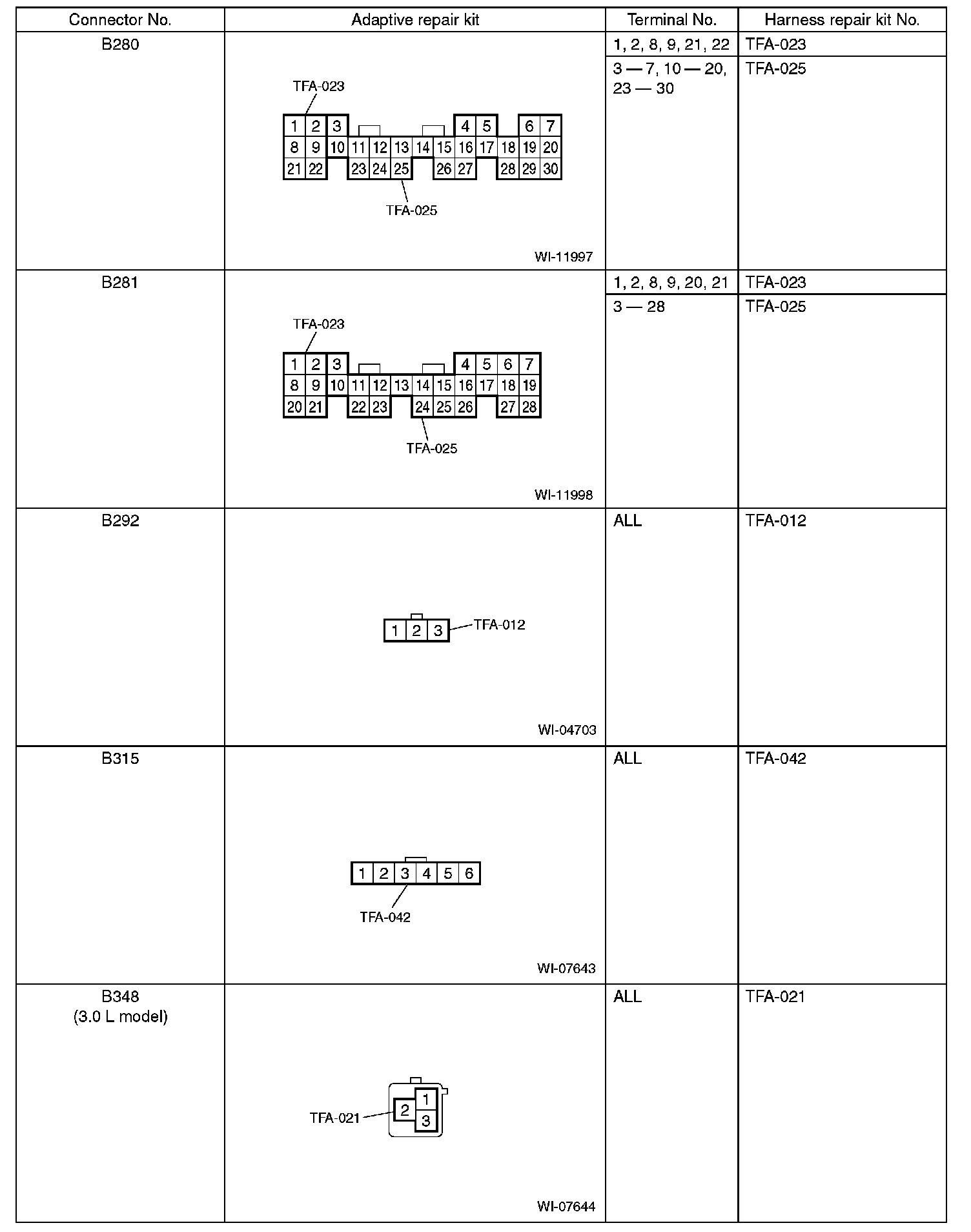

B280-B348:
B350-J6:

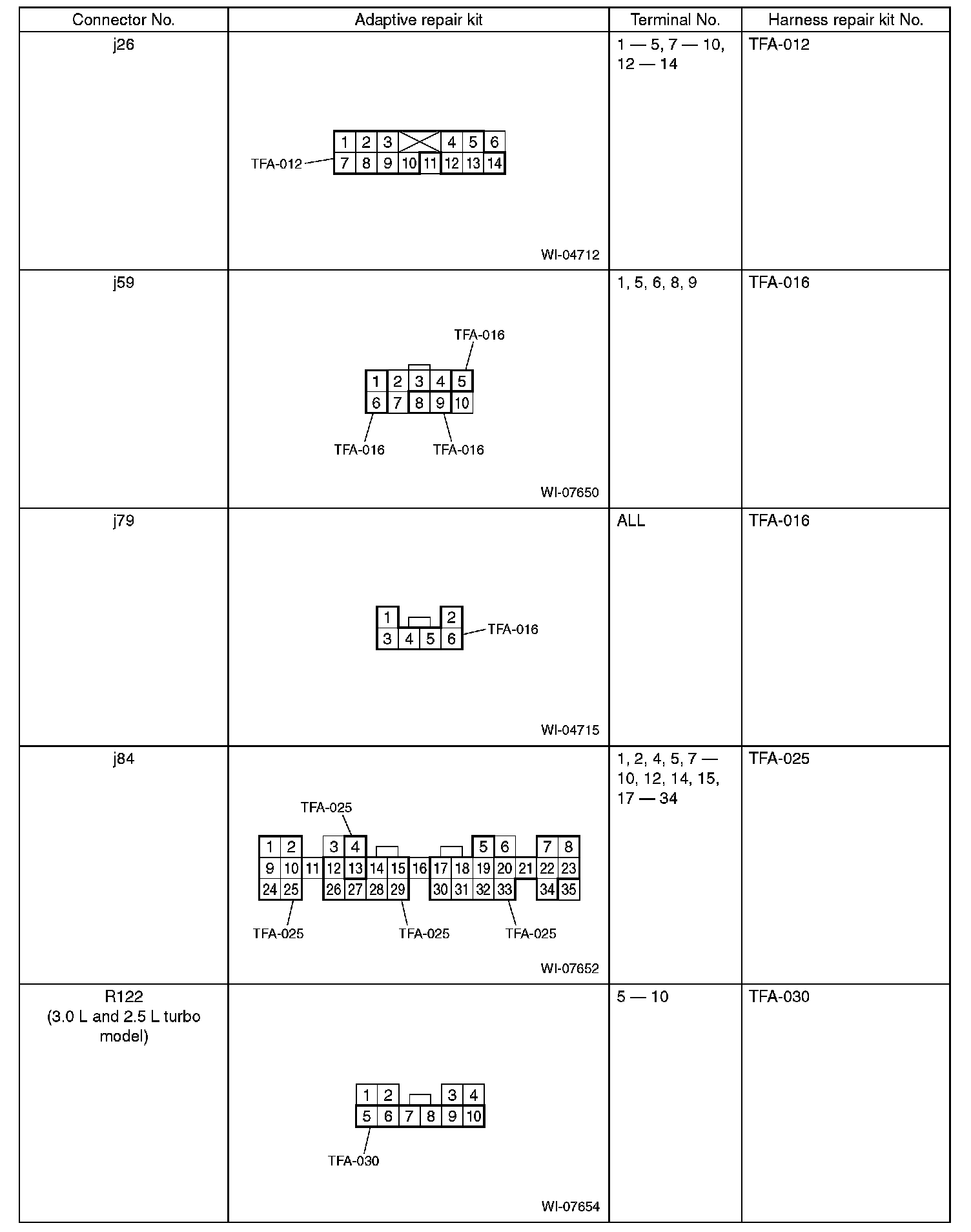

J26-R122:
