Blower Motor

Blower Motor

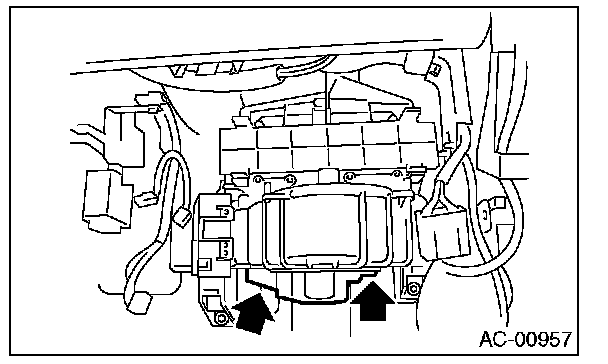

REMOVAL
1. Disconnect the ground cable from battery.
2. Remove the glove box lower cover.
3. Disconnect the connector of blower motor.




4. Loosen the screw to remove blower motor.

INSTALLATION
Install in the reverse order of removal.
