Cooling Circuits

Cooling Circuits

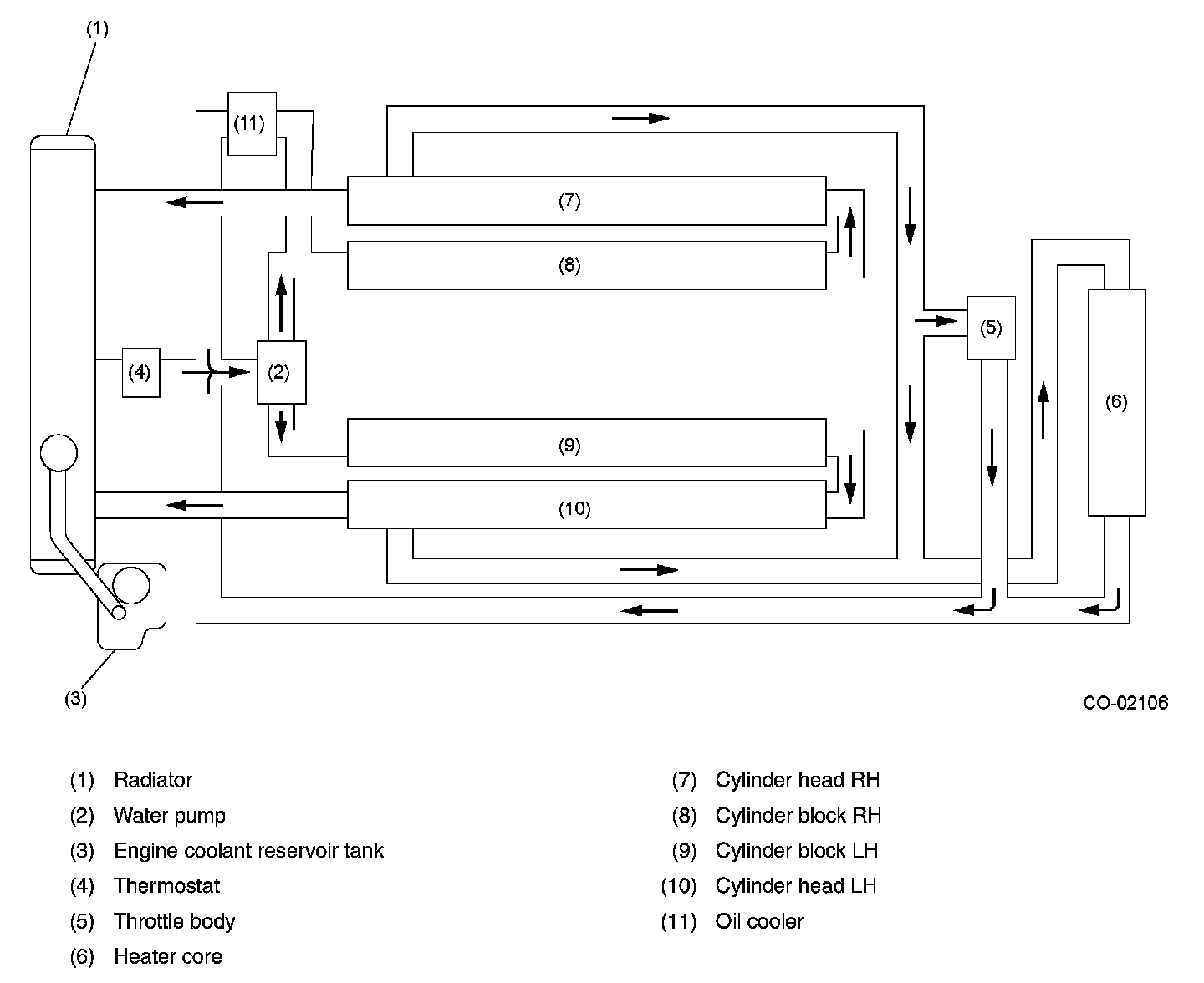

The cooling system operates in three different phases depending on the temperature of the engine coolant.

- 1st phase (thermostat closed)
When the engine coolant temperature is below 80 degrees C (176 degrees F), the thermostat remains closed. The coolant flows through the bypass and heater circuits.
This permits the engine to warm up quickly.

- 2nd phase (thermostat open)
When the engine coolant temperature is above 80 - 84 degrees C (176 - 183.2 degrees F), the thermostat opens. The coolant flows through the radiator where it is cooled.

- 3rd phase (thermostat open and radiator fan operating)
When the engine coolant temperature sensor sends a signal indicating a temperature above 91 degrees C (196 degrees F) to the ECM, it causes the radiator fan (or fans) to operate.
