Home >> Subaru >> 2006 >> Outback F6-3.0L DOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Exhaust System

Exhaust System

COMPONENT

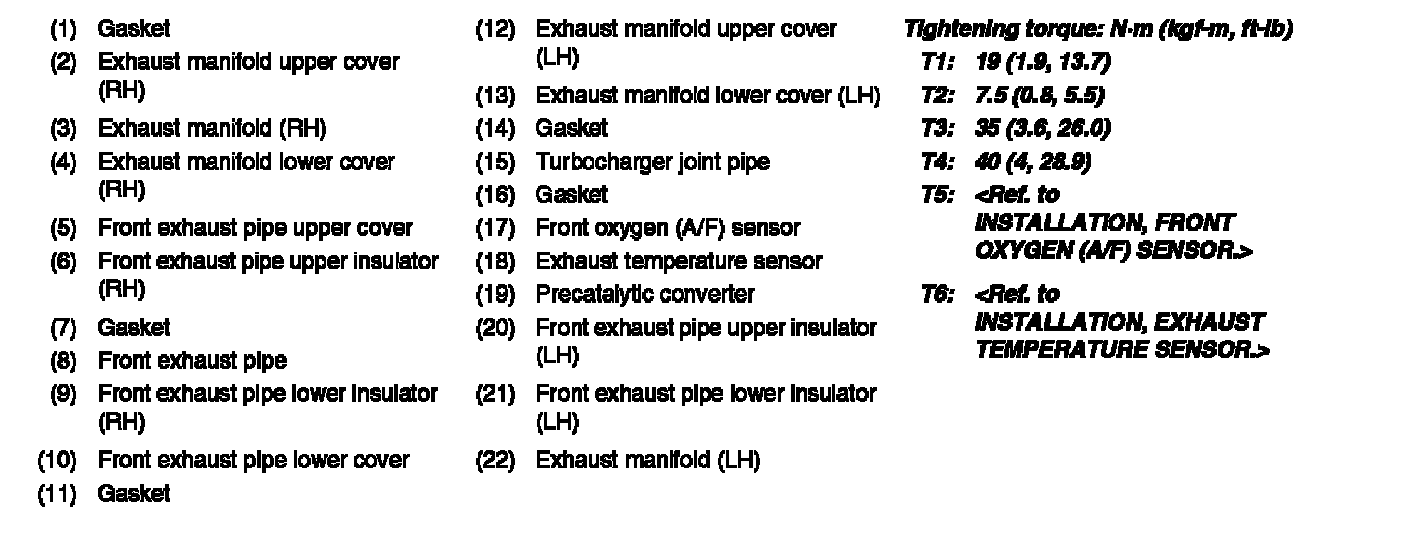

Part 1:

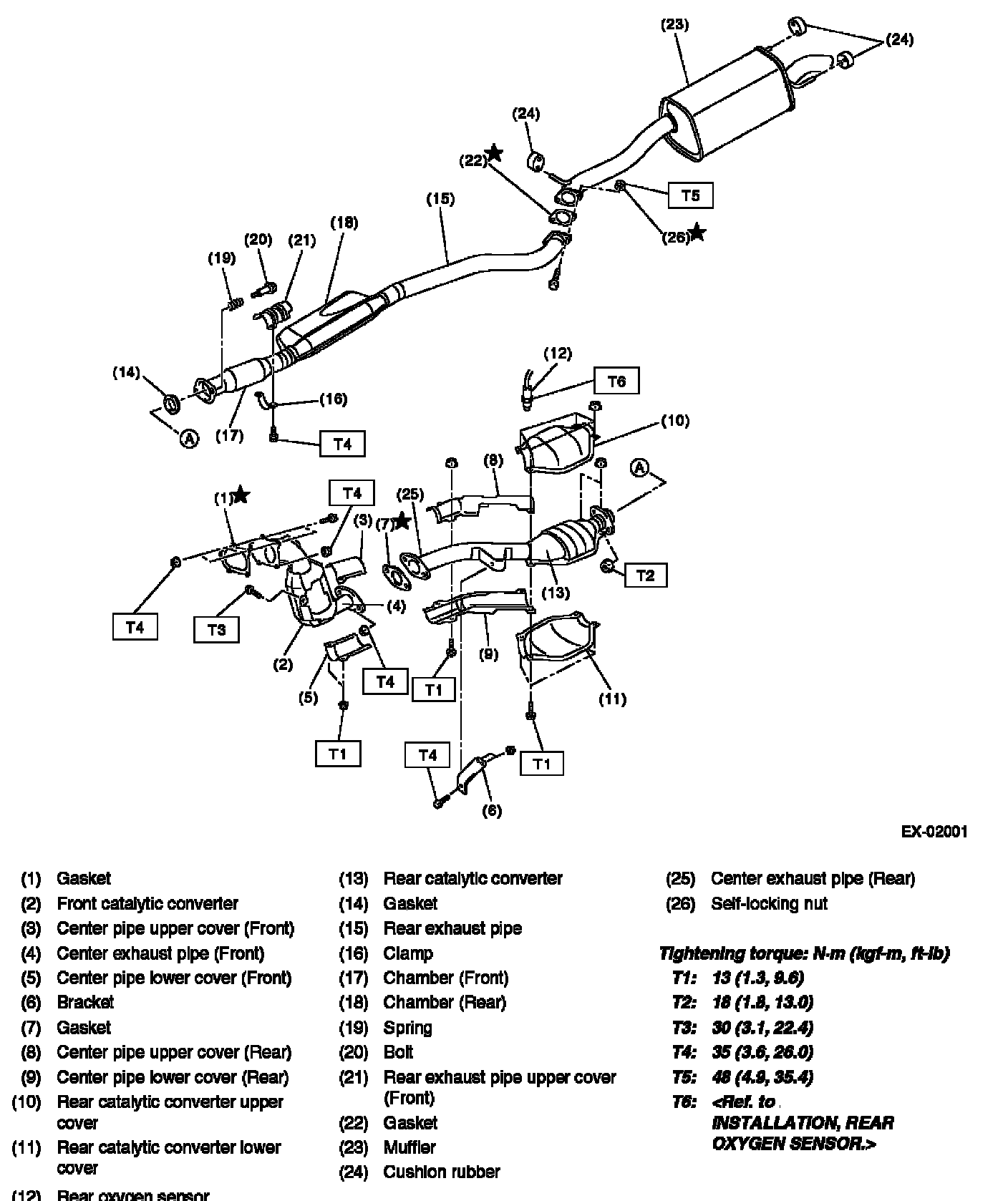

Part 2:





FRONT EXHAUST PIPE





CENTER AND REAR EXHAUST PIPE, AND MUFFLER
