B31-B390 & AB1-AB9
Bulkhead Wiring Harness (In Compartment)

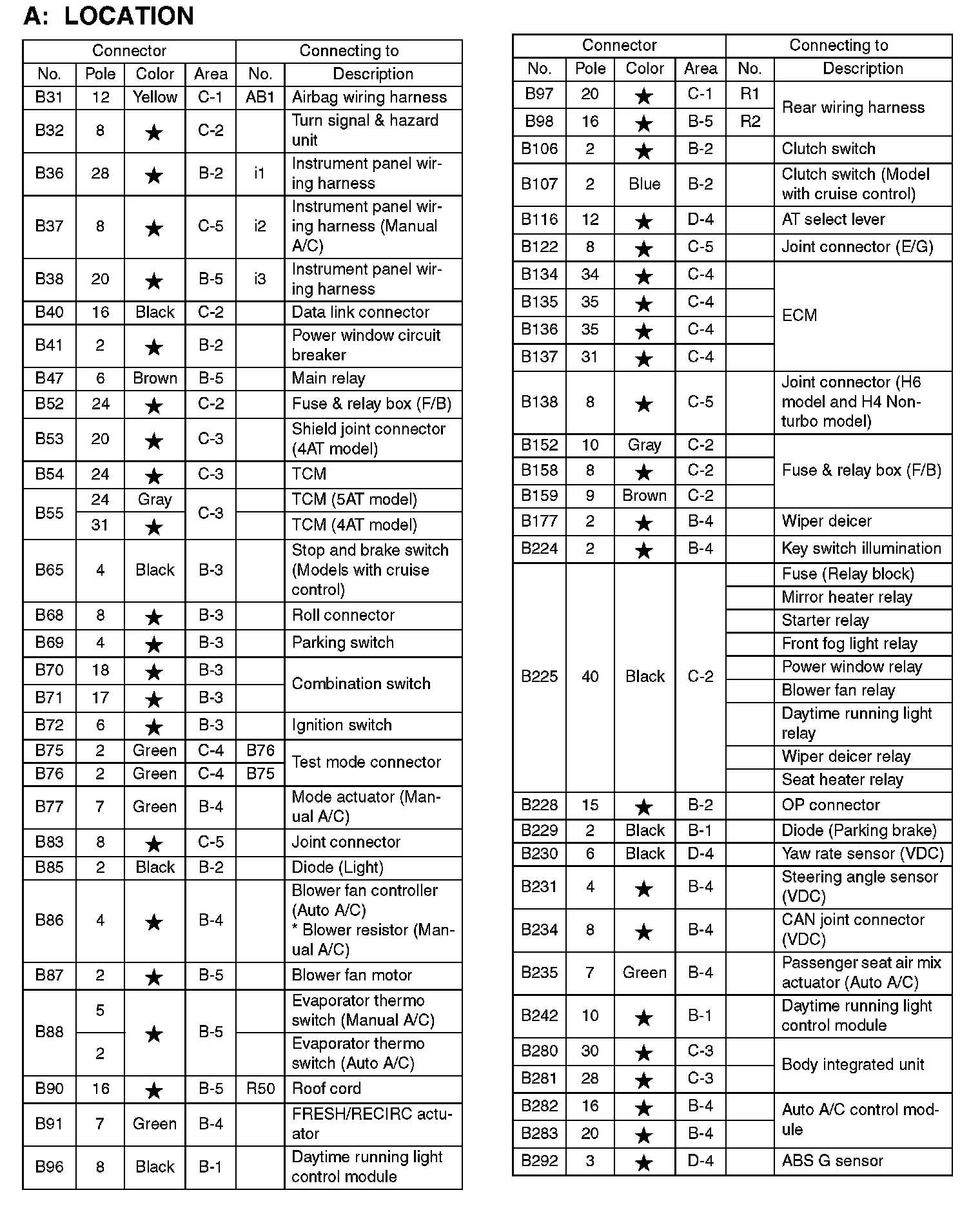

B31-B292:

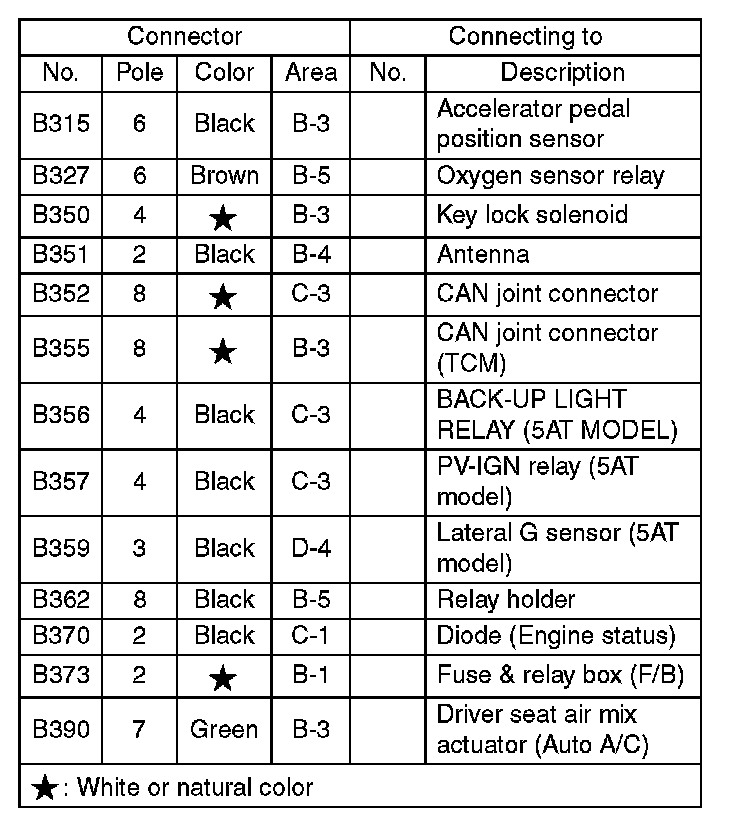

B315-B390:

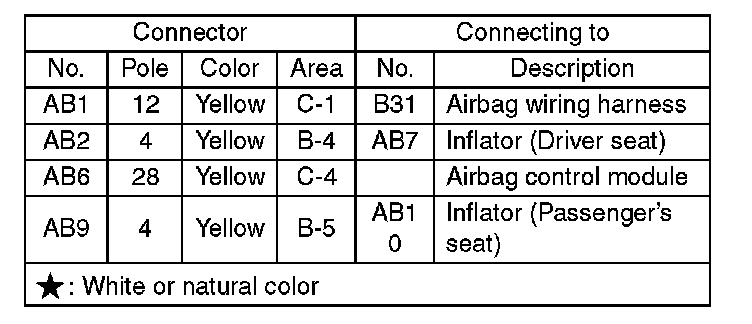

AB1-AB9:
Area View:
