B3-B392 & AB13-AB16 & E3-E61
B3-B392 & AB13-AB16 & E3-E61
Bulkhead Wiring Harness (In Engine Compartment)

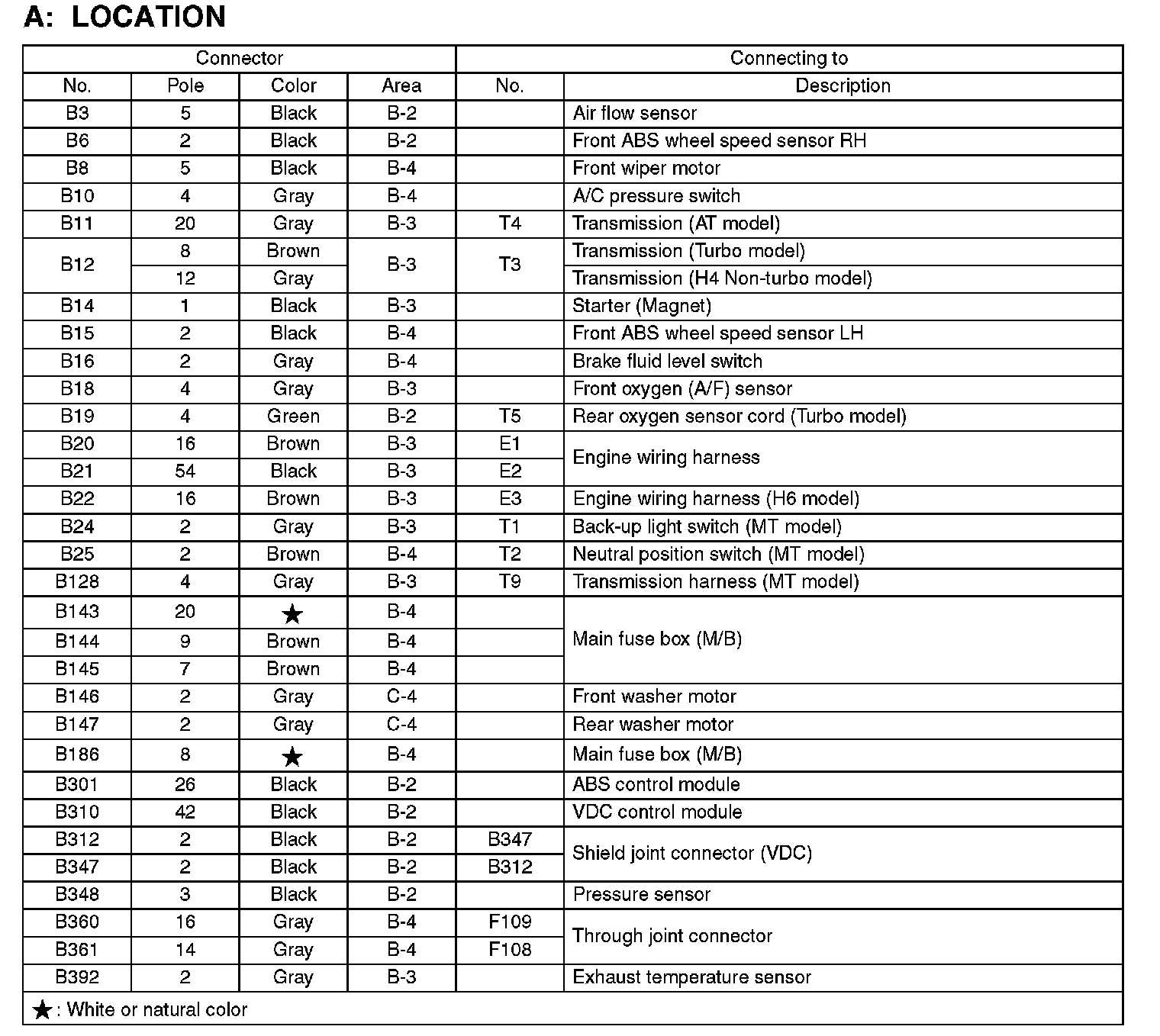

B3-B392:

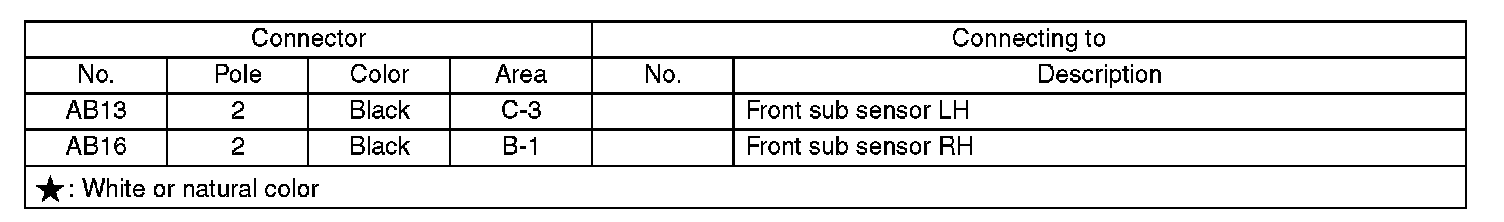

AB13-AB16:

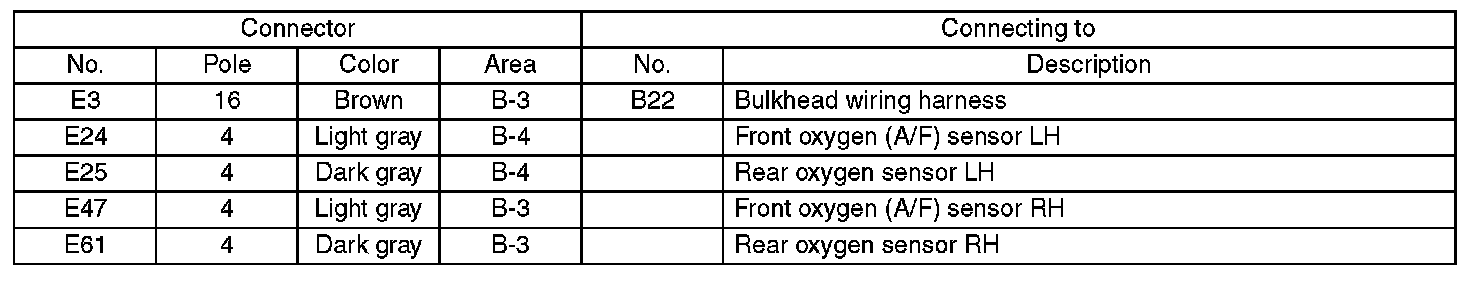

E3-E61:
Area View:
